High Beam Headlight Circuit [08/2015 - ]: Wiring Diagram

  1. for LED Headlight:

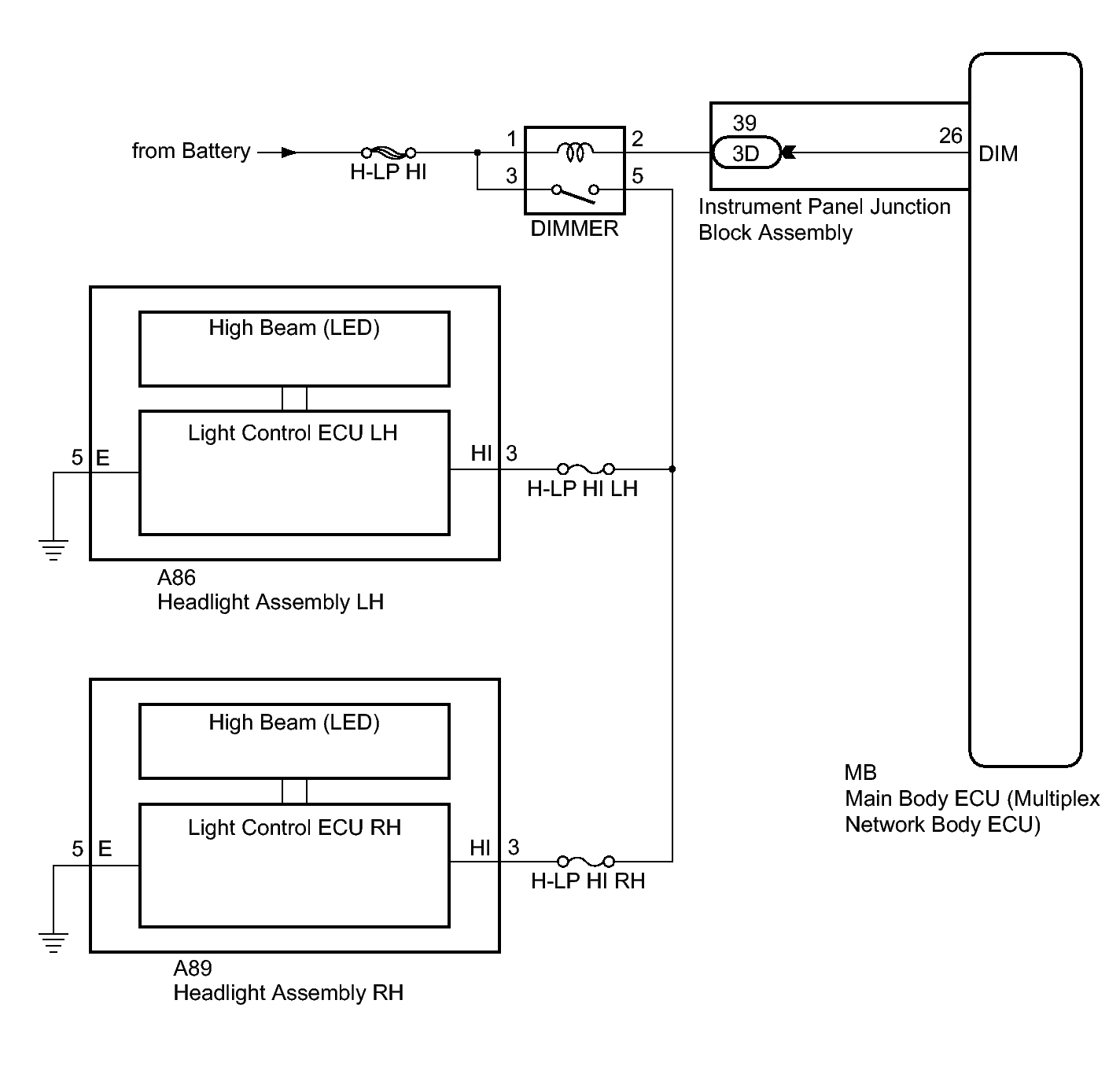

    Fig 1: High Beam Headlight Wiring Diagram - LED Headlight
    GTY608094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. for Halogen Headlight:
    Fig 2: High Beam Headlight Wiring Diagram - Halogen Headlight
    GTY476575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
