Parts Location [08/2015 - ]: Illustration

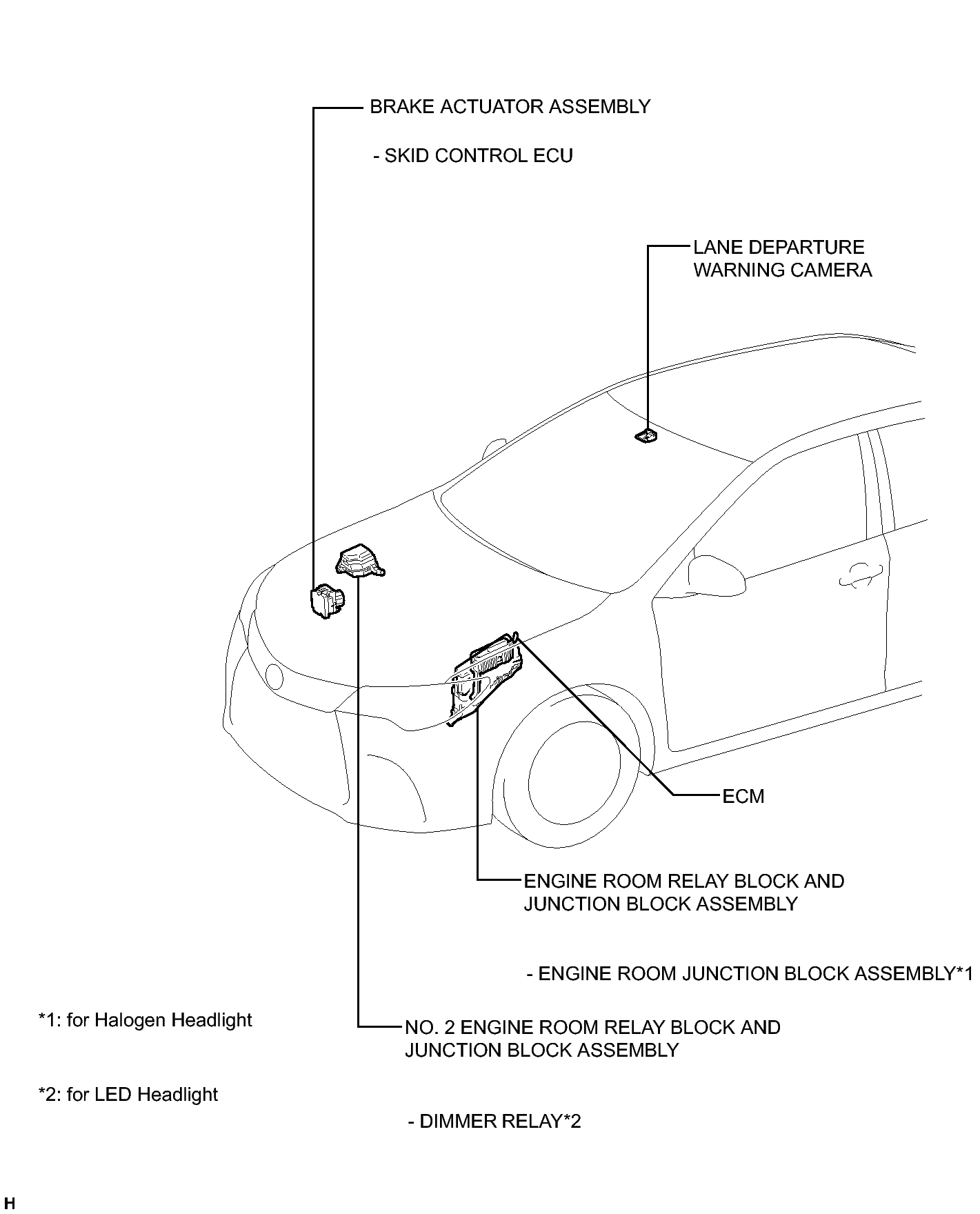

Fig 1: Automatic High Beam System Components Location (1 Of 2)
GTY475473Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

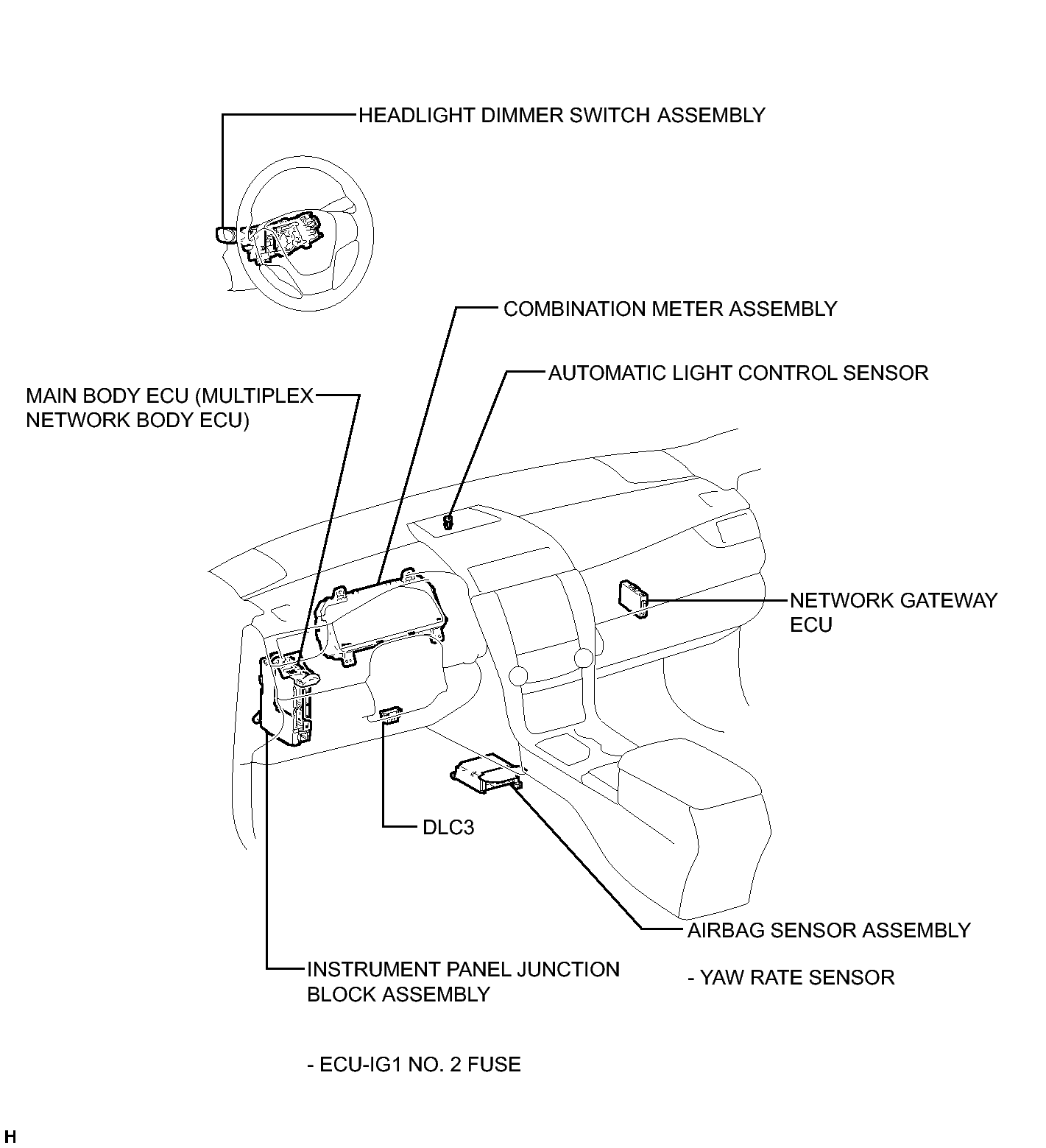

Fig 1: Automatic High Beam System Components Location (2 Of 2)
GTY481429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
