DTC B15C3: Speaker Output Short [08/2015 - ]: Wiring Diagram

  1. for 6 Speakers

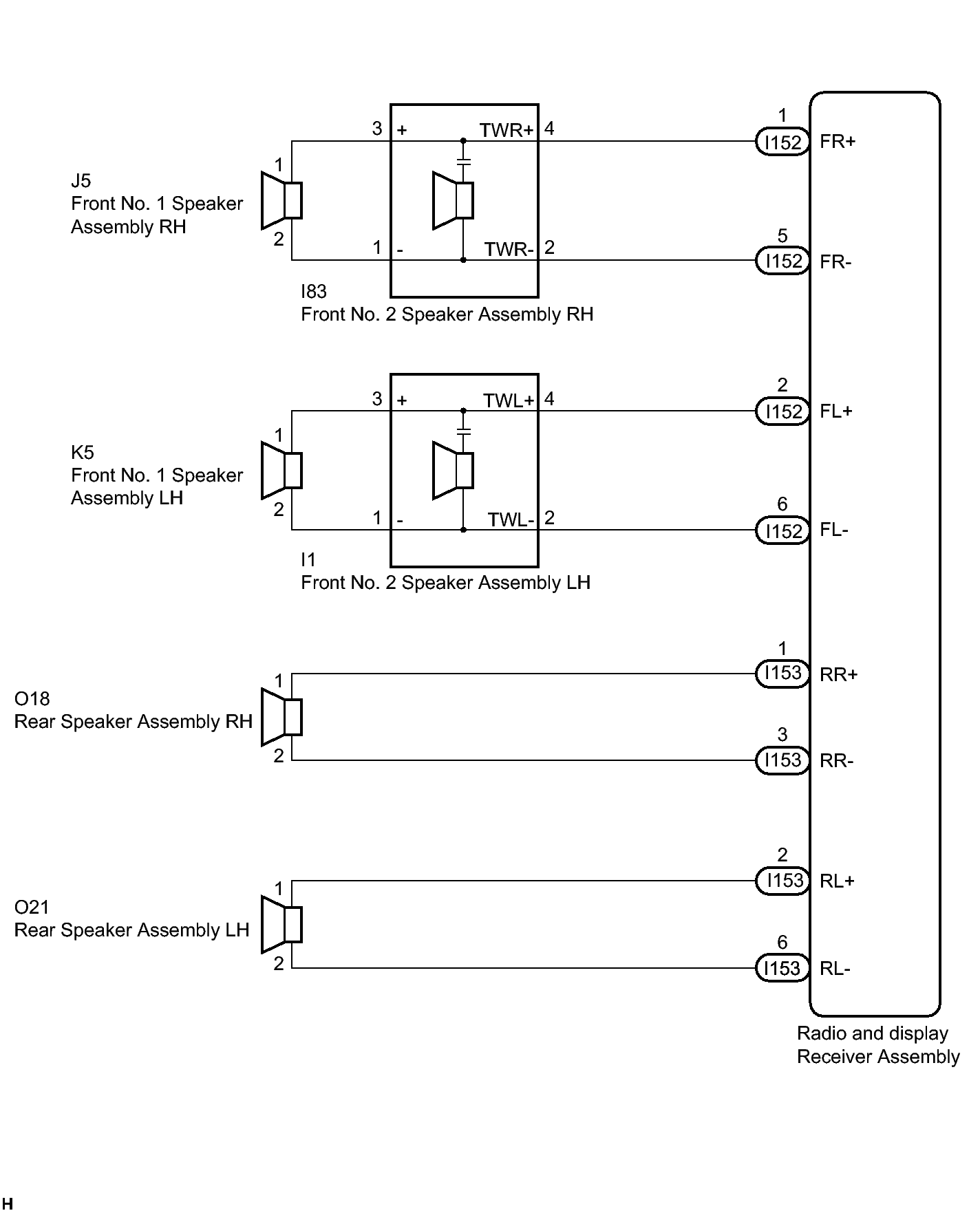

    Fig 1: Speaker (6 Speakers) Wiring Diagram
    GTY567909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. for 10 Speakers
    Fig 2: Speaker (10 Speakers) Wiring Diagram (1 Of 2)
    GTY427681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Fig 3: Speaker (10 Speakers) Wiring Diagram (2 Of 2)
    GTY427983Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
