Steering Pad Switch Circuit [08/2015 - ]: Wiring Diagram

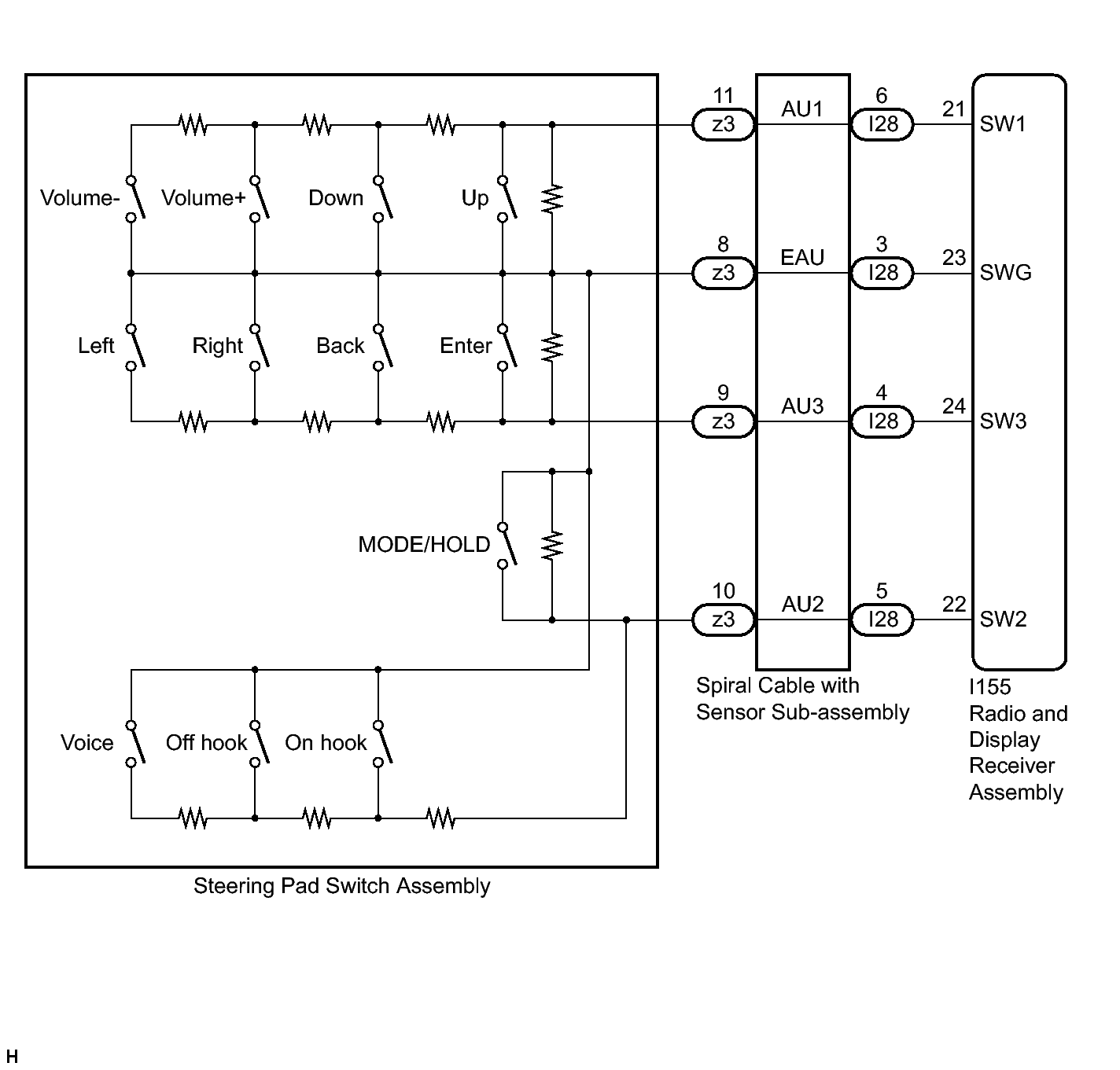

Fig 1: Steering Pad Switch Wiring Diagram

GTY473395

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
