DTC B15D3: Stereo Component Amplifier Disconnected [08/2015 - ]: Wiring Diagram

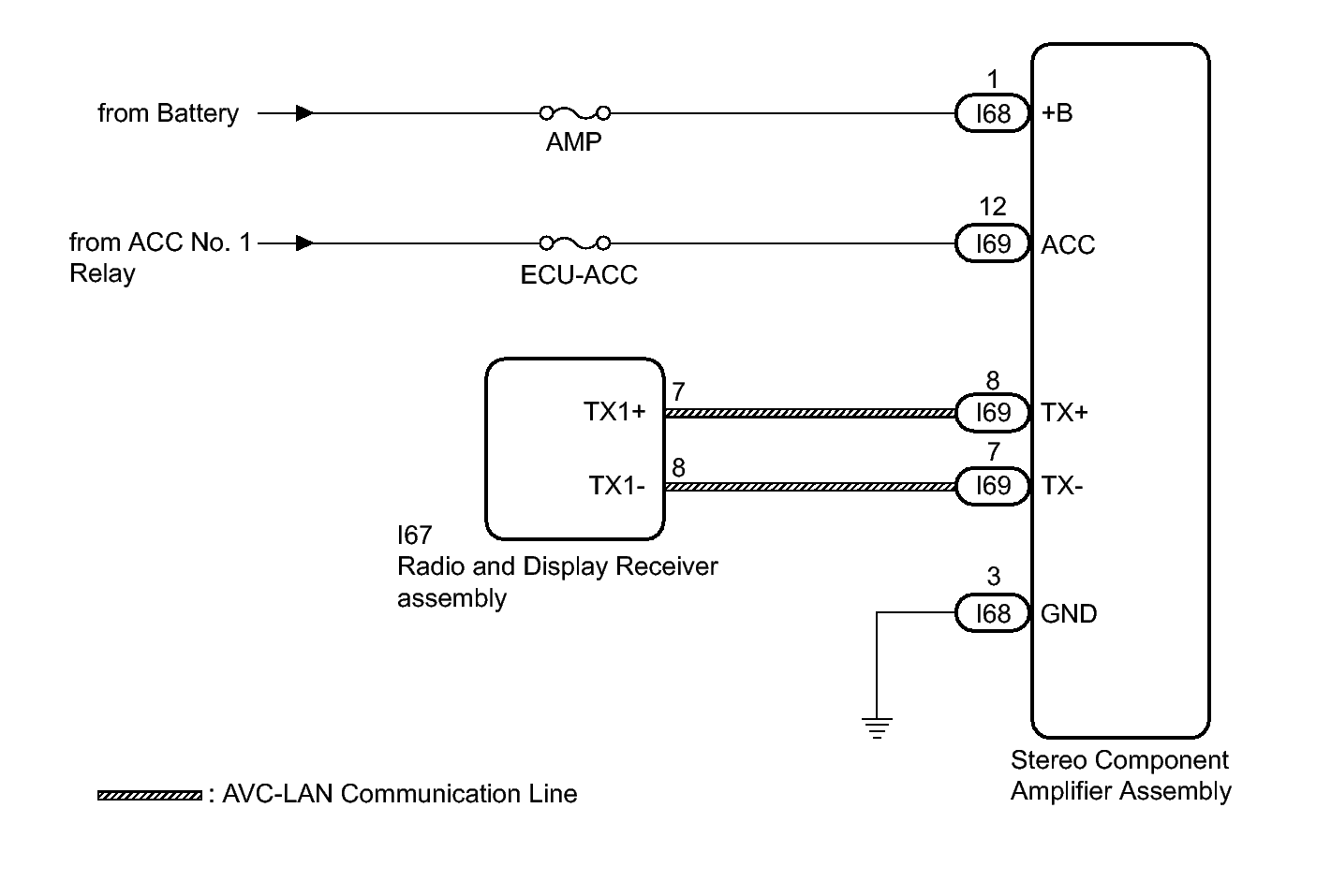

Fig 1: Stereo Component Amplifier Assembly And Radio And Display Receiver Assembly Wiring Diagram
GTY480812Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
