Vehicle Speed Signal Circuit between Radio Receiver and Combination Meter [08/2015 - ]: Wiring Diagram

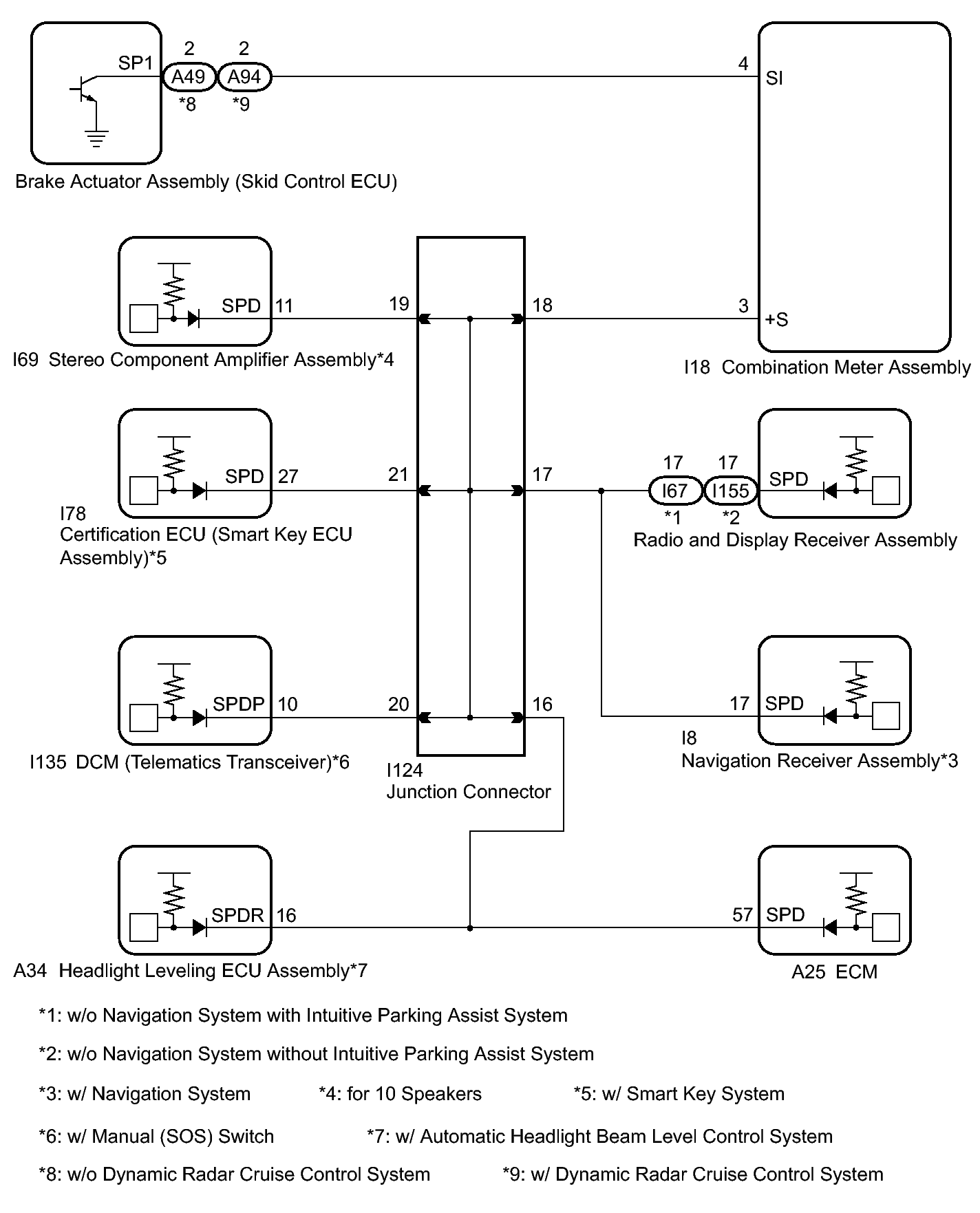

Fig 1: Vehicle Speed Signal Wiring Diagram

GTY567105

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
