Speaker Circuit [08/2015 - ]: Wiring Diagram

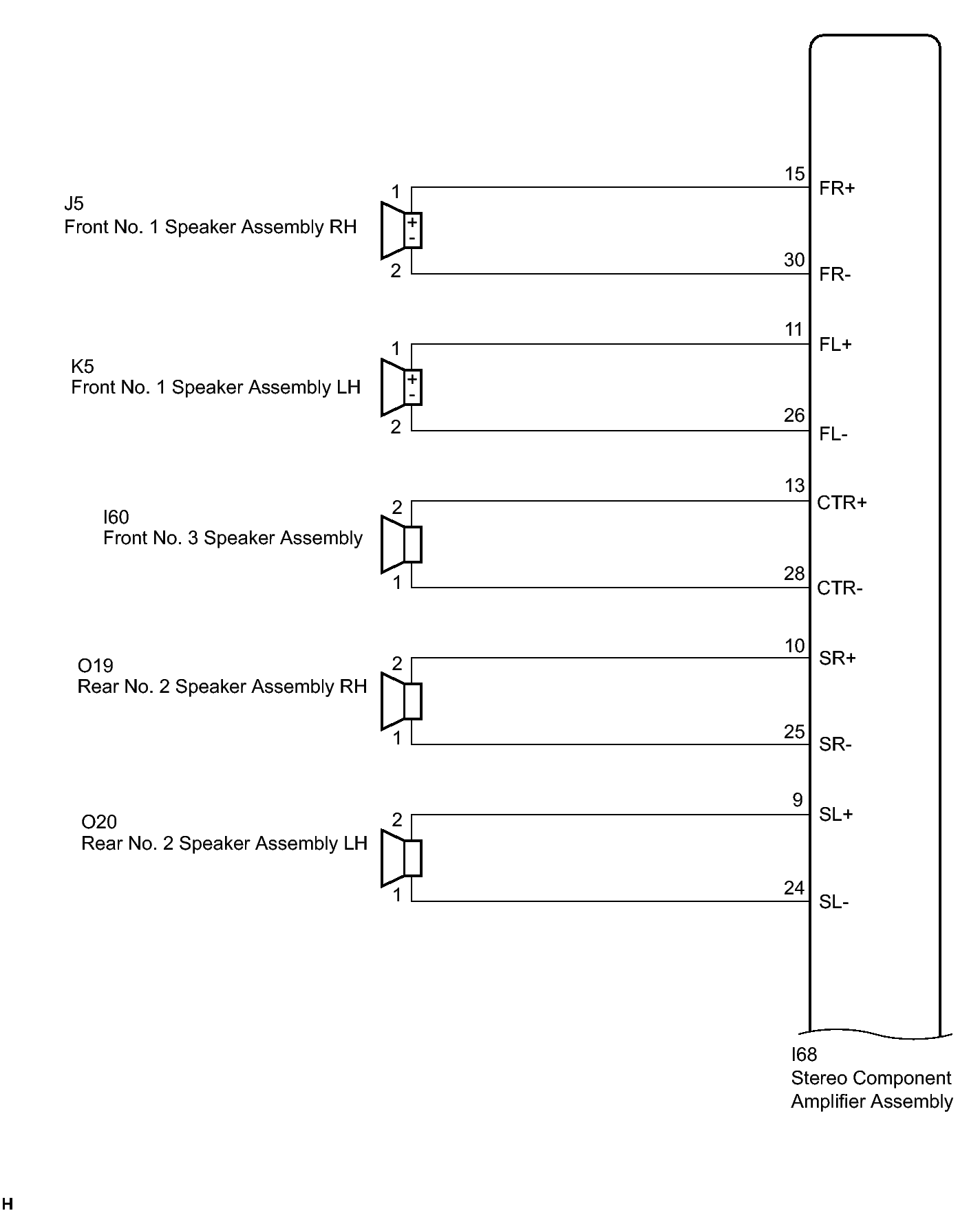

Fig 1: Stereo Component Amplifier Circuit Diagram (1 Of 2)
GTY481002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Stereo Component Amplifier Circuit-Wiring Diagram (2 Of 2)
GTY427983Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
