DTC B2325: LIN Communication Bus Malfunction [08/2015 - ]: Wiring Diagram

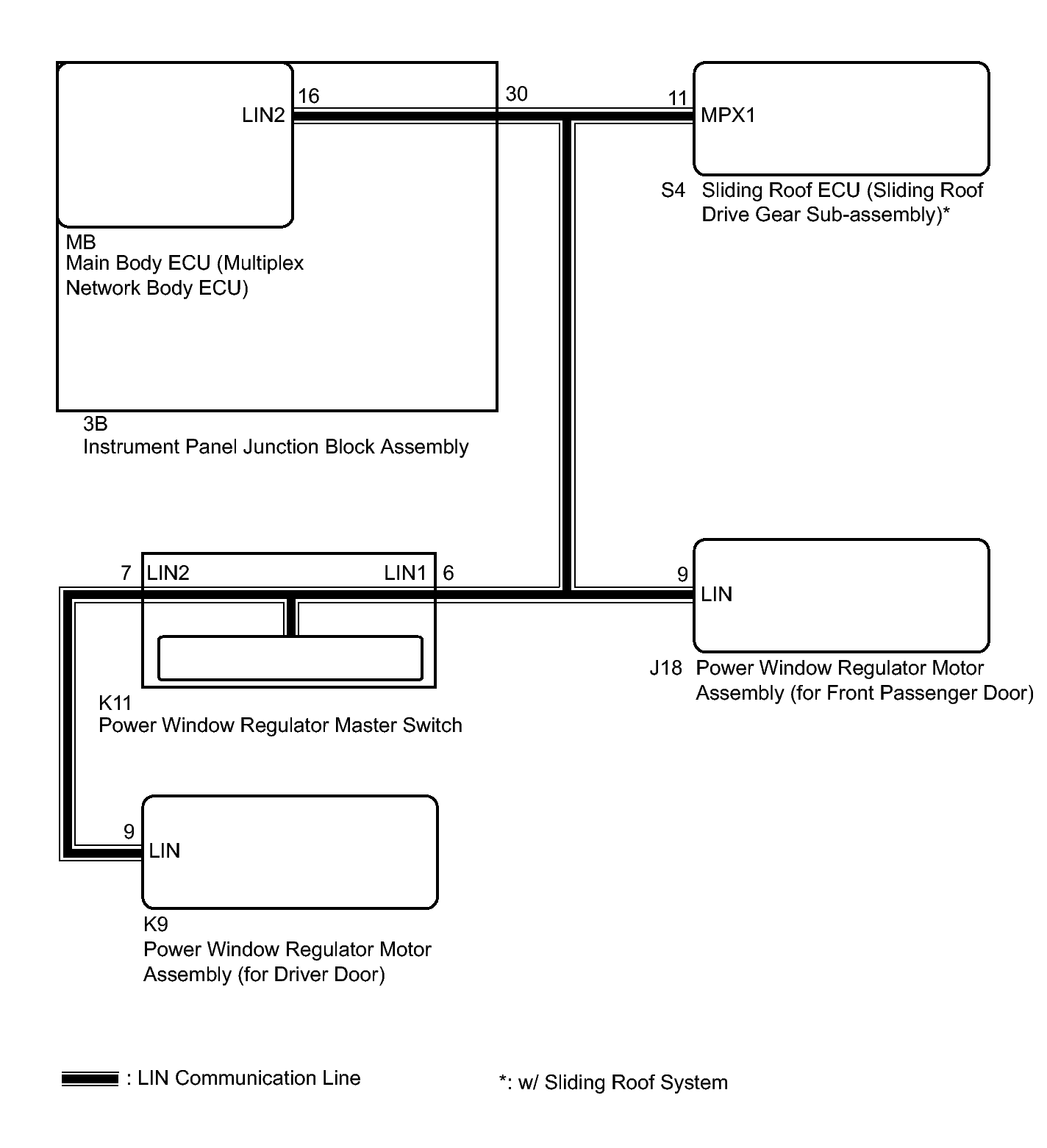

Fig 1: LIN Communication Bus Wiring Diagram

GTY472388

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
