DTC B2321: Driver Side Door ECU Communication Stop [08/2015 - ]: Wiring Diagram

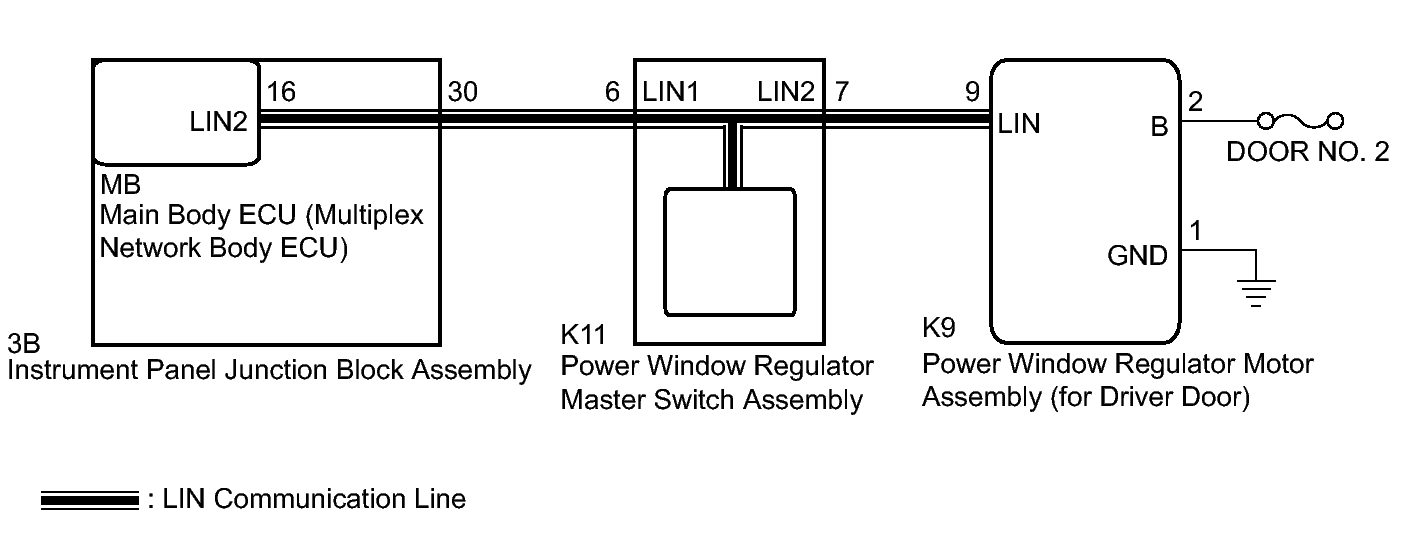

Fig 1: Power Window Regulator Master Switch And Power Window Regulator Motor Assembly (For Driver Door) Wiring Diagram
GTY481496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
