Steering Angle Sensor Communication Stop Mode [08/2015 - ]: Wiring Diagram

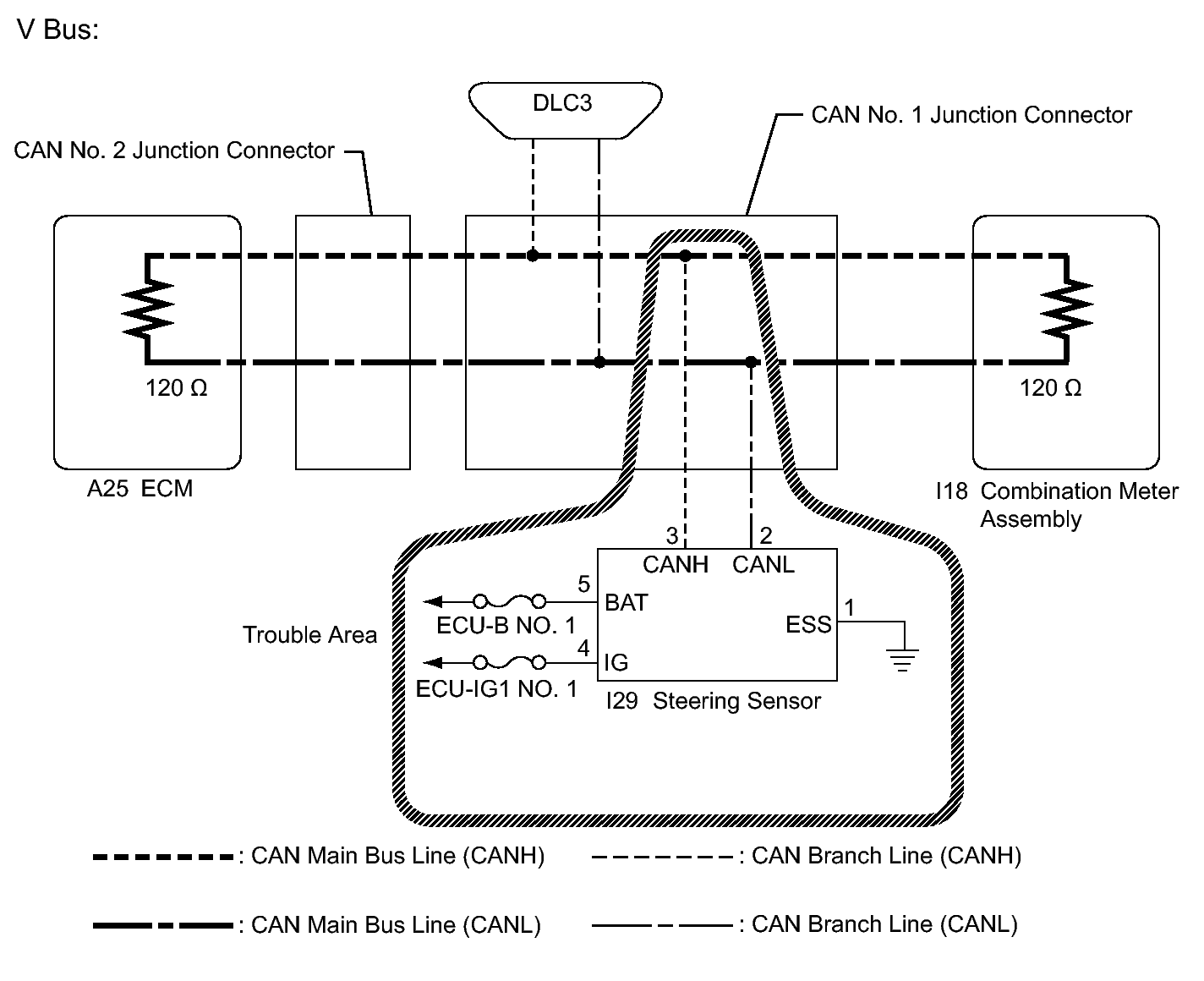

Fig 1: Steering Angle Sensor Circuit - Wiring Diagram

GTY322029

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
