Skid Control ECU Communication Stop Mode [08/2015 - ]: Wiring Diagram

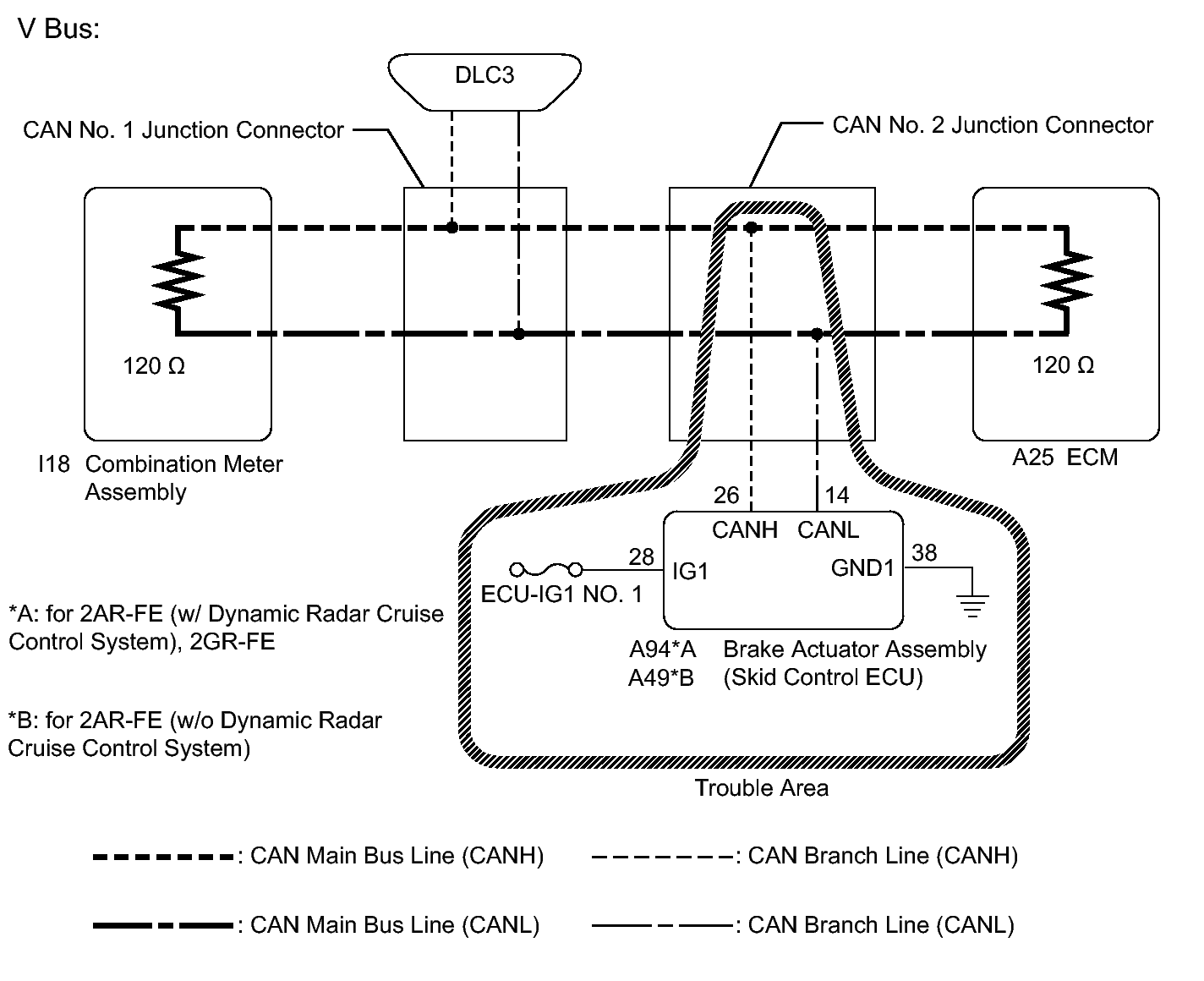

Fig 1: Skid Control ECU Wiring Diagram

GTY473540

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
