Power Steering ECU Communication Stop Mode [08/2015 - ]: Wiring Diagram

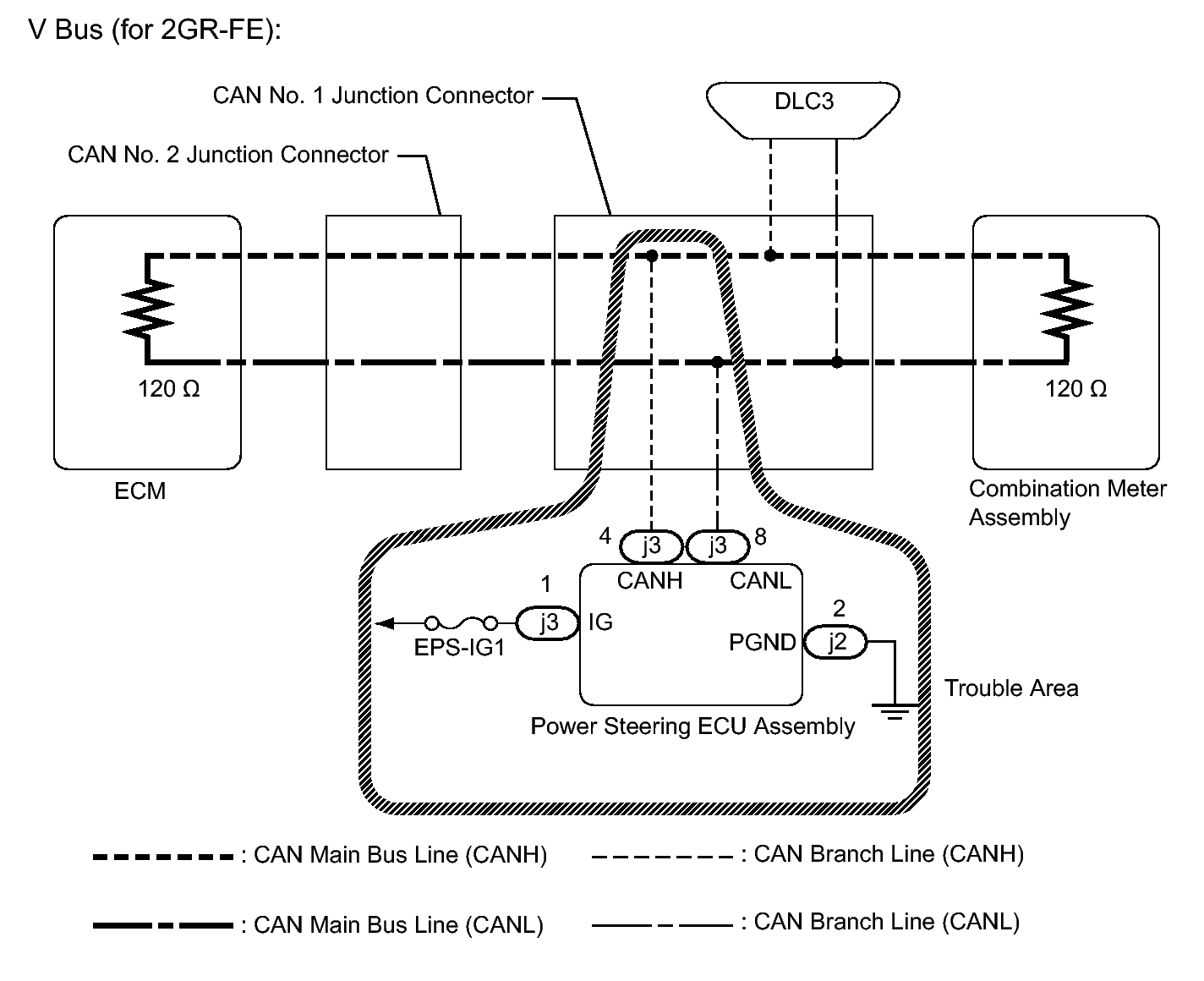

Fig 1: Power Steering ECU Wiring Diagram (2GR-FE)
GTY478140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

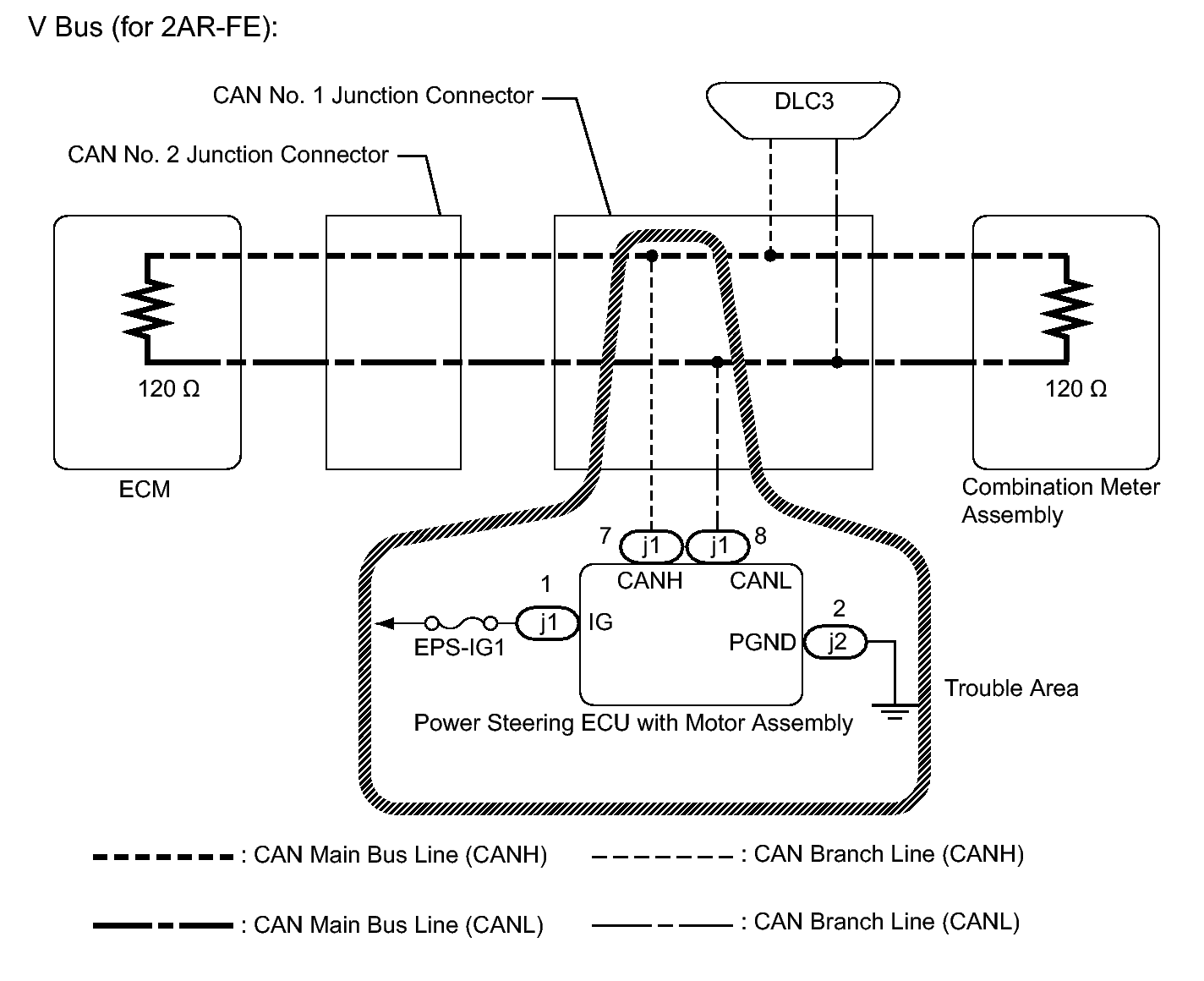

Fig 2: Power Steering ECU Wiring Diagram (2AR-FE)
GTY478141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
