Main Body ECU Communication Stop Mode [08/2015 - ]: Wiring Diagram

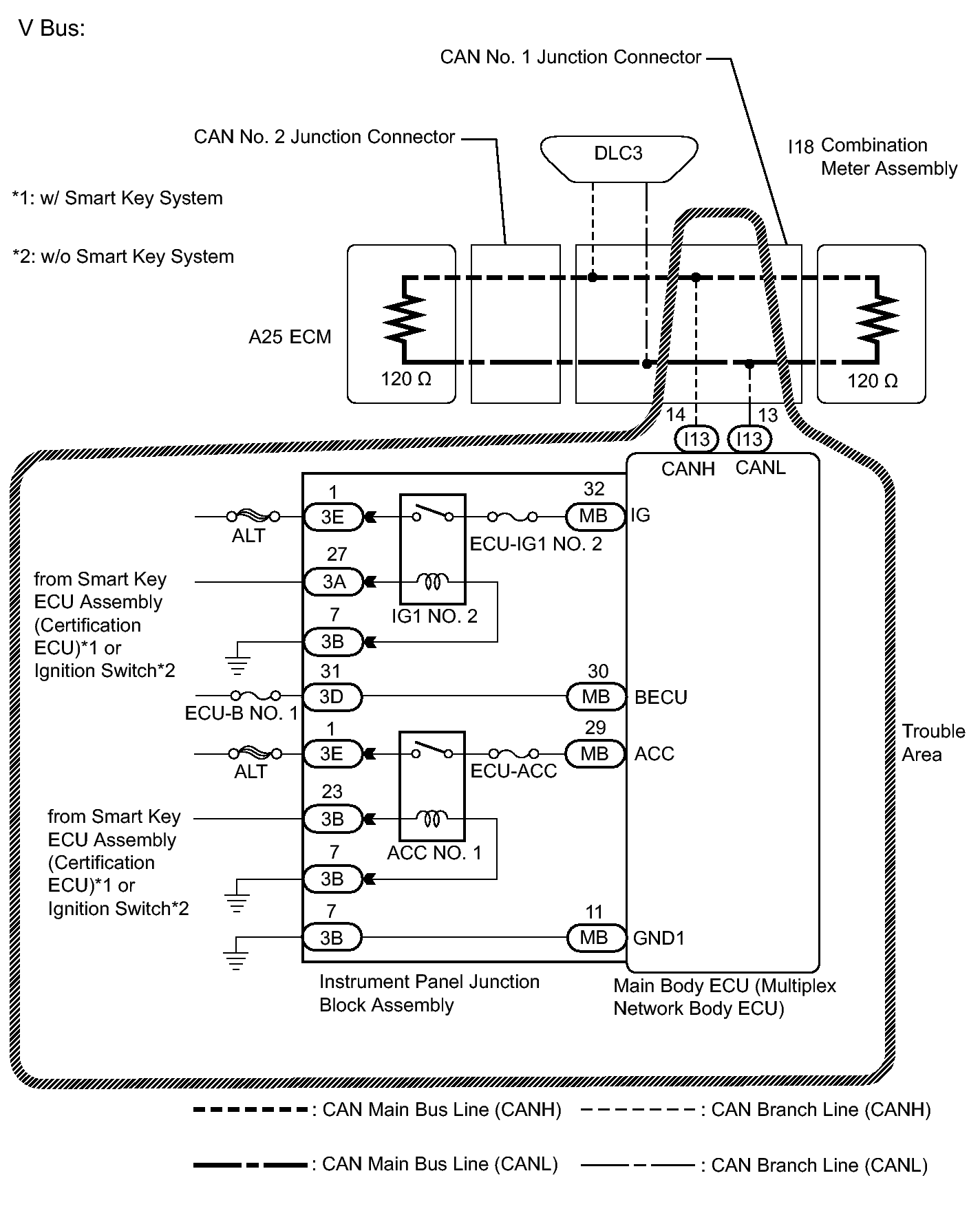

Fig 1: ECU (Multiplex network body ECU) - Wiring Diagram

GTY382553

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
