Check CAN Bus Lines for Short Circuit [08/2015 - ]: Wiring Diagram

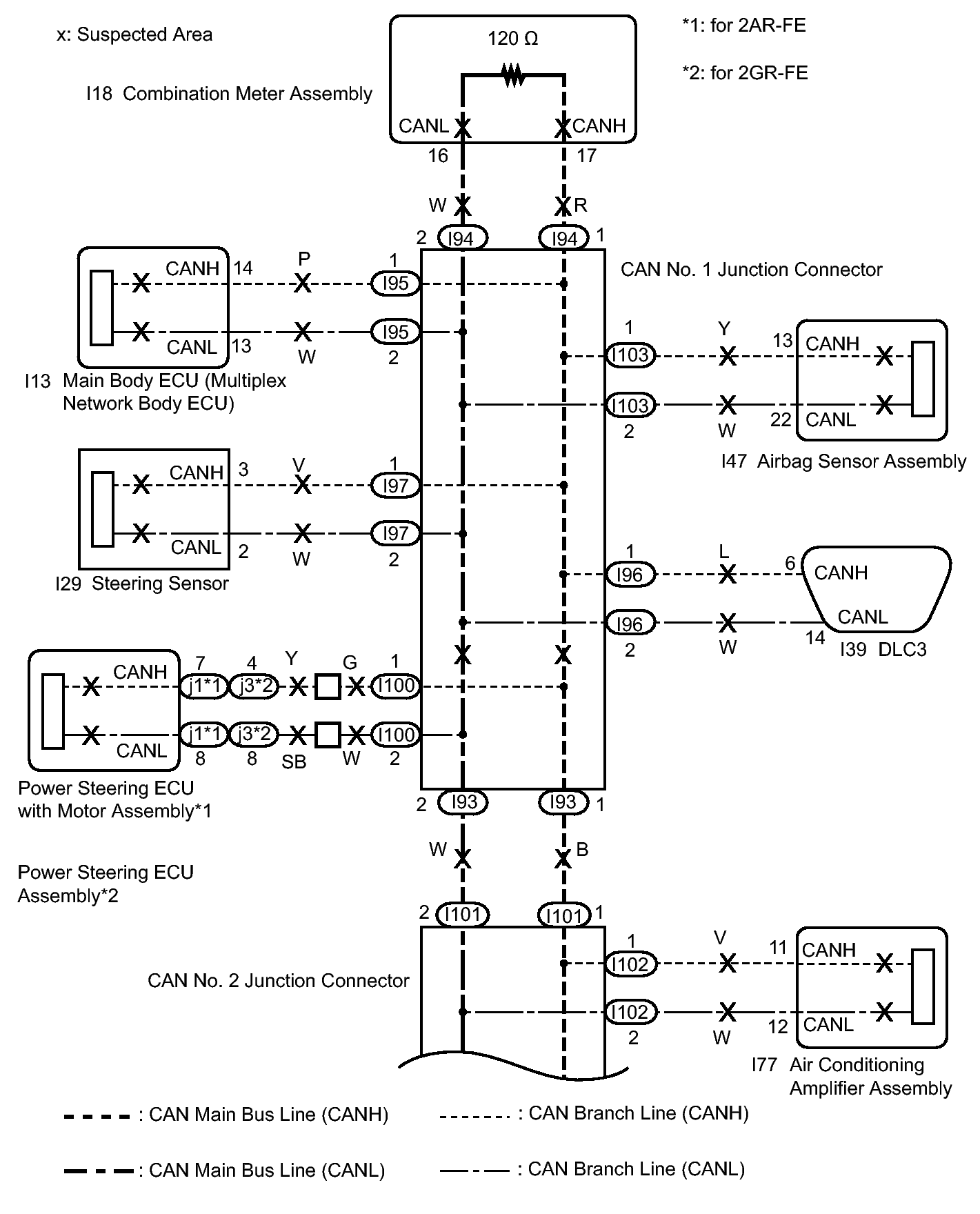

Fig 1: CAN Bus Lines (1 Of 2)
GTY585224Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

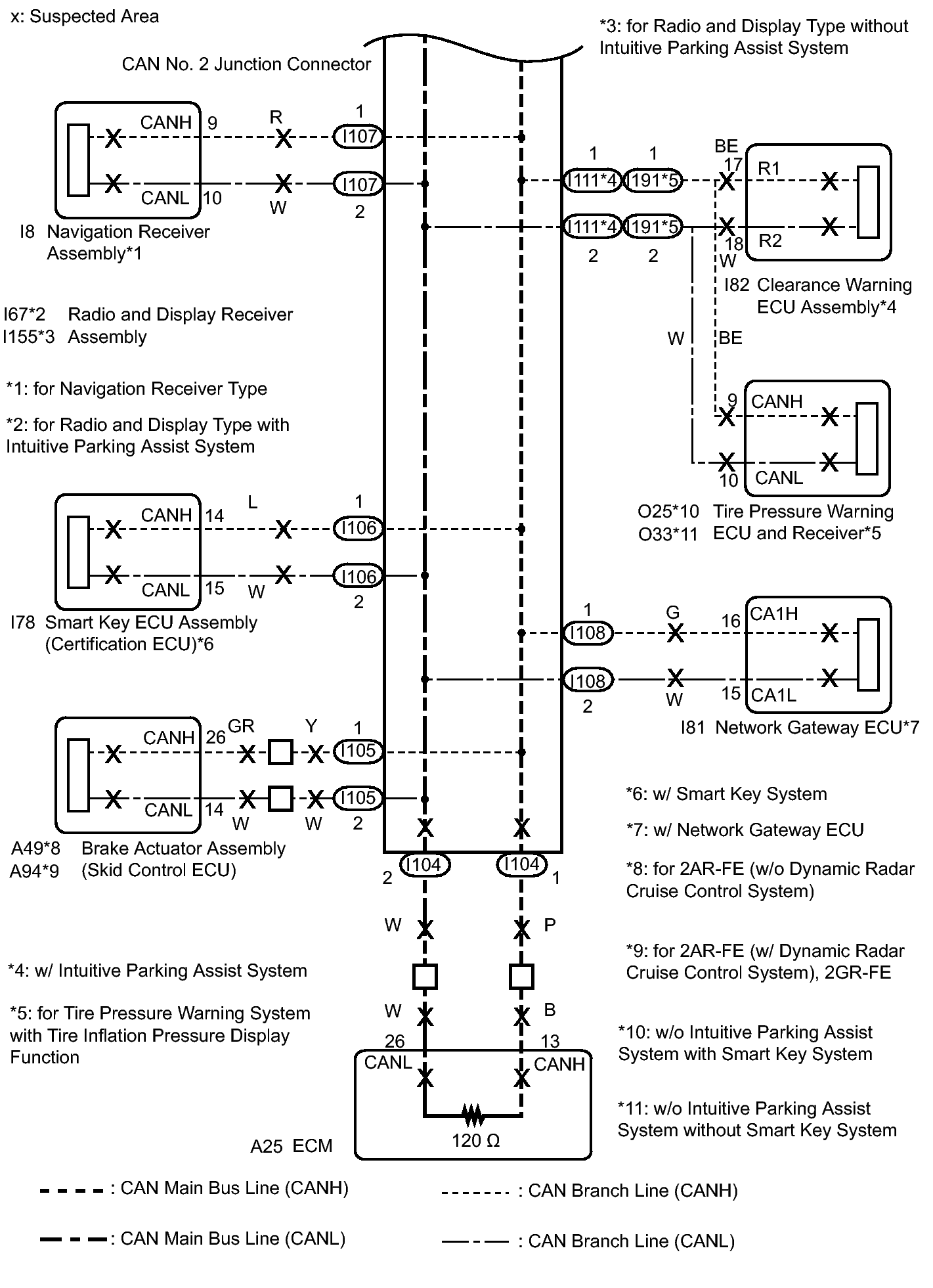

Fig 2: CAN Bus Lines (2 Of 2)
GTY540169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
