Audio Receiver Assembly Communication Stop Mode [08/2015 - ]: Wiring Diagram

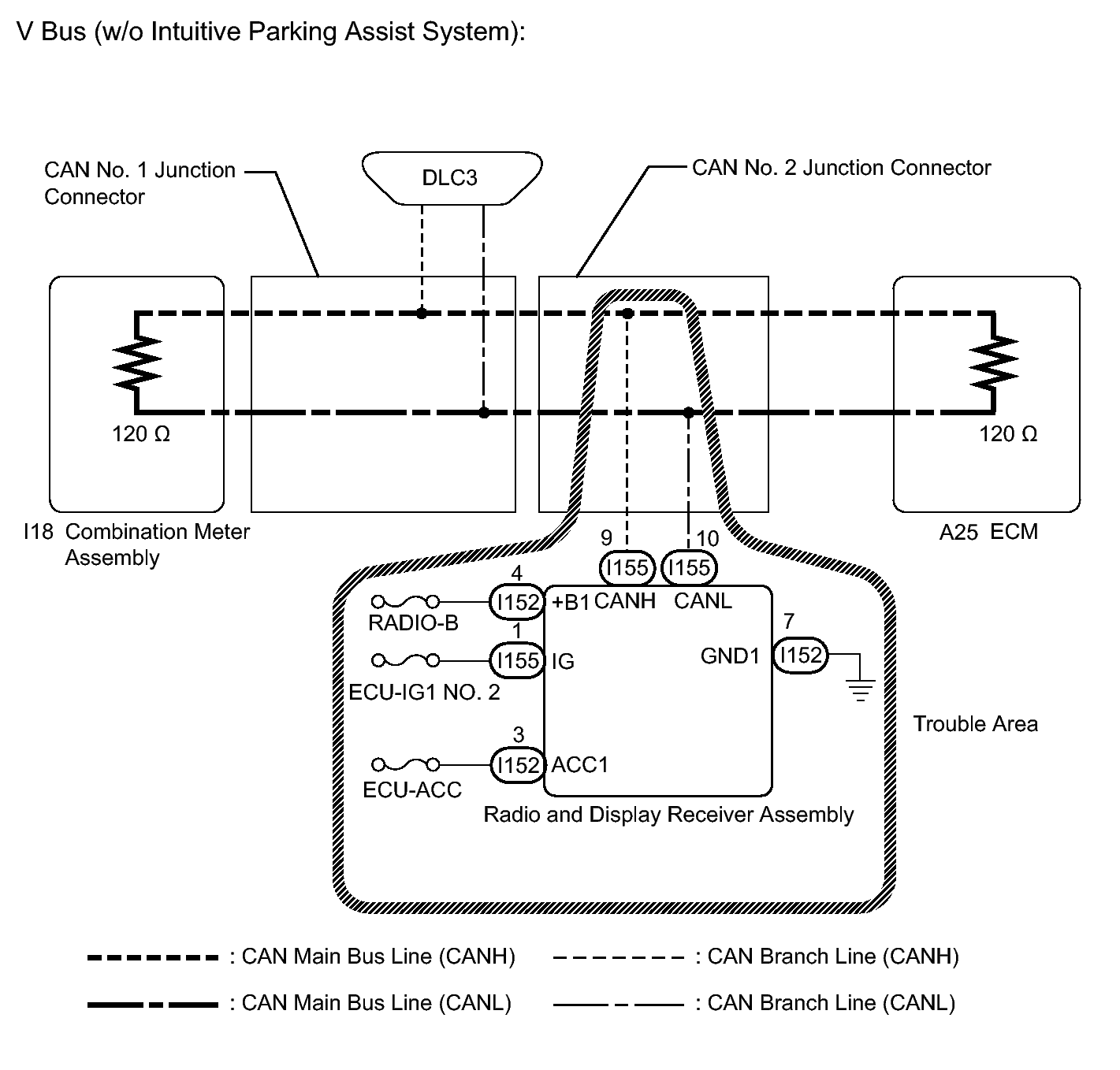

Fig 1: Radio And Display Receiver Assembly Wiring Diagram - W/O Intuitive Parking Assist
GTY590200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

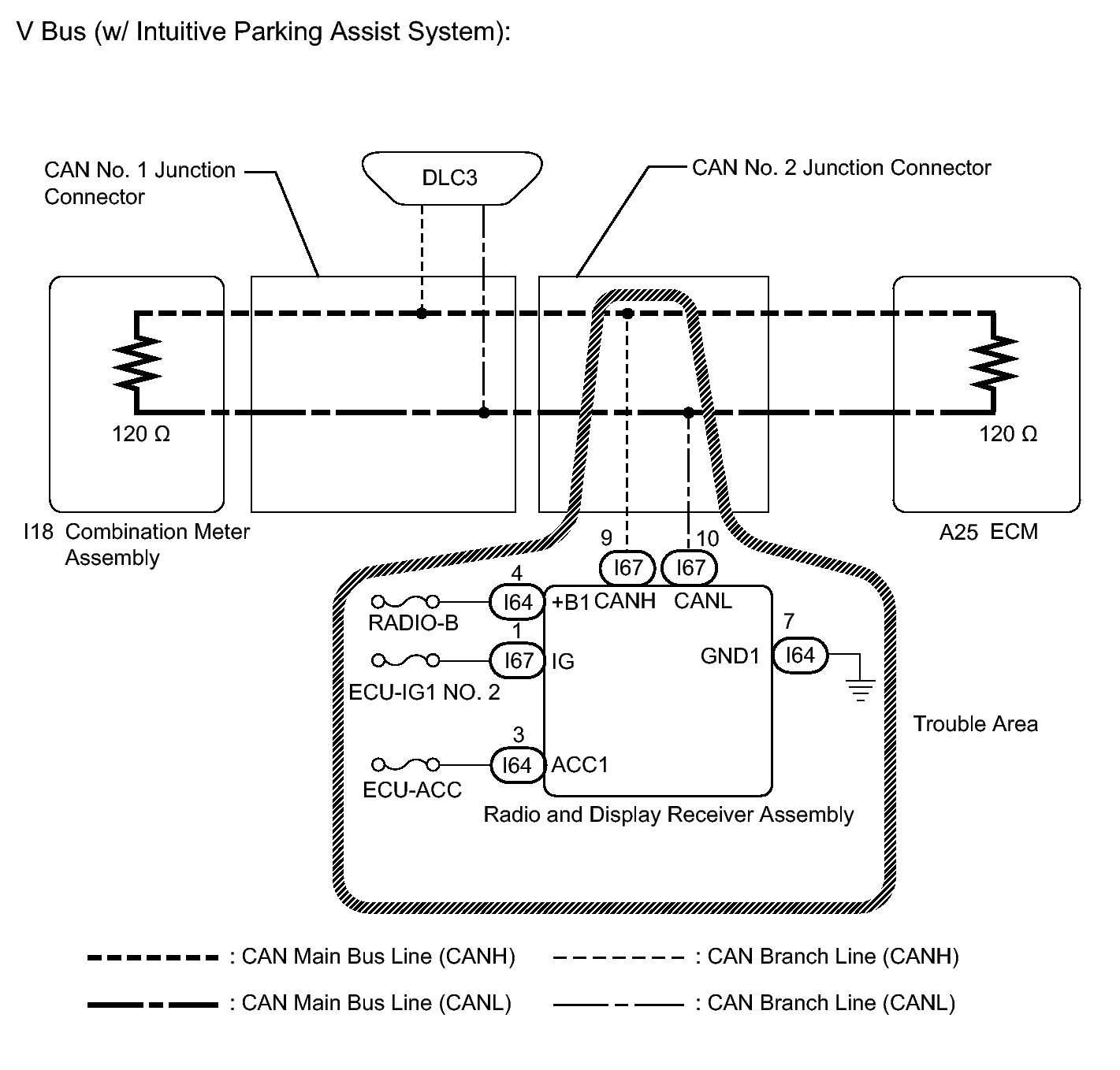

Fig 2: Radio And Display Receiver Assembly Wiring Diagram - W/ Intuitive Parking Assist
GTY590199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
