DTC U1002: Lost Communication with Gateway Module (Network Gateway ECU); DTC U0265: Lost Communication with Parking Assist Monitor Module [08/2015 - ]: Wiring Diagram

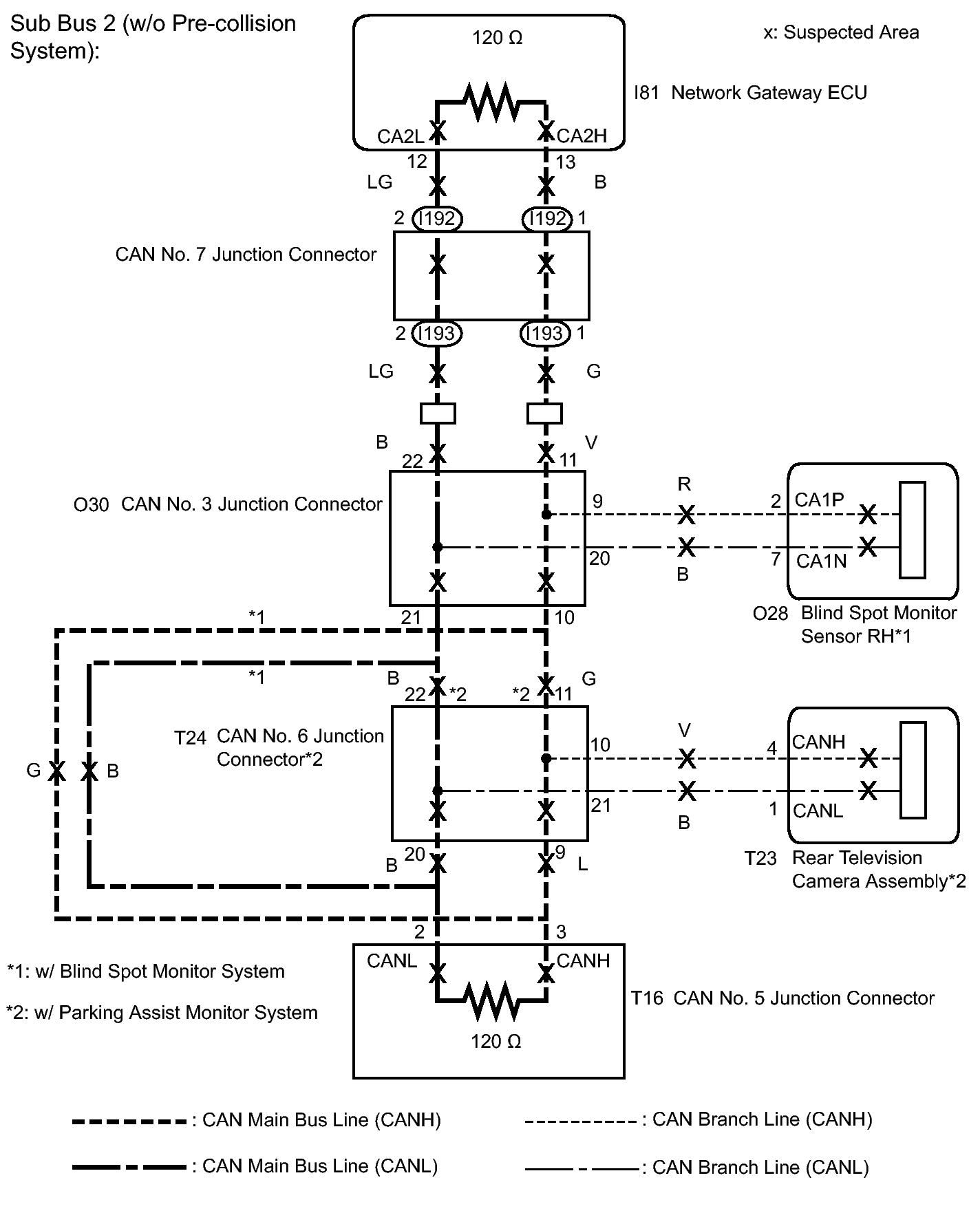

Fig 1: Sub Bus 2 W/O Pre-Collision Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

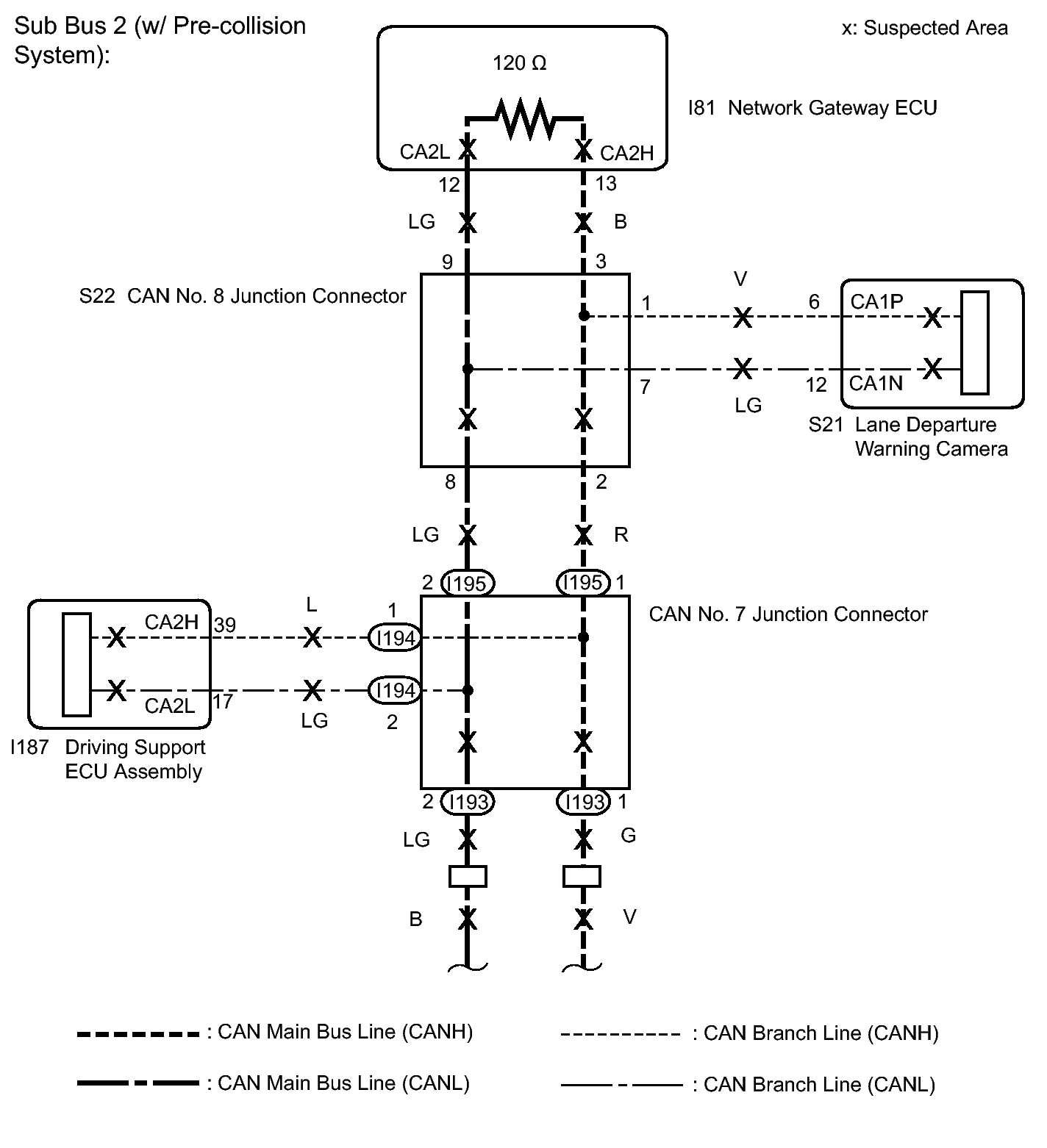

Fig 2: Sub Bus 2 W/ Pre-Collision Wiring Diagram (1 Of 2)

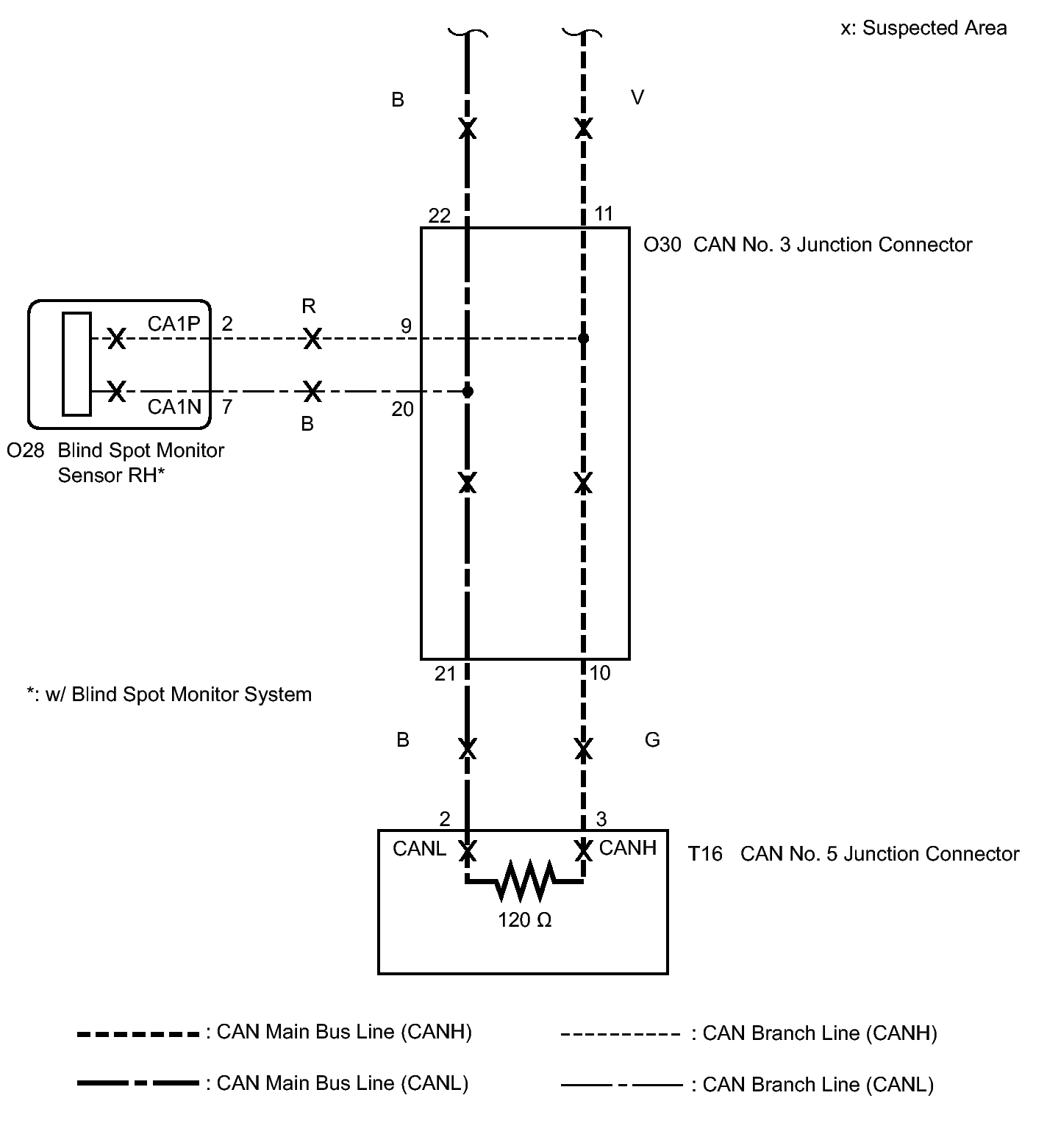

Fig 3: Sub Bus 2 W/ Pre-Collision Wiring Diagram (2 Of 2)
