DTC U023A: Lost Communication with Front Camera Module [08/2015 - ]: Wiring Diagram

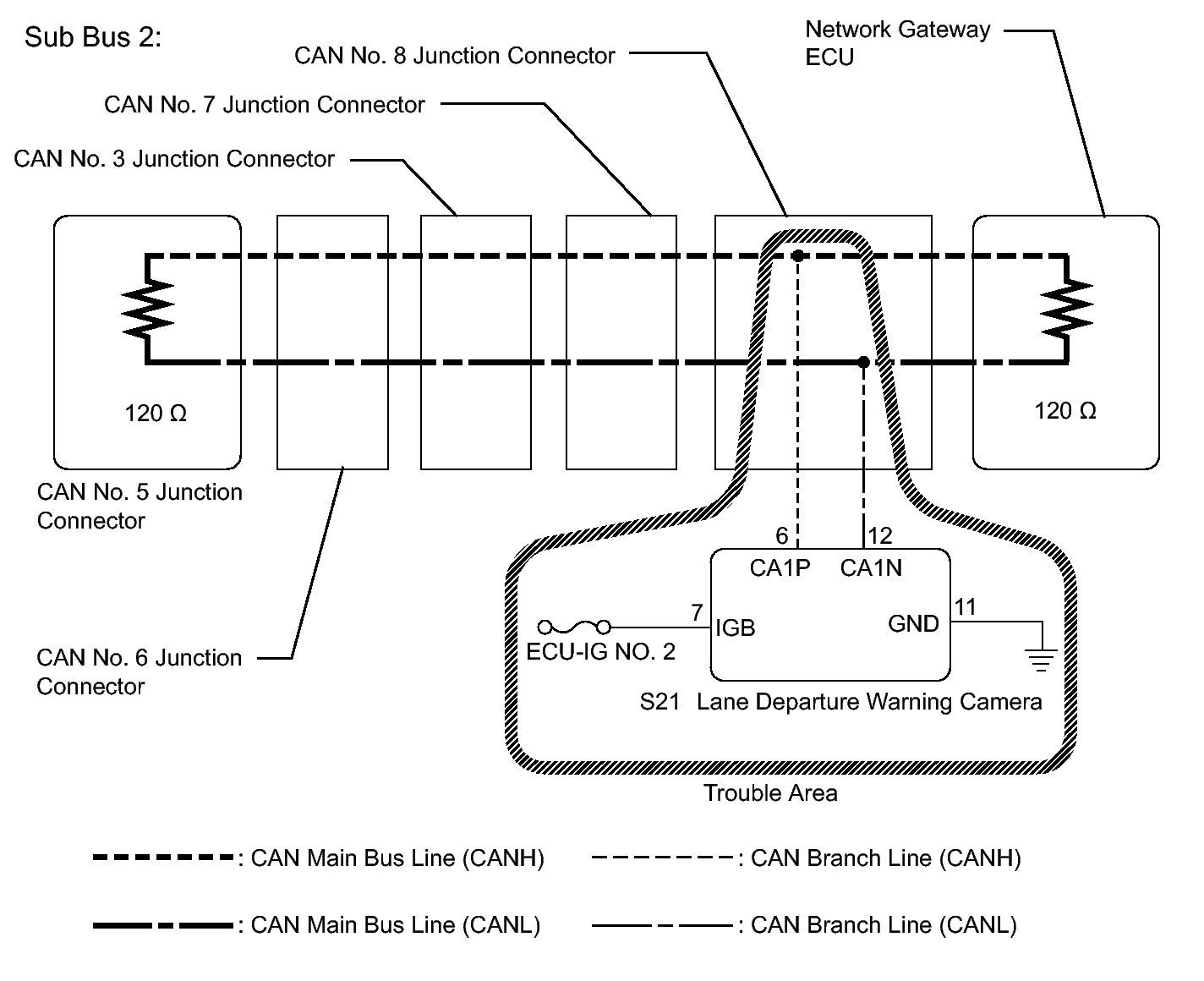

Fig 1: Front Camera Module Wiring Diagram

GTY474432

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
