DTC U0233: Lost Communication with Blind Spot Monitor Master Module [08/2015 - ]: Wiring Diagram

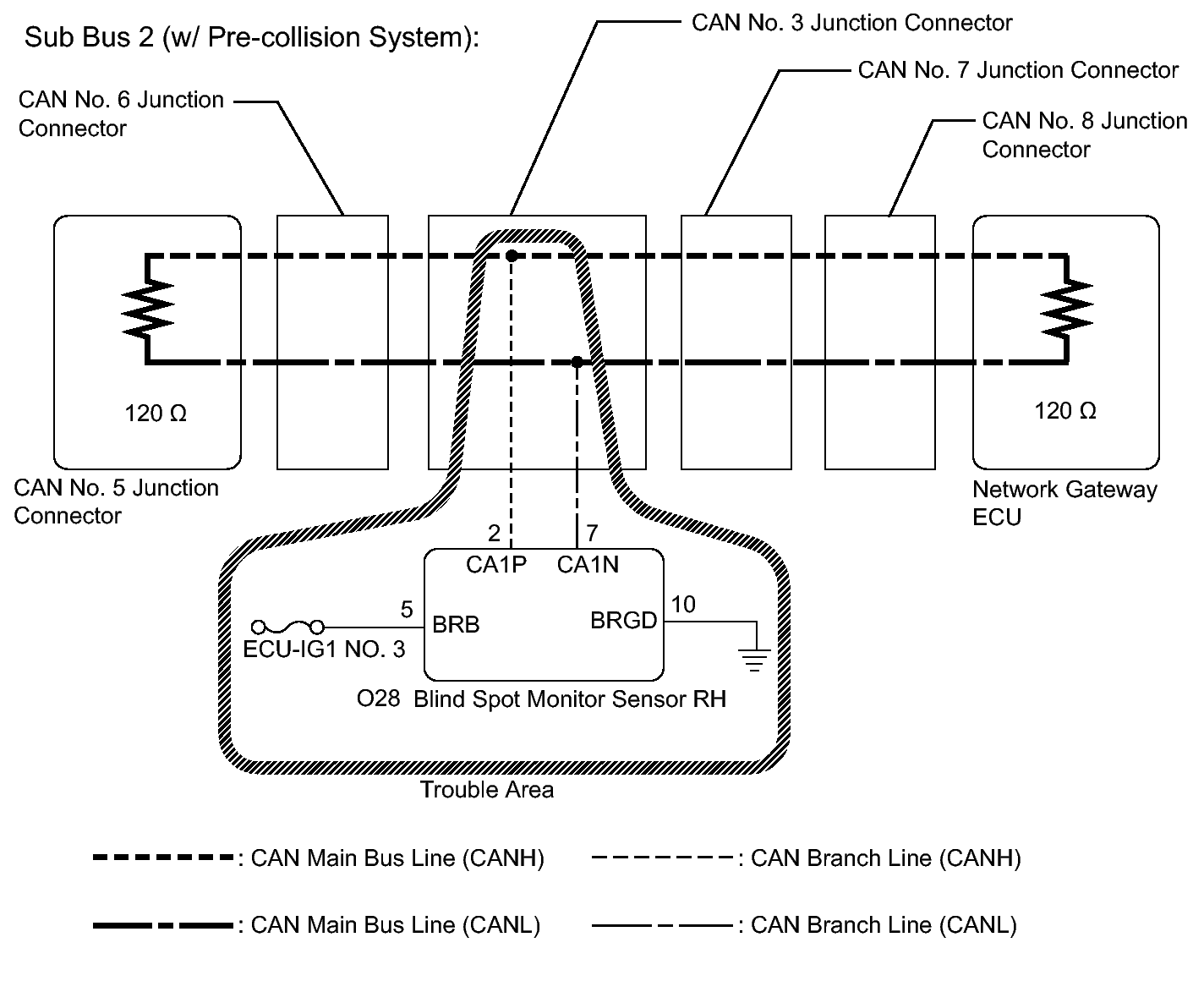

Fig 1: Blind Spot Monitor Master Module Wiring Diagram (1 Of 2)
GTY475439Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

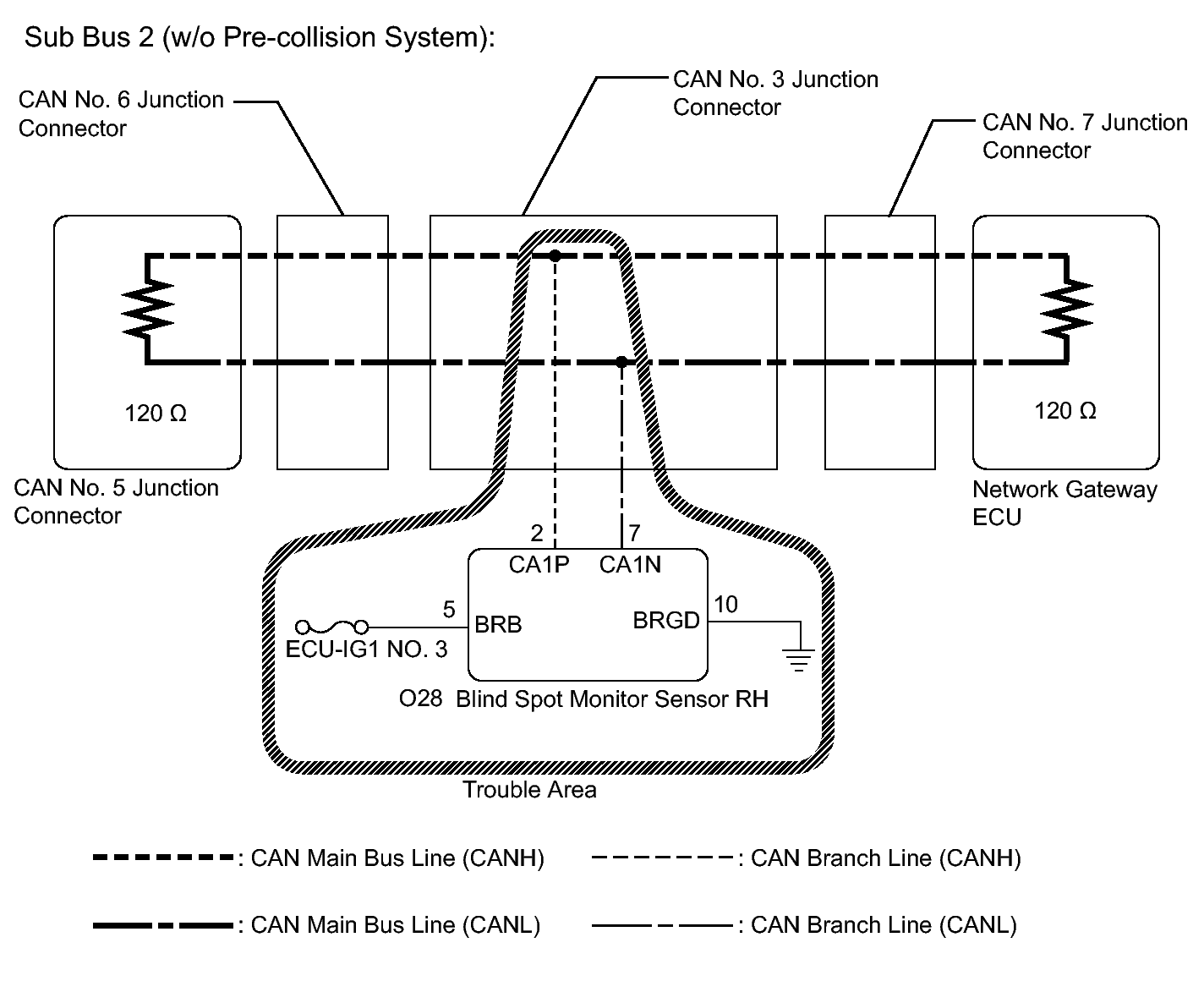

Fig 2: Blind Spot Monitor Master Module Wiring Diagram (2 Of 2)
GTY474233Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
