DTC B1625/22: Side Airbag Sensor LH Circuit Malfunction [10/2014 - ]: Procedure
- CHECK CONNECTORS
- Turn the engine switch off.
- Disconnect the cable from the negative (-) battery terminal.WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
- Check that the connectors are properly connected to the airbag ECU assembly, side airbag sensor assembly LH and side No. 2 airbag sensor assembly LH.
OK
The connectors are properly connected.
HINT:
If the connectors are not properly connected, reconnect the connectors and proceed to the next inspection.
- Disconnect the connectors from the airbag ECU assembly, side airbag sensor assembly LH and side No. 2 airbag sensor assembly LH.
- Check that the terminals of the connectors are not damaged.
OK
The terminals are not deformed or damaged.
Result:
NG
REPLACE FLOOR WIRE
Result:
OK
See step 2
- CHECK FLOOR WIRE (OPEN)

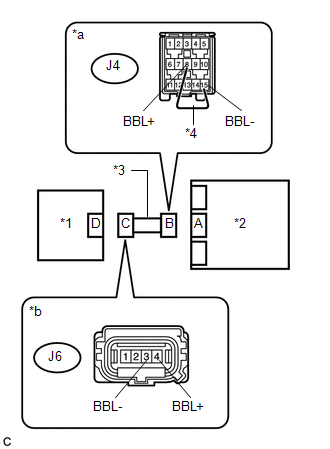

- Using a service wire, connect terminals 8 (BBL+) and 15 (BBL-) of connector B.TEXT IN ILLUSTRATION
*1 Side Airbag Sensor Assembly LH *2 Airbag ECU Assembly *3 Floor Wire *4 Service Wire *a Front view of wire harness connector
(to Airbag ECU Assembly)*b Front view of wire harness connector
(to Side Airbag Sensor Assembly LH)NOTE:Do not forcibly insert the service wire into the terminals of the connector when connecting the wire.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition J6-4 (BBL+) -J6-3 (BBL-) Always Below 1 Ω - Disconnect the service wire from connector B.
Result:
NG
REPLACE FLOOR WIRE
Result:
OK
See step 3
- Using a service wire, connect terminals 8 (BBL+) and 15 (BBL-) of connector B.
- CHECK FLOOR WIRE (SHORT)
- Measure the resistance according to the value(s) in the table below.TEXT IN ILLUSTRATION
*1 Side Airbag Sensor Assembly LH *2 Airbag ECU Assembly *3 Floor Wire *a Front view of wire harness connector
(to Side Airbag Sensor Assembly LH)Standard Resistance
Tester Connection Condition Specified Condition J6-4 (BBL+) - J6-3 (BBL-) Always 1 MΩ or higher
Result:
NG
REPLACE FLOOR WIRE
Result:
OK
See step 4
- Measure the resistance according to the value(s) in the table below.
- CHECK FLOOR WIRE (SHORT TO B+)
- Connect the cable to the negative (-) battery terminal.TEXT IN ILLUSTRATION
*1 Side Airbag Sensor Assembly LH *2 Airbag ECU Assembly *3 Floor Wire *a Front view of wire harness connector
(to Side Airbag Sensor Assembly LH) - Turn the engine switch on (IG).
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition J6-4 (BBL+) - Body ground Engine switch on (IG) Below 1 V J6-3 (BBL-) - Body ground Engine switch on (IG) Below 1 V - Turn the engine switch off.
- Disconnect the cable from the negative (-) battery terminal.WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
Result:
NG
REPLACE FLOOR WIRE
Result:
OK
See step 5
- Connect the cable to the negative (-) battery terminal.
- CHECK FLOOR WIRE (SHORT TO GROUND)
- Measure the resistance according to the value(s) in the table below.TEXT IN ILLUSTRATION
*1 Side Airbag Sensor Assembly LH *2 Airbag ECU Assembly *3 Floor Wire *a Front view of wire harness connector
(to Side Airbag Sensor Assembly LH)Standard Resistance
Tester Connection Condition Specified Condition J6-4 (BBL+) - Body ground Always 1 MΩ or higher J6-3 (BBL-) - Body ground Always 1 MΩ or higher
Result:
NG
REPLACE FLOOR WIRE
Result:
OK
See step 6
- Measure the resistance according to the value(s) in the table below.
- CHECK FLOOR WIRE (OPEN)

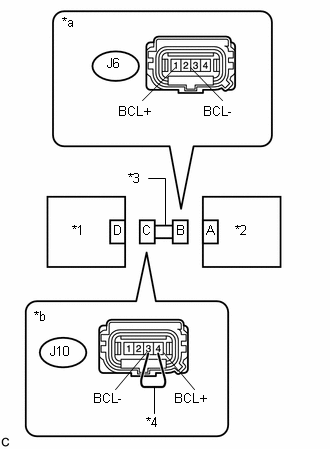

- Using a service wire, connect terminals 4 (BCL+) and 3 (BCL-) of connector C.TEXT IN ILLUSTRATION
*1 Side No. 2 Airbag Sensor Assembly LH *2 Side Airbag Sensor Assembly LH *3 Floor Wire *4 Service Wire *a Front view of wire harness connector
(to Side Airbag Sensor Assembly LH)*b Front view of wire harness connector
(to Side No. 2 Airbag Sensor Assembly LH)NOTE:Do not forcibly insert the service wire into the terminals of the connector when connecting the wire.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition J6-1 (BCL+) - J6-2 (BCL-) Always Below 1 Ω - Disconnect the service wire from connector C.
Result:
NG
REPLACE FLOOR WIRE
Result:
OK
See step 7
- Using a service wire, connect terminals 4 (BCL+) and 3 (BCL-) of connector C.
- CHECK FLOOR WIRE (SHORT)
- Measure the resistance according to the value(s) in the table below.TEXT IN ILLUSTRATION
*1 Side No. 2 Airbag Sensor Assembly LH *2 Side Airbag Sensor Assembly LH *3 Floor Wire *a Front view of wire harness connector
(to Side Airbag Sensor Assembly LH)Standard Resistance
Tester Connection Condition Specified Condition J6-1 (BCL+) - J6-2 (BCL-) Always 1 MΩ or higher
Result:
NG
REPLACE FLOOR WIRE
Result:
OK
See step 8
- Measure the resistance according to the value(s) in the table below.
- CHECK FLOOR WIRE (SHORT TO B+)
- Connect the cable to the negative (-) battery terminal.TEXT IN ILLUSTRATION
*1 Side No. 2 Airbag Sensor Assembly LH *2 Side Airbag Sensor Assembly LH *3 Floor Wire *a Front view of wire harness connector
(to Side Airbag Sensor Assembly LH) - Turn the engine switch on (IG).
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition J6-1 (BCL+) - Body ground Engine switch on (IG) Below 1 V J6-2 (BCL-) - Body ground Engine switch on (IG) Below 1 V - Turn the engine switch off.
- Disconnect the cable from the negative (-) battery terminal.WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
Result:
NG
REPLACE FLOOR WIRE
Result:
OK
See step 9
- Connect the cable to the negative (-) battery terminal.
- CHECK FLOOR WIRE (SHORT TO GROUND)
- Measure the resistance according to the value(s) in the table below.TEXT IN ILLUSTRATION
*1 Side No. 2 Airbag Sensor Assembly LH *2 Side Airbag Sensor Assembly LH *3 Floor Wire *a Front view of wire harness connector
(to Side Airbag Sensor Assembly LH)Standard Resistance
Tester Connection Condition Specified Condition J6-1 (BCL+) - Body ground Always 1 MΩ or higher J6-2 (BCL-) - Body ground Always 1 MΩ or higher
Result:
NG
REPLACE FLOOR WIRE
Result:
OK
See step 10
- Measure the resistance according to the value(s) in the table below.
- CHECK SIDE AIRBAG SENSOR ASSEMBLY LH
- Connect the connectors to the side No. 2 airbag sensor assembly LH and airbag ECU assembly.TEXT IN ILLUSTRATION
*1 Side Airbag Sensor Assembly RH *2 Airbag ECU Assembly - Interchange the side airbag sensor assembly LH with RH and connect the connectors.
- Connect the cable to the negative (-) battery terminal.
- Clear the DTCs stored in memory (Refer to DTC CHECK / CLEAR [10/2014 - ] ).
- Turn the engine switch off.
- Turn the engine switch on (IG), and wait for at least 60 seconds.
- Check for DTCs (Refer to DTC CHECK / CLEAR [10/2014 - ]
).
Result
Result Proceed to DTC B1625/22 is output. A DTC B1620/21 is output. B DTCs B1620/21 and B1625/22 are not output. C HINT:
Codes other than DTCs B1620/21 and B1625/22 may be output at this time, but they are not related to this check.
- Turn the engine switch off.
- Disconnect the cable from the negative (-) battery terminal.WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
- Return the side airbag sensor assembly LH and RH to their original positions and connect the connectors.
Result:
B
REPLACE SIDE AIRBAG SENSOR ASSEMBLY LH
(Refer to REMOVAL [10/2014 - ] )
Result:
C
USE SIMULATION METHOD TO CHECK
(Refer to HOW TO PROCEED WITH TROUBLESHOOTING [10/2014 - 10/2015] or HOW TO PROCEED WITH TROUBLESHOOTING [10/2015 - ] )
Result:
A
See step 11
- Connect the connectors to the side No. 2 airbag sensor assembly LH and airbag ECU assembly.
- CHECK SIDE NO. 2 AIRBAG SENSOR ASSEMBLY LH
- Disconnect the connector from the side No. 2 airbag sensor assembly LH.TEXT IN ILLUSTRATION
*1 Side No. 2 Airbag Sensor Assembly LH *2 Side Airbag Sensor Assembly LH - Connect the cable to the negative (-) battery terminal.
- Clear the DTCs stored in memory (Refer to DTC CHECK / CLEAR [10/2014 - ] ).
- Turn the engine switch off.
- Turn the engine switch on (IG), and wait for at least 60 seconds.
- Check for DTCs (Refer to DTC CHECK / CLEAR [10/2014 - ]
).
OK
DTC B1625/22 is not output.
HINT:
Codes other than DTC B1625/22 may be output at this time, but they are not related to this check.
Result:
OK
REPLACE SIDE NO. 2 AIRBAG SENSOR ASSEMBLY LH
(Refer to REMOVAL [10/2014 - ] )
Result:
NG
REPLACE AIRBAG ECU ASSEMBLY
(Refer to REMOVAL [10/2014 - ] )
- Disconnect the connector from the side No. 2 airbag sensor assembly LH.
