Immobilizer System, Smart Key System, Starting, Steering Lock And Wireless Door Lock Control

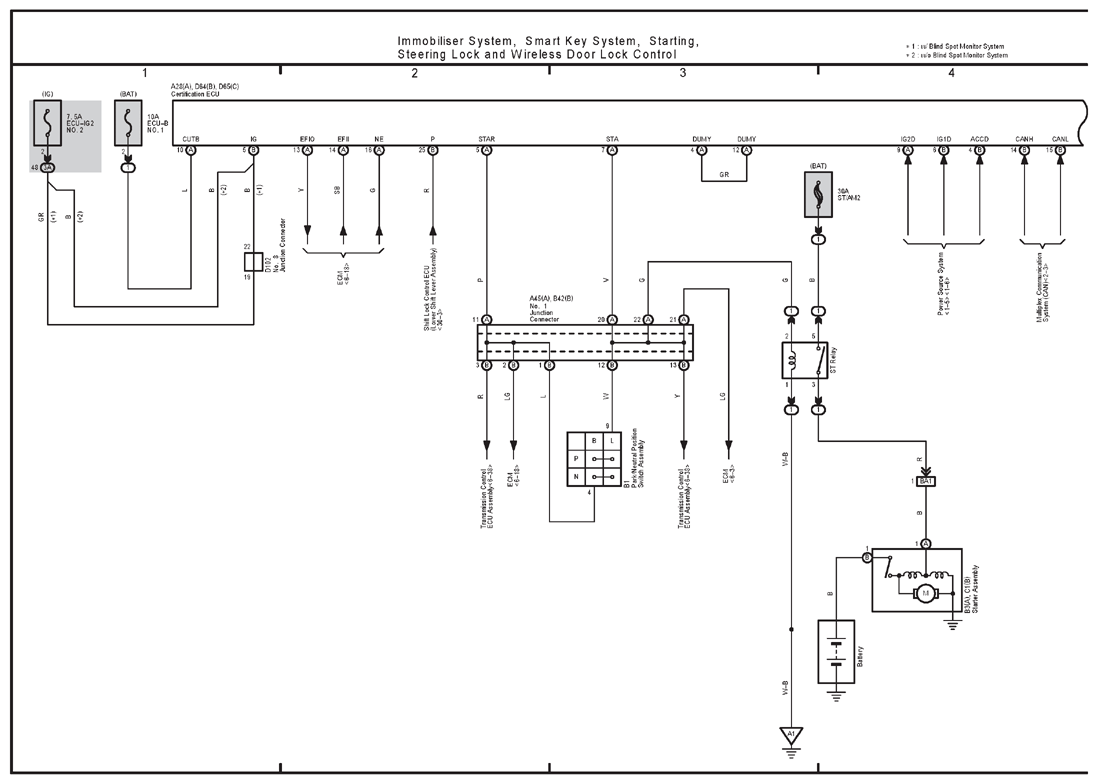

G12199903

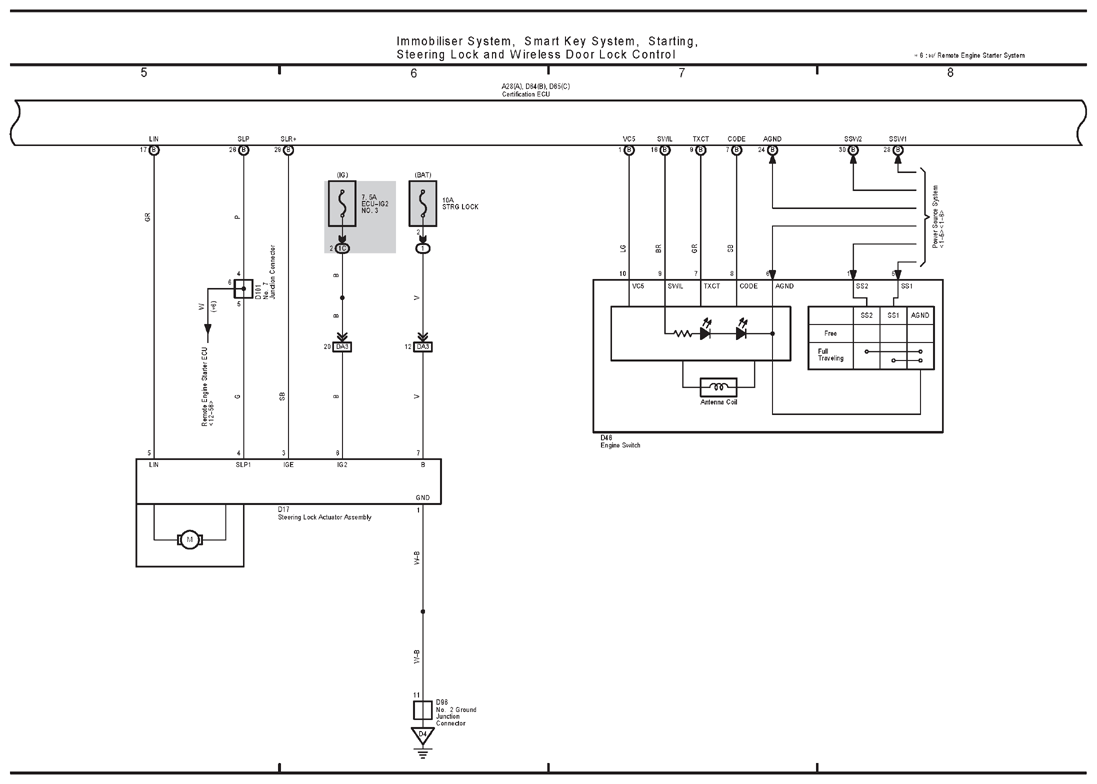

G12199904

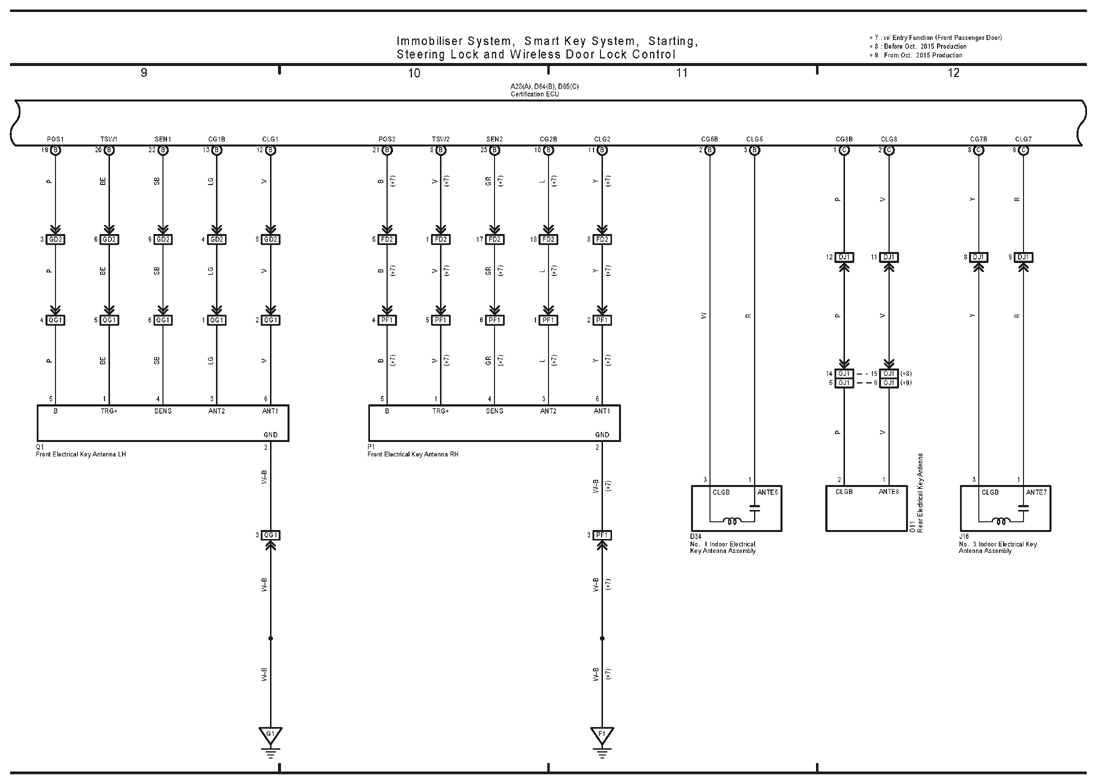

G12199905

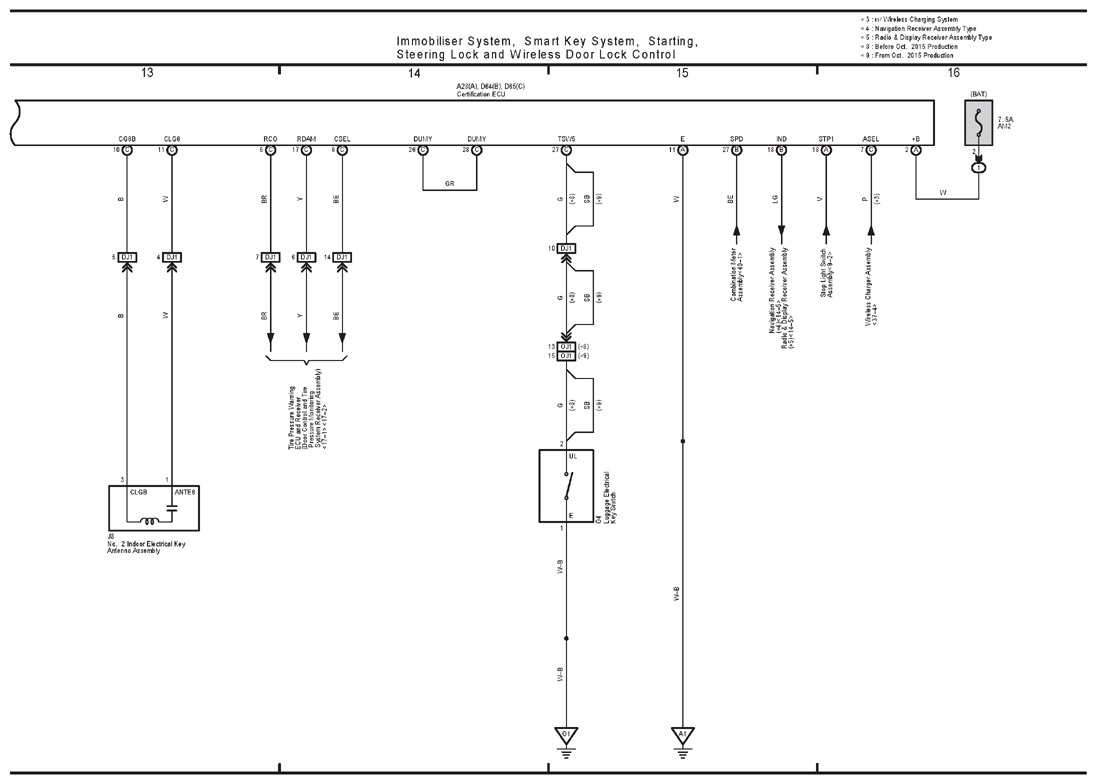

G12199906

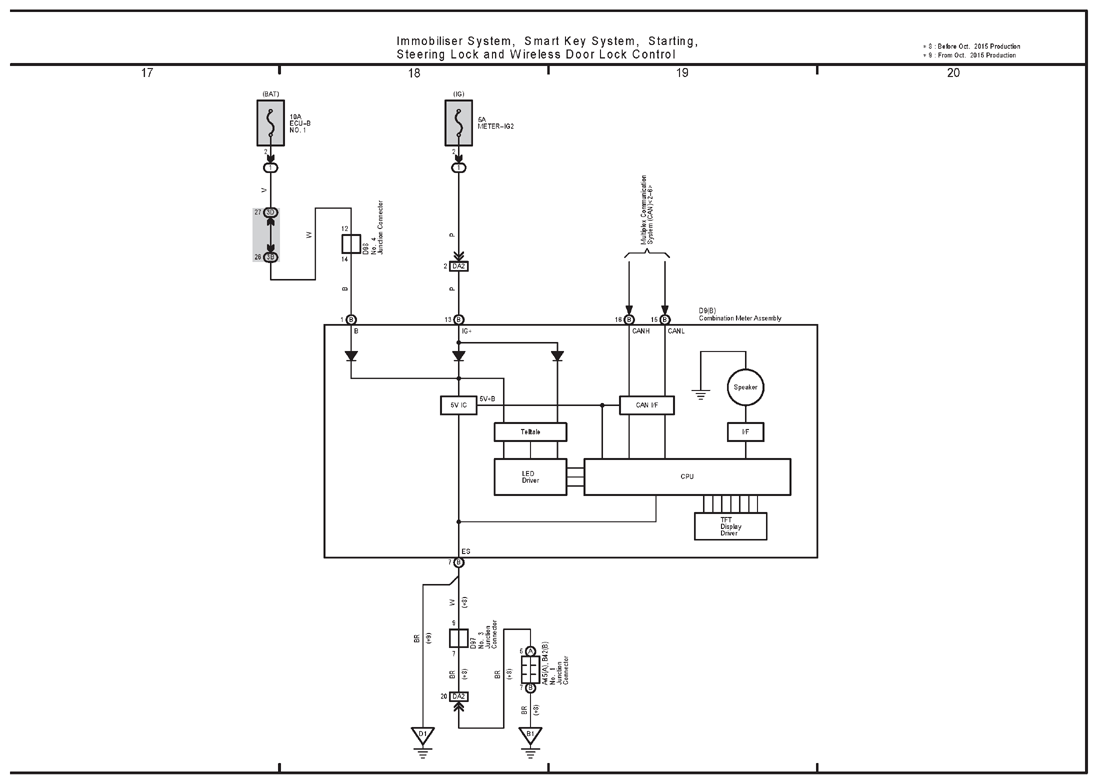

G12199907
