Engine Control, Lane Departure Alert And Pre-Collision System (From Oct. 2015 Production), Cruise Control Or Dynamic Radar Cruise Control, Electronically Controlled Transmission And A/T Indicator

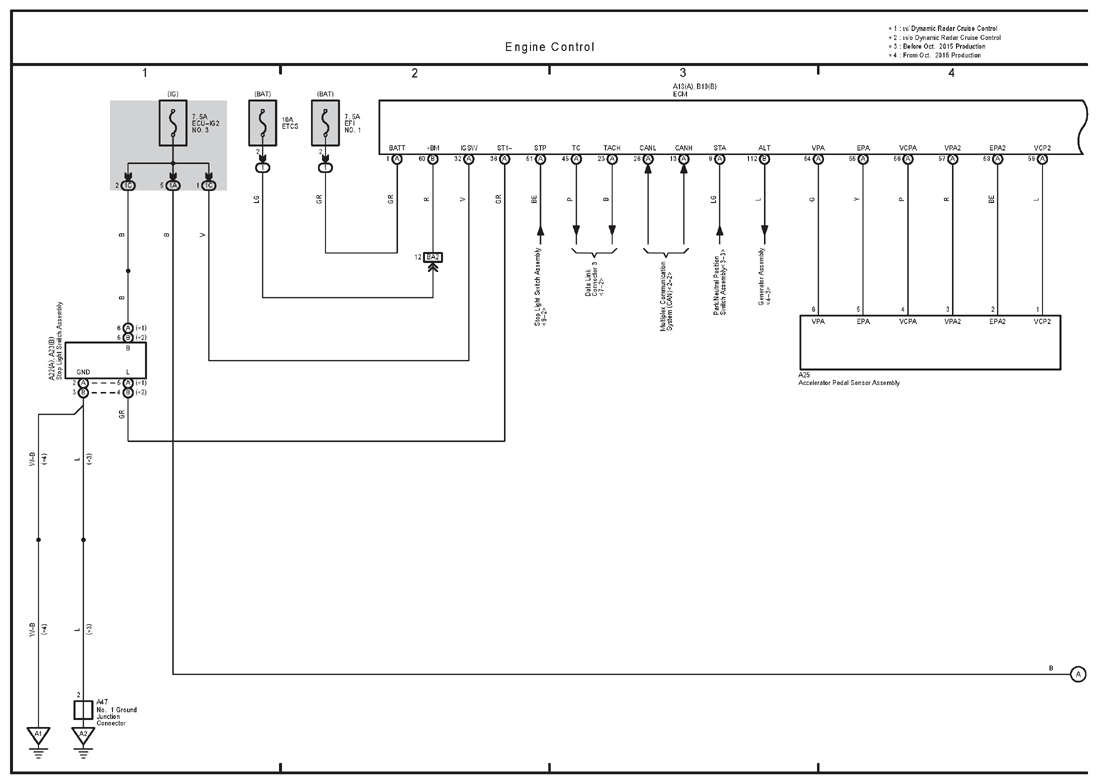

G12199937

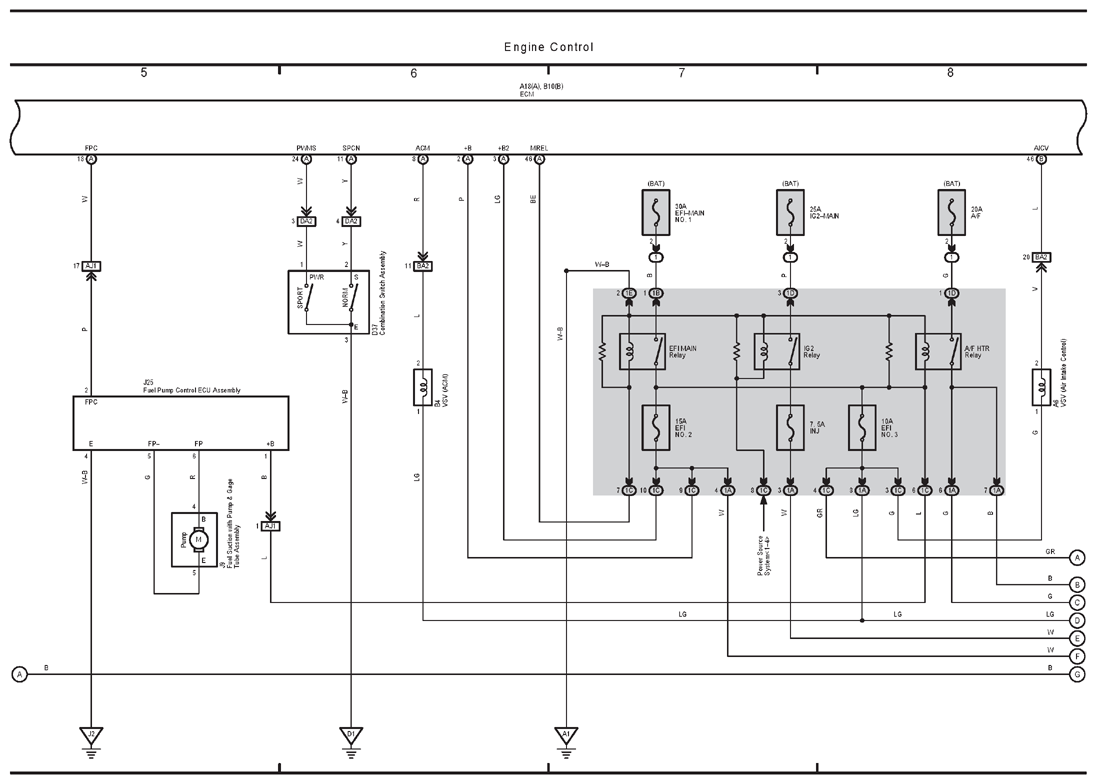

G12199938

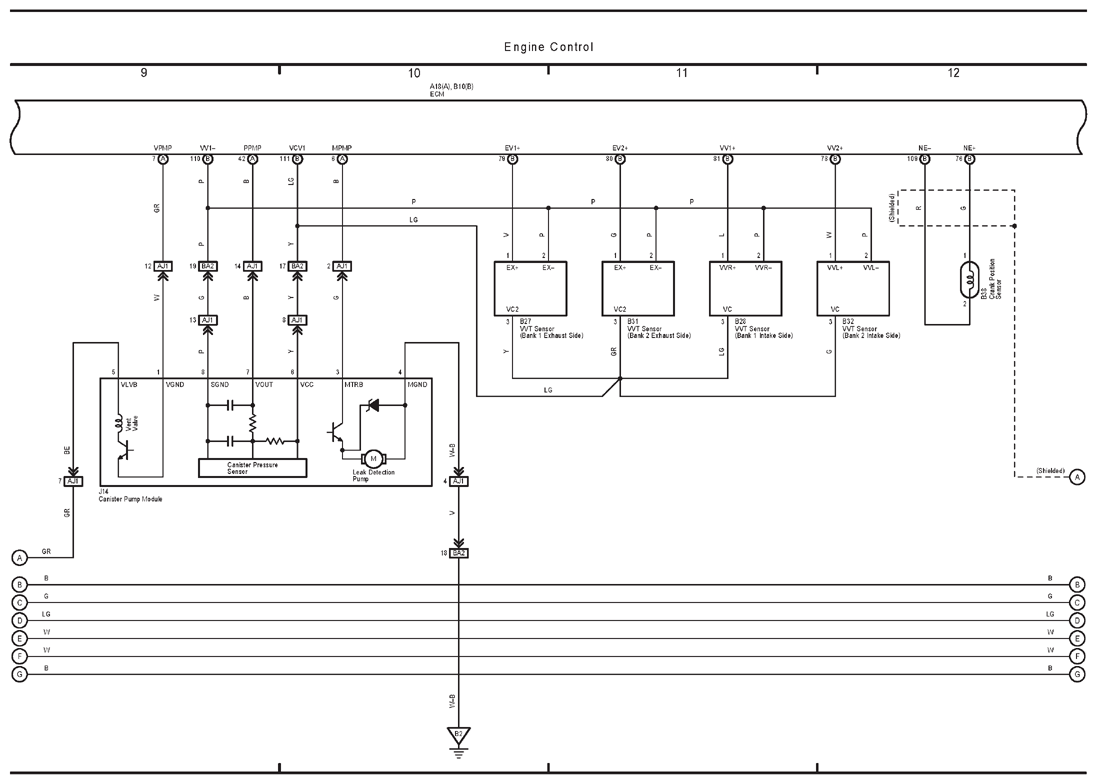

G12199939

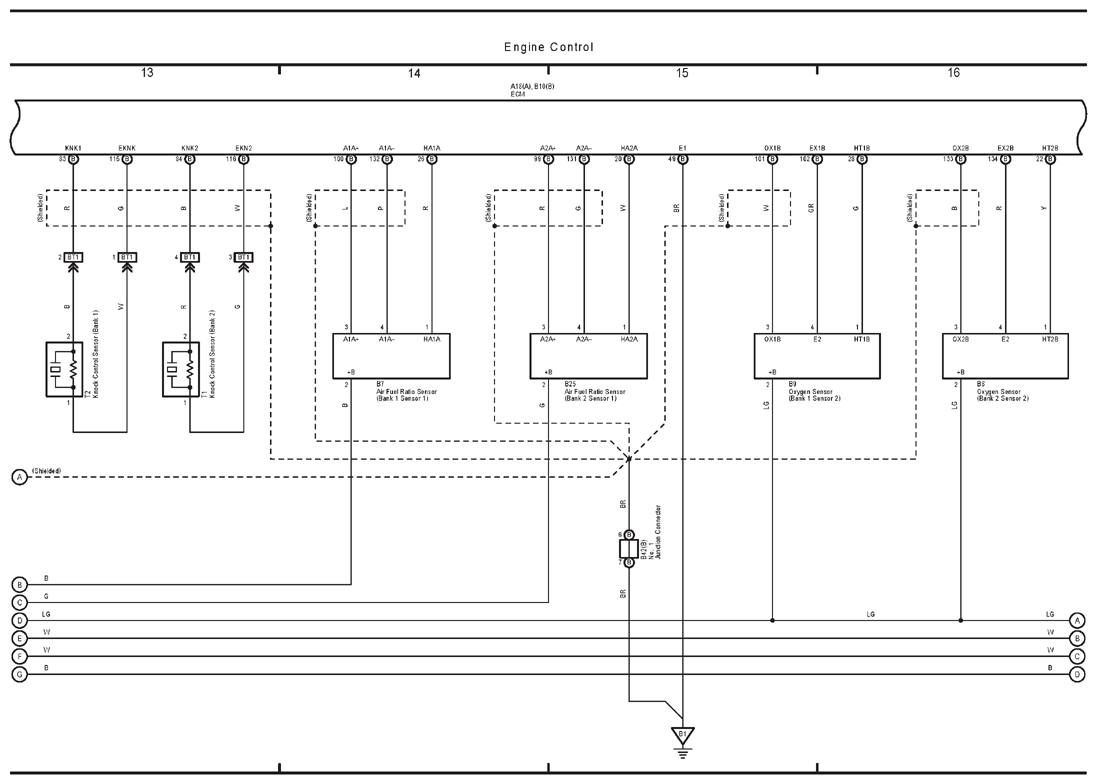

G12199940

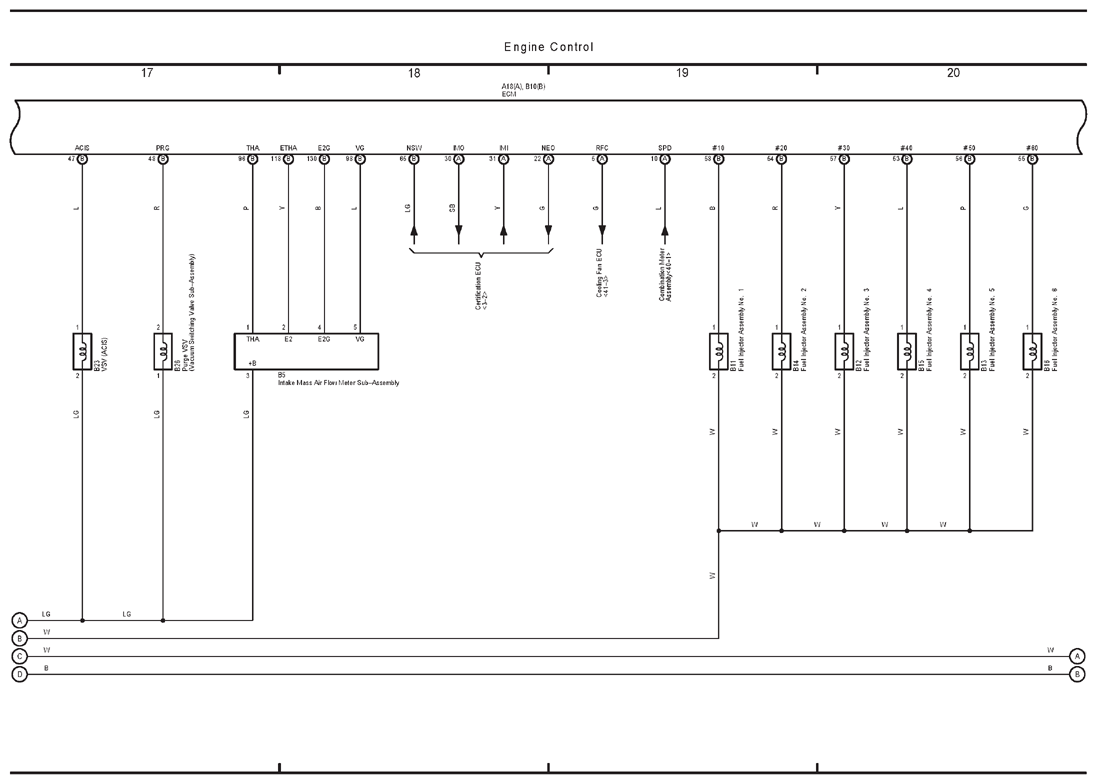

G12199941

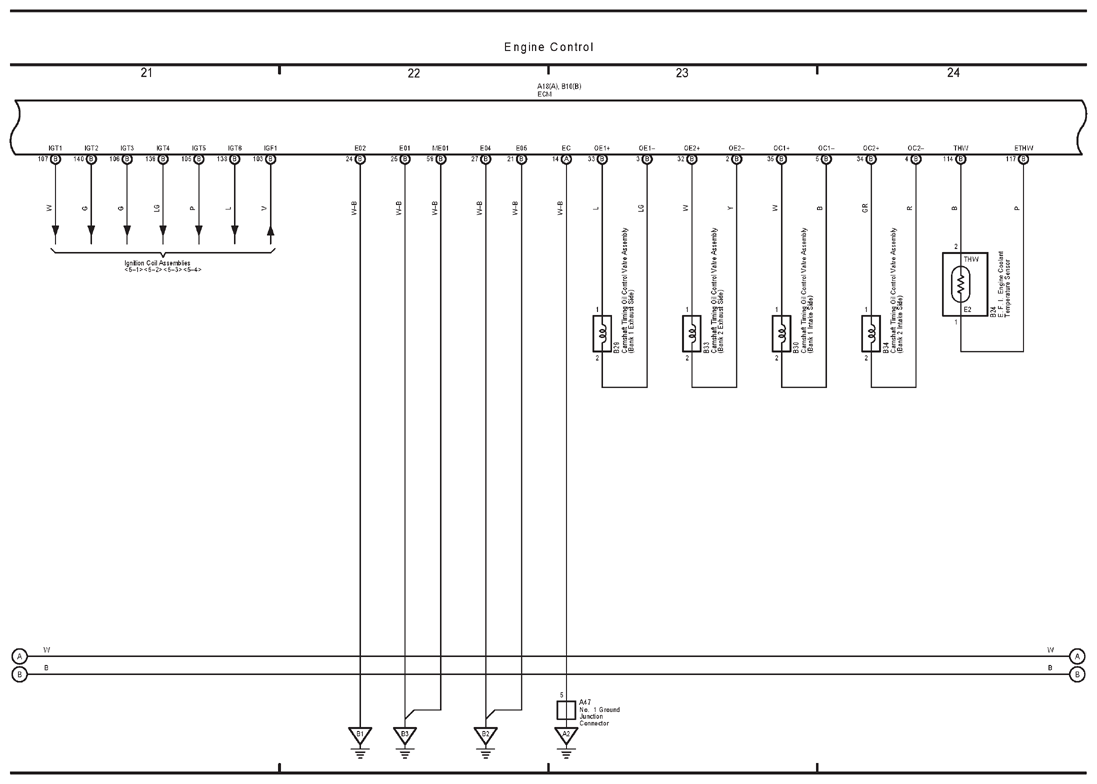

G12199942

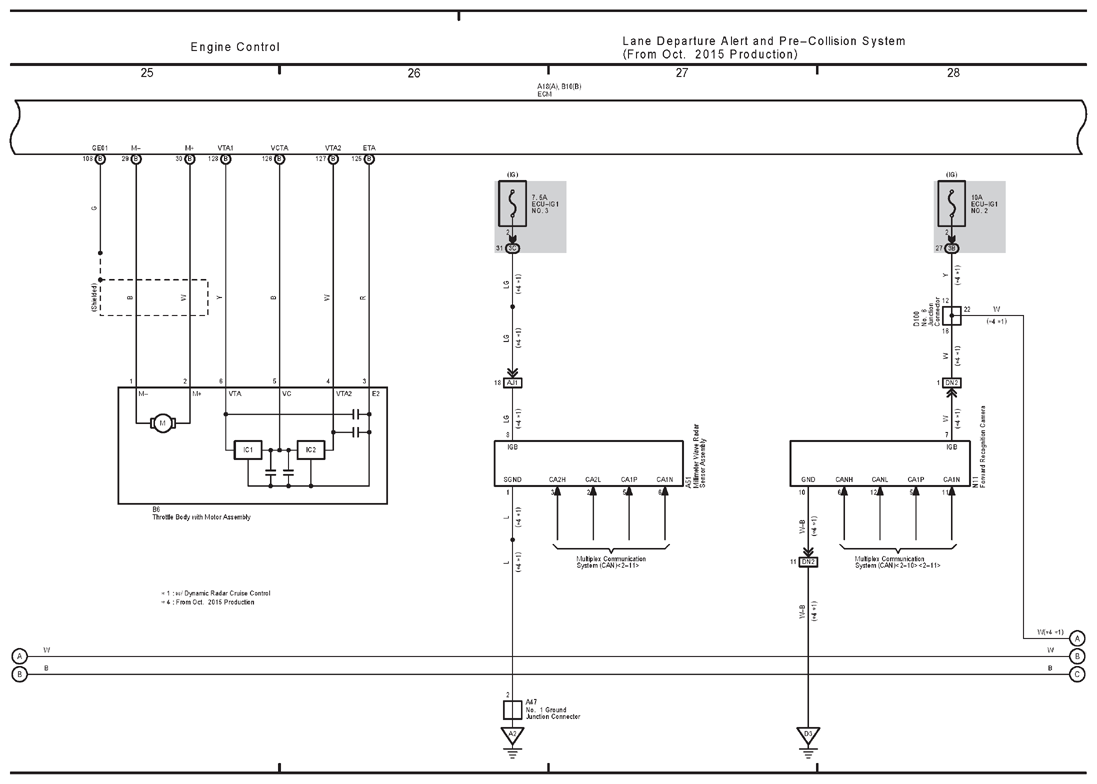

G12199943

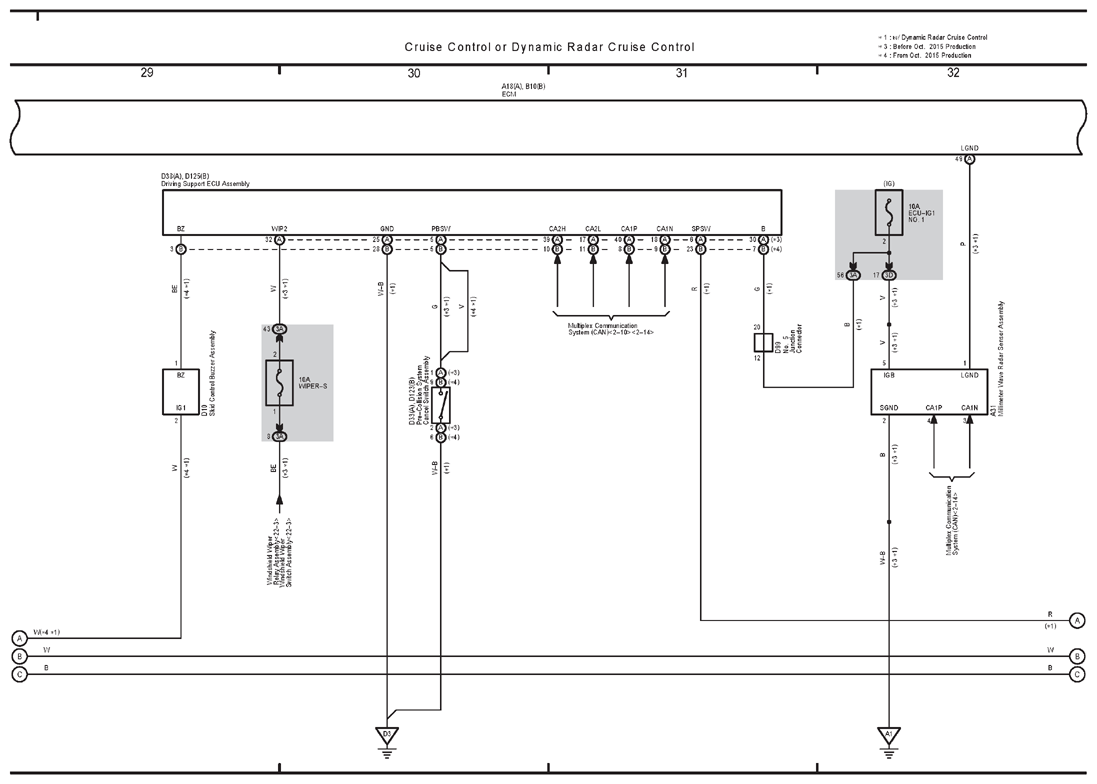

G12199944

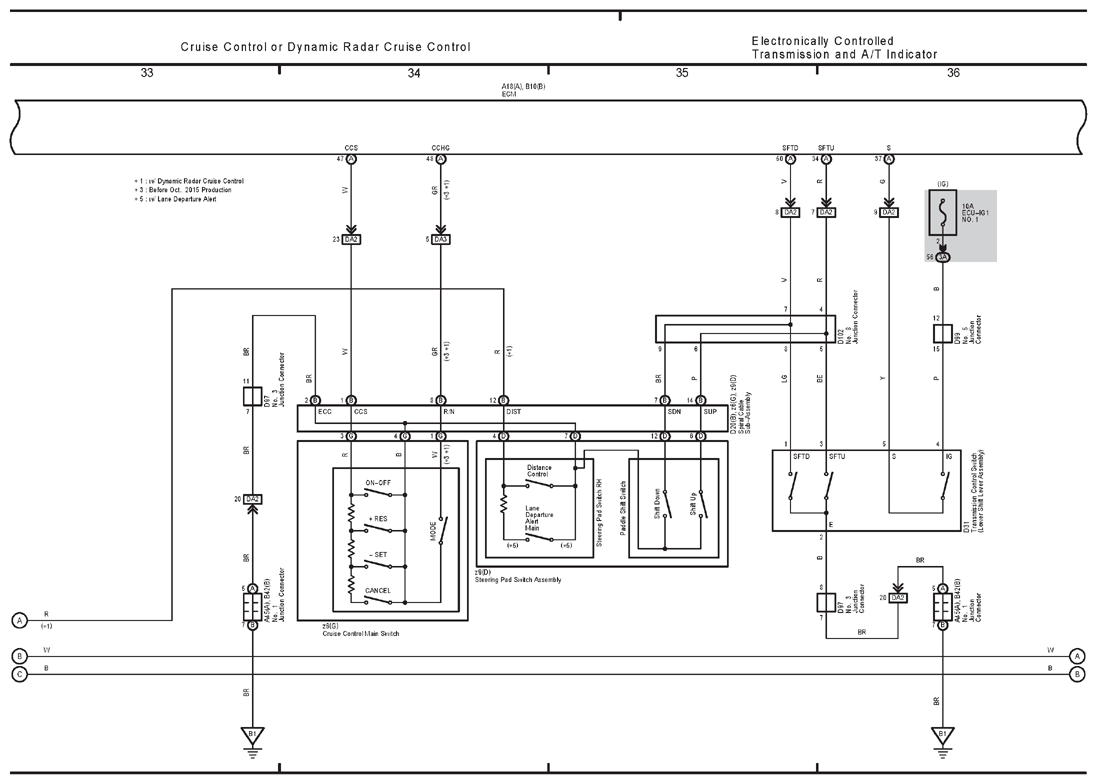

G12199945

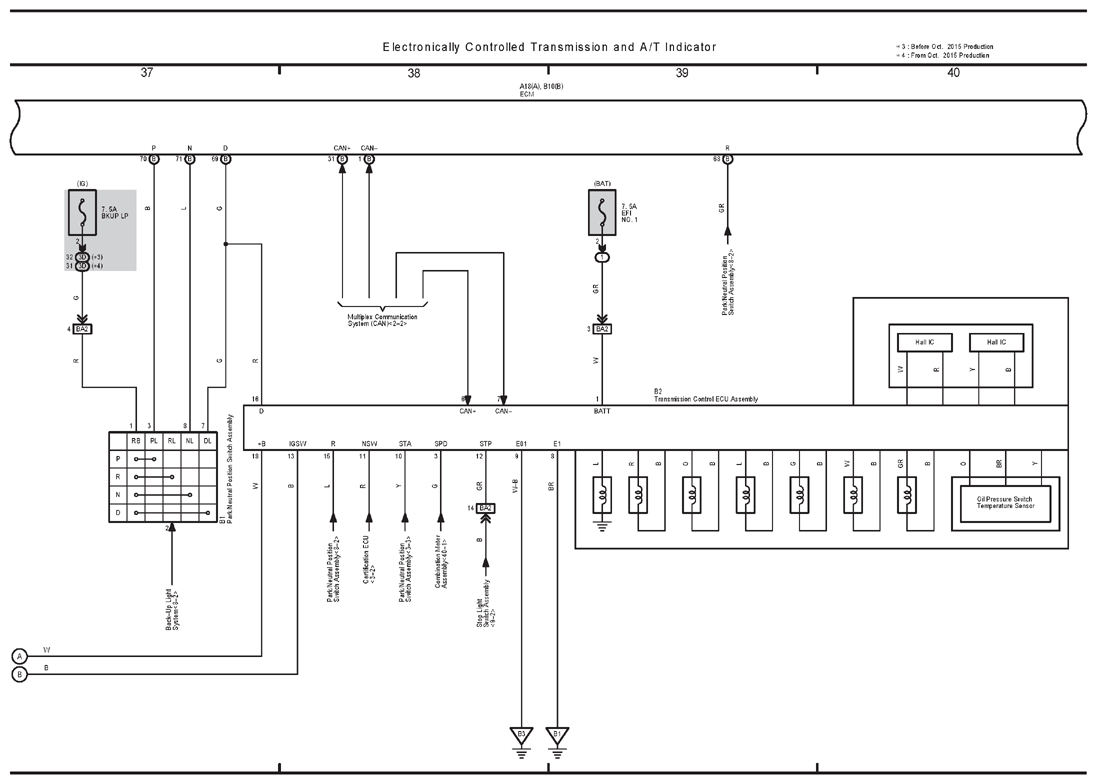

G12199946

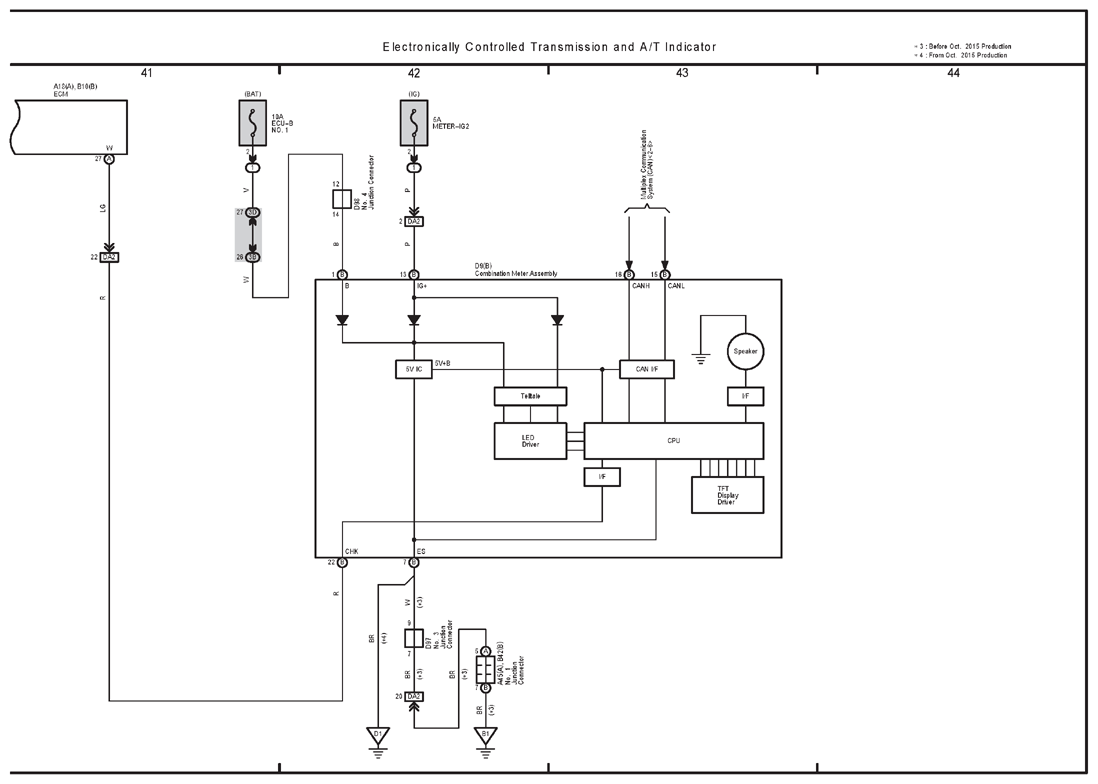

G12199947
