Audio System (11 Speaker), Navigation System (11 Speaker) And Parking Assist (Back Guide Monitor)

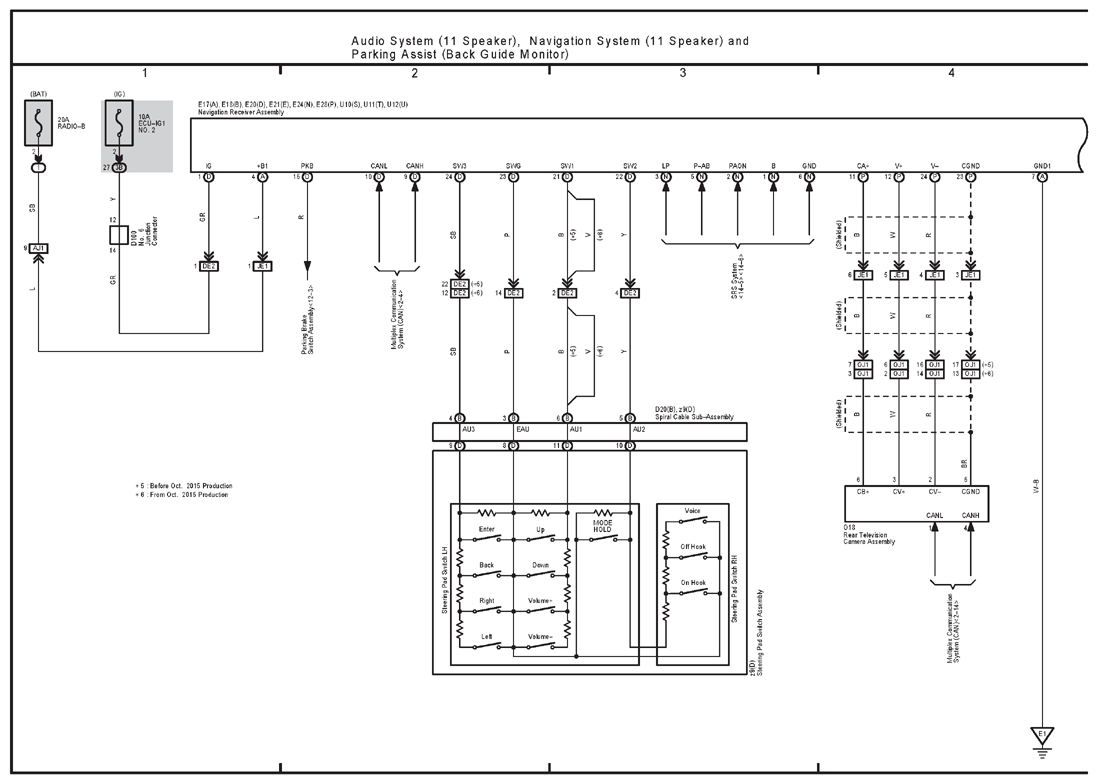

G12199918

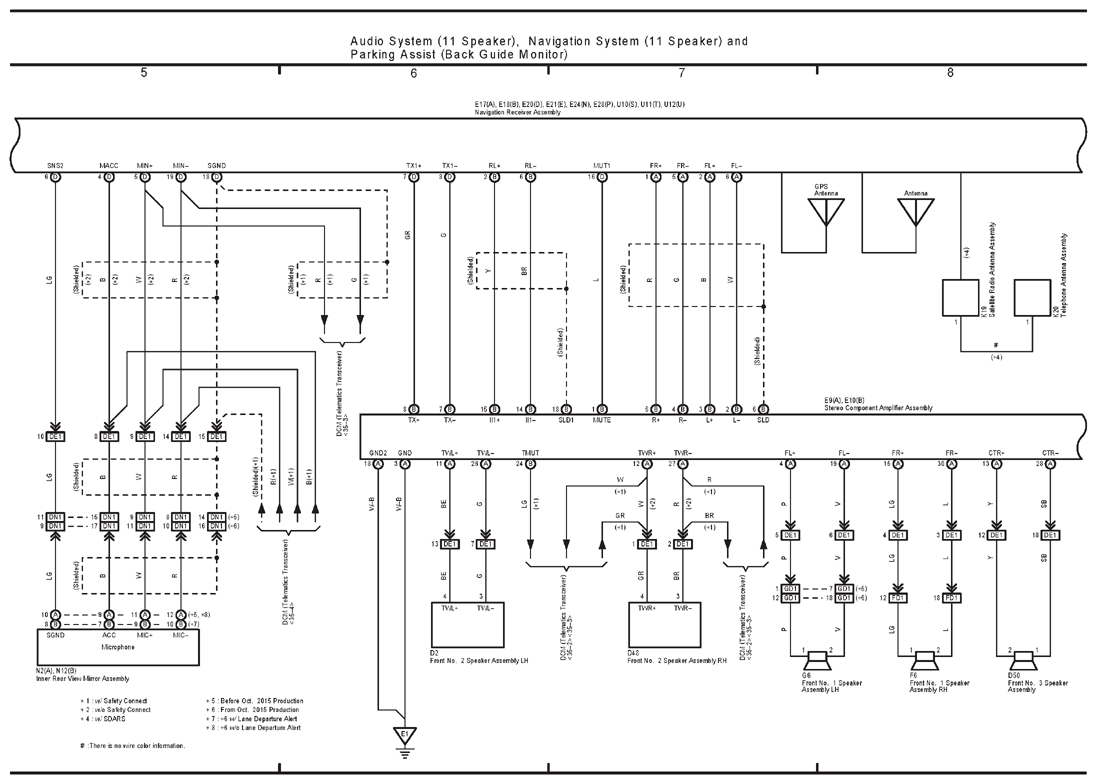

G12199919

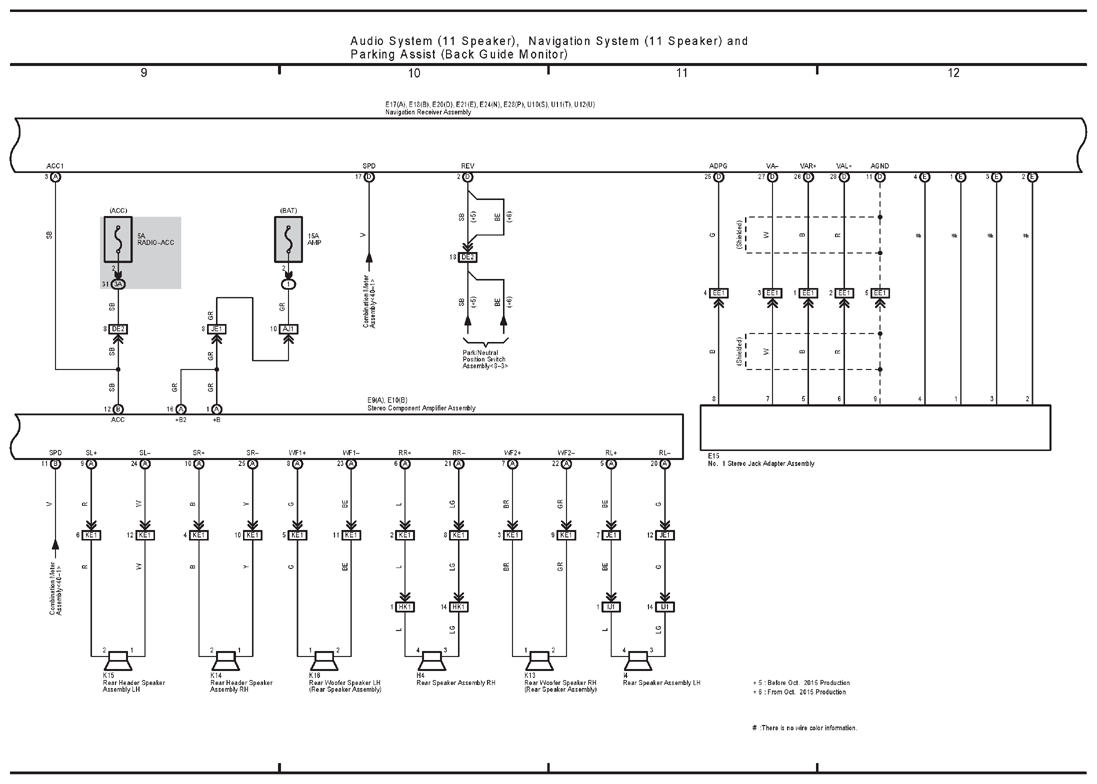

G12199920

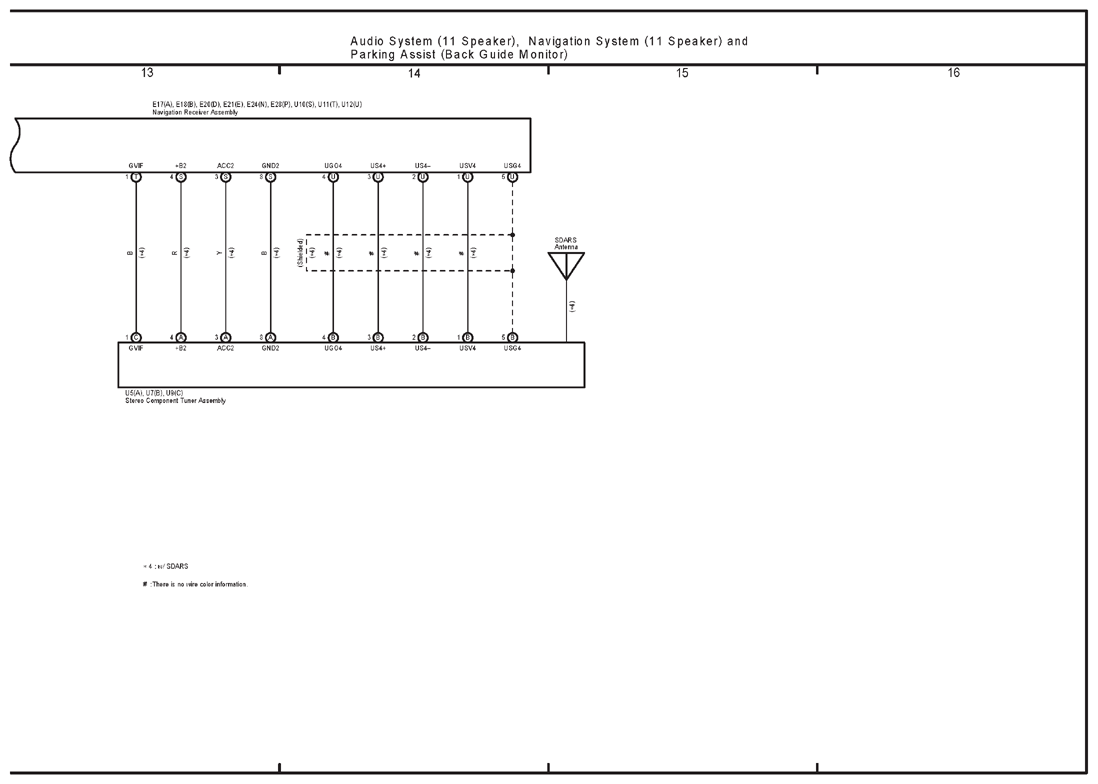

G12199921
