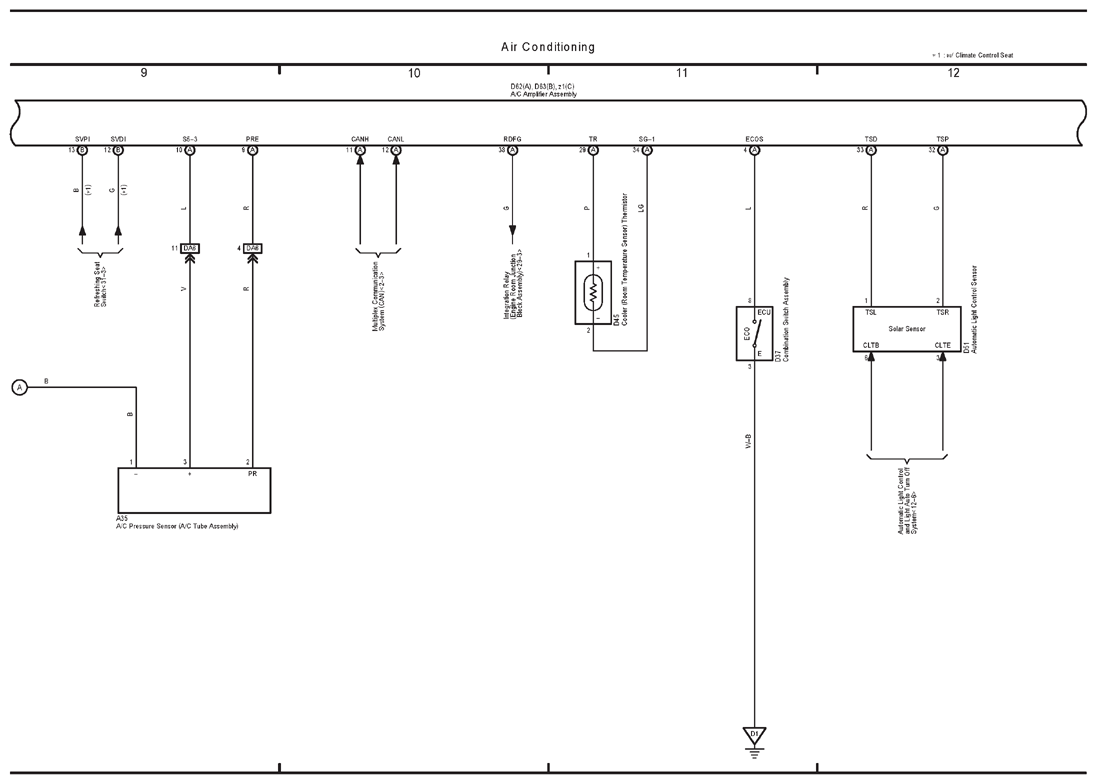

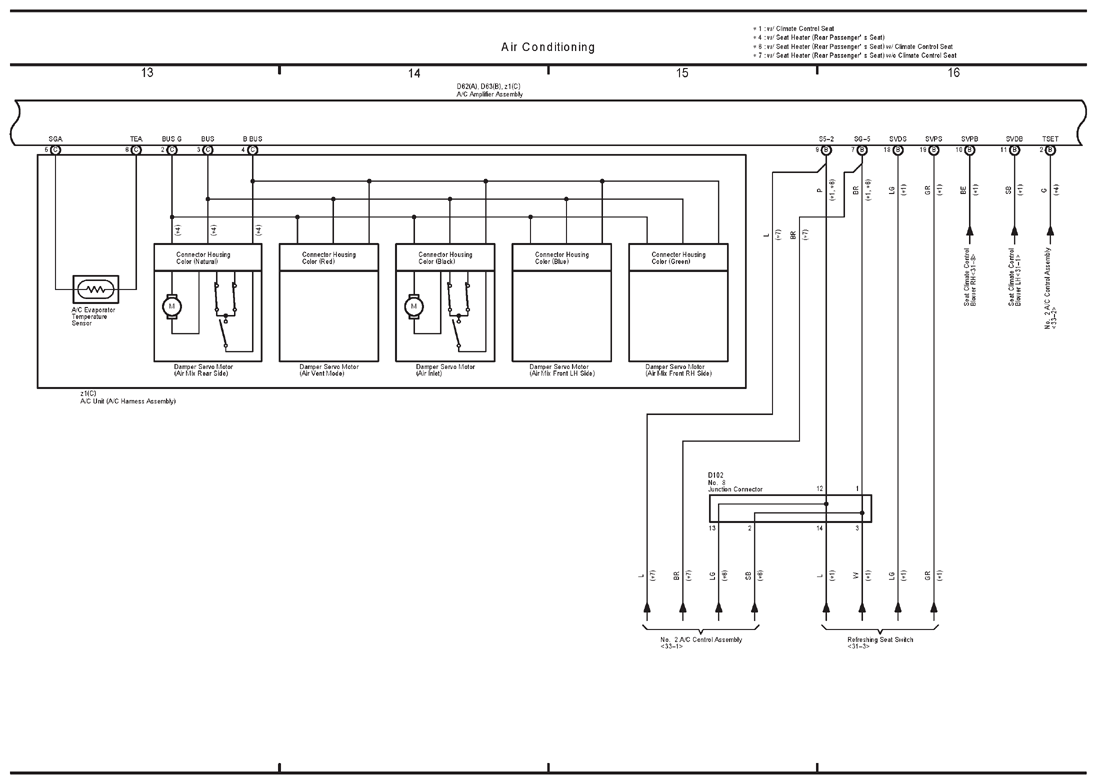

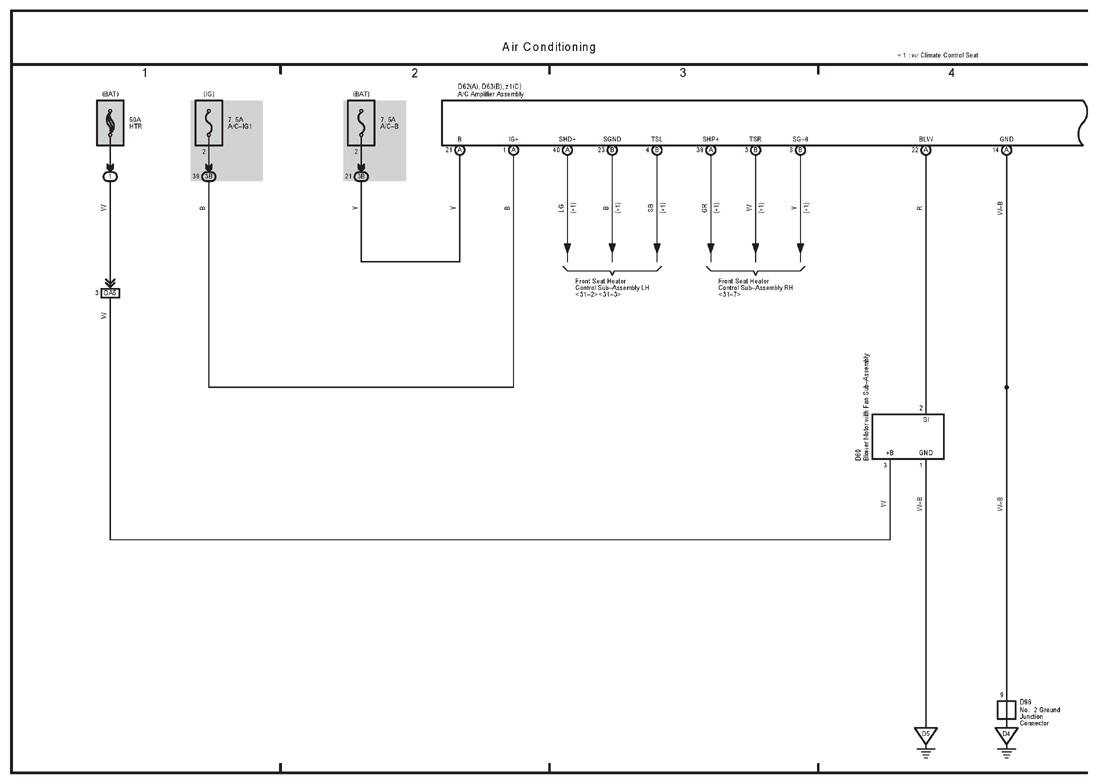

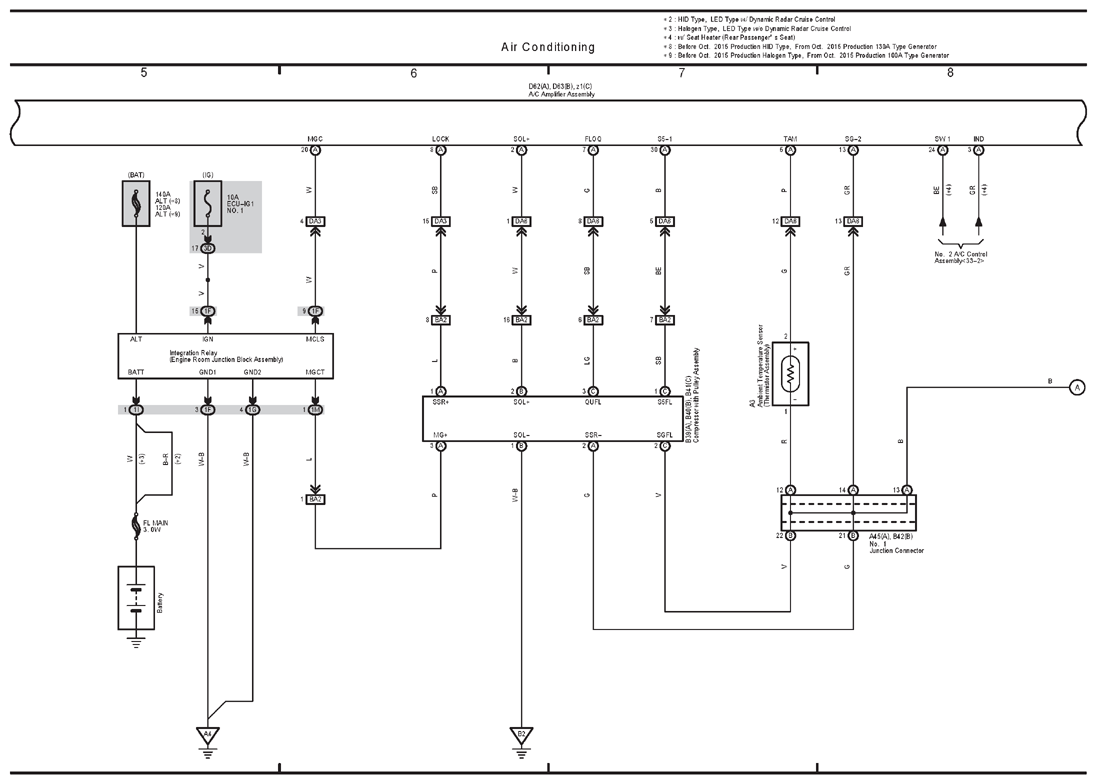

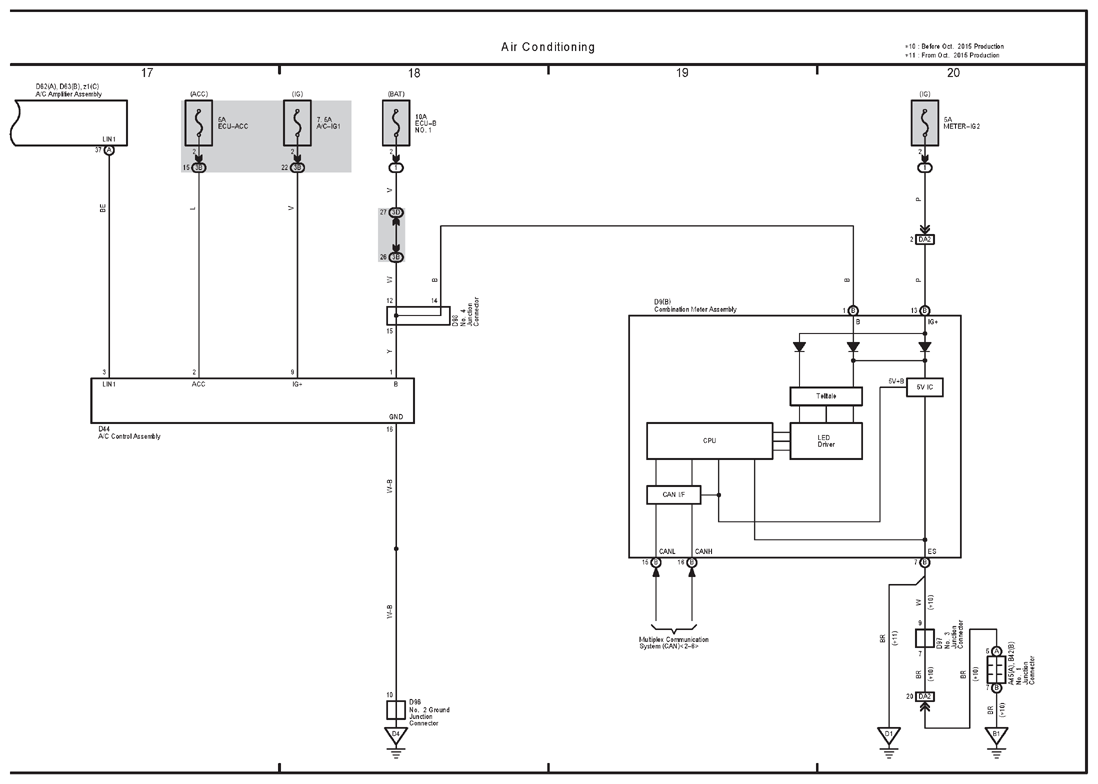

Home >> Toyota >> 2017 >> Avalon XLE >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Overall Electrical Wiring Diagram (Except Hybrid) >> Overall Electrical Wiring Diagram >> Air Conditioning
