Removal [10/2014 - ]: Procedure

  1. REMOVE REAR WHEEL
  2. SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY

    See step  2

  3. REMOVE PARKING BRAKE SHOE ADJUSTING HOLE PLUG

    Refer to PROCEDURE - Step 13

  4. REMOVE REAR DISC

    Refer to PROCEDURE - Step 14

  5. DISCONNECT SKID CONTROL SENSOR WIRE

    Refer to PROCEDURE - Step 7

  6. REMOVE REAR AXLE HUB AND BEARING ASSEMBLY

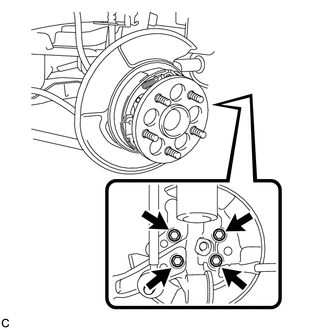

    1. Remove the 4 bolts, rear axle hub and bearing assembly and parking brake assembly from the rear axle carrier sub-assembly.
      GTY316385Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
      NOTE:

      Use wire or an equivalent tool to keep the parking brake assembly from hanging by the parking brake cable assembly.
