Installation [10/2014 - ]: Procedure

  1. INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY
    NOTE:

    Before installing the transmission control cable assembly, check that the park/neutral position switch assembly and the shift lever are in neutral.

    1. Pass the transmission control cable assembly from the cabin to the engine compartment.
    2. Install the transmission control cable assembly to the body with the 2 bolts.

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

    3. Install the dash panel insulator to the original position.
    4. Connect the transmission control cable assembly to the No. 1 transmission control cable bracket with a new clip.
    5. Connect the transmission control cable assembly to the control shaft lever with the nut.

      Torque: 13 N*m (130 kgf*cm, 9 ft.*lbf)

      NOTE:

      Before connecting the transmission control cable assembly, check that the park/neutral position switch assembly and the shift lever are in neutral.

    6. Connect the wire harness clamp to the wire harness clamp bracket.
    7. Engage the 2 claws to connect the transmission control cable assembly to the lower shift lever assembly.
    8. Slide the slider of the transmission control cable assembly in the direction indicated by the arrow and pull the lock piece outward.
      GTY562374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Slider
      *2 Lock Piece
      *a Slide
      *b Pull

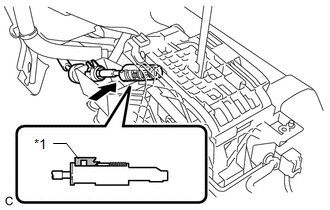

    9. Install the end of the transmission control cable assembly to the lower shift lever assembly.
      GTY570165Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Lock Piece
      NOTE:
      • Check that the lock piece is pulled up.
      • Install the cable end all the way to the base of the pin.
    10. Push the lock piece into the adjuster case.
      NOTE:
      • Check that the park/neutral position switch assembly and the shift lever are in neutral.
      • Securely push in the lock piece until the slider lock is engaged.
  2. CONNECT NO. 1 PARKING BRAKE CABLE ASSEMBLY
    1. Install the No. 1 parking brake cable assembly to the body with the bolt and nut.

      Bolt

      Torque: 15 N*m (153 kgf*cm, 11 ft.*lbf)

      Nut

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

  3. INSTALL ACCELERATOR PEDAL SENSOR ASSEMBLY

    Refer to PROCEDURE - Step 1

  4. INSTALL AIRBAG SENSOR ASSEMBLY

    (Refer to INSTALLATION [10/2014 - ] )

  5. INSTALL AIR CLEANER CASE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 56

  6. INSTALL AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY
  7. INSTALL AIR CLEANER CAP SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  8. INSTALL INLET NO. 2 AIR CLEANER

    Refer to PROCEDURE - Step 59

  9. INSTALL COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 3 Refer to PROCEDURE - Step 3

  10. INSPECT SHIFT LEVER POSITION

    See step  1
