Adjustment [10/2014 - ]: Procedure
- INSPECT SHIFT LEVER POSITION
- When the shift lever is moved from P to R with the engine switch on (IG) and brake pedal depressed, make sure that the shift lever moves smoothly and correctly into position.
- Start the engine and make sure that the vehicle moves forward when the shift lever is moved from N to D and moves rearward when the shift lever is moved to R.
- ADJUST SHIFT LEVER POSITION
- Move the shift lever to N.
- Remove the front console box (Refer to REMOVAL [10/2014 - ] ).
- Disconnect the end of the transmission control cable assembly from the lower shift lever assembly.

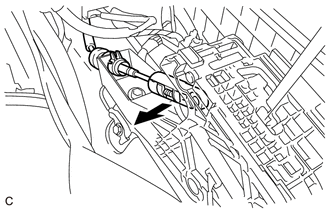

- Slide the slider of the transmission control cable assembly in the direction indicated by the arrow and pull the lock piece outward.TEXT IN ILLUSTRATION
*1 Slider *2 Lock Piece *a Slide *b Pull - Install the end of the transmission control cable assembly to the lower shift lever assembly.TEXT IN ILLUSTRATION
*1 Lock Piece NOTE:- Check that the lock piece is pulled up.
- Install the cable end all the way to the base of the pin.
- Push the lock piece into the adjuster case.NOTE:
- Check that the park/neutral position switch assembly and the shift lever are in neutral.
- Securely push in the lock piece until the slider lock is engaged.
- After adjusting the shift lever position, check the operation and function of the shift lever. If there is a problem, adjust the position again.
- Install the front console box (Refer to INSTALLATION [10/2014 - ] ).
