Replacement [10/2014 - ]: Procedure

1. Remove the front wheel opening extension pad LH, engine under cover LH and front fender apron seal LH.
2. Remove the refill plug and gasket from the rear transaxle cover sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Using a 6 mm hexagon socket wrench, remove the overflow plug and gasket from the automatic transaxle oil pan sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

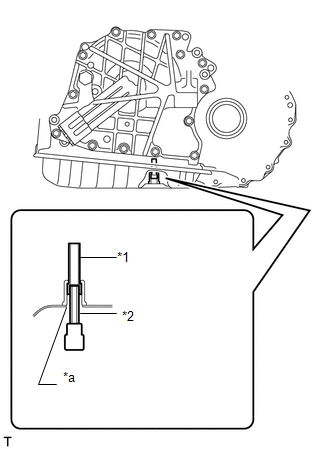

4. Using a 6 mm hexagon socket wrench, remove the No. 1 transmission oil filler tube from the automatic transaxle oil pan sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *1	No. 1 Transmission Oil Filler Tube
   *2	Hexagon Socket Wrench
   *a	Overflow Plug Hole

5. Drain automatic transaxle fluid from the automatic transaxle assembly.
6. Using a 6 mm hexagon socket wrench, install the No. 1 transmission oil filler tube to the automatic transaxle oil pan sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 1.7 N*m (17 kgf*cm, 15 in.*lbf)

   TEXT IN ILLUSTRATION



   *1	No. 1 Transmission Oil Filler Tube
   *2	Hexagon Socket Wrench
   *a	Overflow Plug Hole

7. Using a 6 mm hexagon socket wrench, temporarily install the gasket and overflow plug to the automatic transaxle oil pan sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Reuse the old gasket as the overflow plug will be removed again to adjust the fluid level.

8. Temporarily install the gasket and refill plug to the rear transaxle cover sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Reuse the old gasket as the refill plug will be removed again to adjust the fluid level.

(Refer to REMOVAL [10/2014 - ] )

(Refer to REMOVAL [10/2014 - ] )

Refer to PROCEDURE - Step 76

1. Using SST, remove the transaxle case oil seal from the transaxle case.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • SST: 09308-00010

1. Using SST, remove the front transaxle case oil seal from the transaxle housing.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • SST: 09308-00010

1. Coat the lip of a new transaxle case oil seal with MP grease.

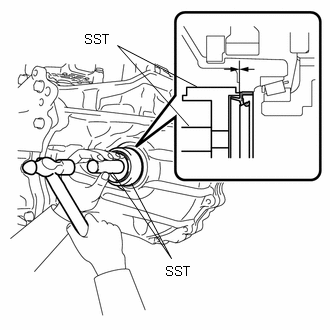

2. Using SST and a hammer, install the transaxle case oil seal to the transaxle case.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • SST: 09316-10010
   • SST: 09950-70010
     1. 09951-07100

   Oil seal driven in depth

   -0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

   NOTE:

   Check that the transaxle case oil seal is installed in the correct direction.

1. Coat the lip of a new front transaxle case oil seal with MP grease.
2. Using SST and a hammer, install the front transaxle case oil seal to the transaxle housing.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • SST: 09316-60011
     1. 09316-00011

   Oil seal driven in depth

   -0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

   NOTE:

   Check that the front transaxle case oil seal is installed in the correct direction.

Refer to PROCEDURE - Step 3

Refer to PROCEDURE - Step 12

(Refer to INSTALLATION [10/2014 - ] )

(Refer to INSTALLATION [10/2014 - ] )

(See step  5)
