Components [10/2014 - ]: Illustration

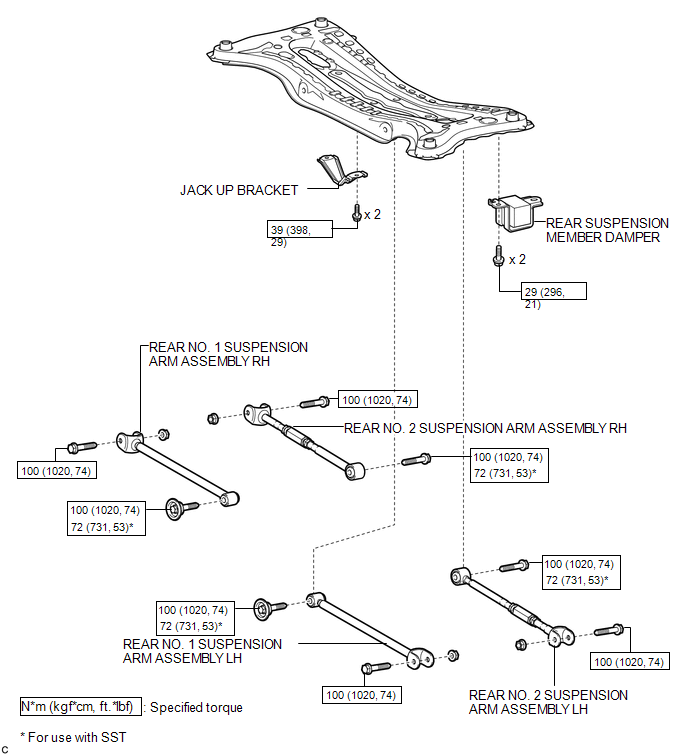

Fig 1: Rear Suspension Member Replacement Components With Torque Specifications (1 Of 4)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

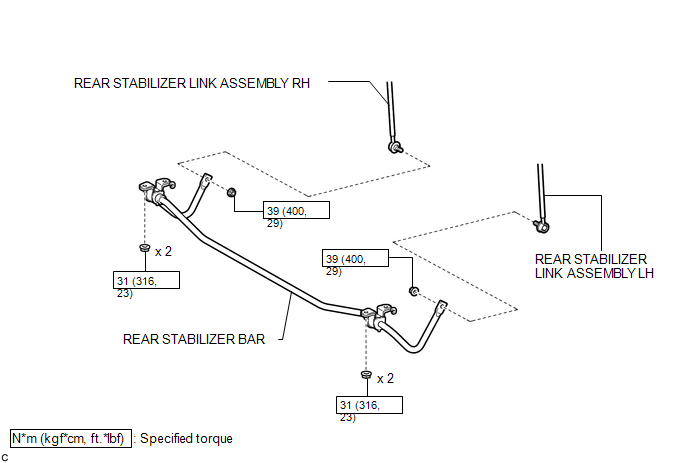

Fig 1: Rear Suspension Member Replacement Components With Torque Specifications (2 Of 4)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

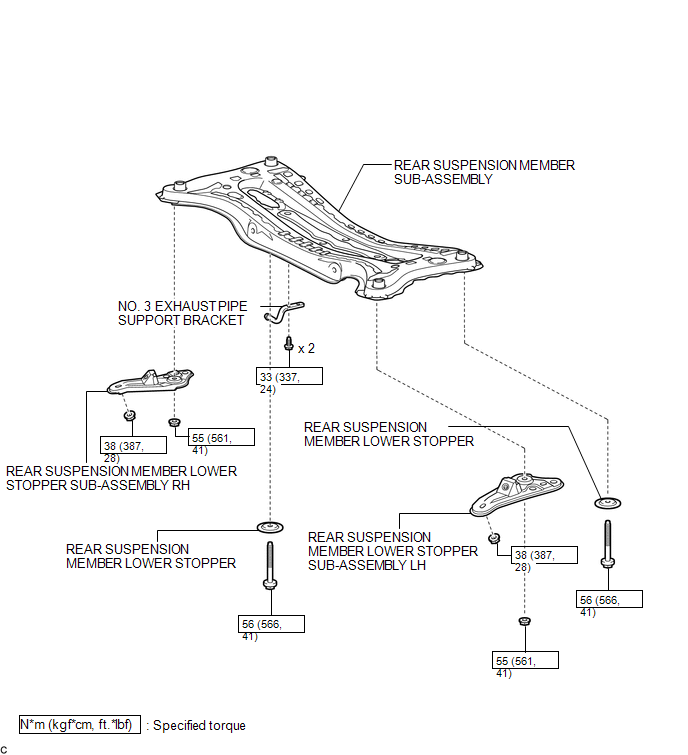

Fig 1: Rear Suspension Member Replacement Components With Torque Specifications (3 Of 4)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

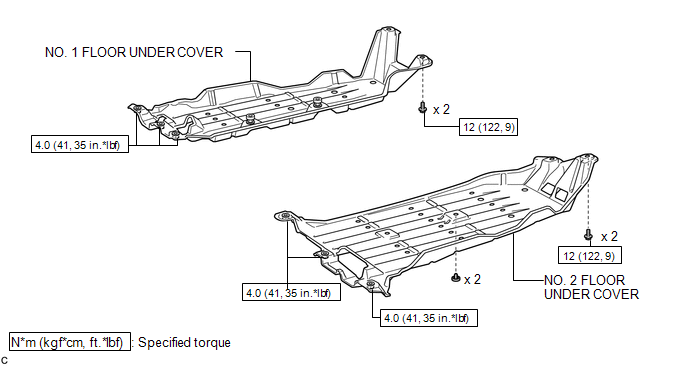

Fig 1: Rear Suspension Member Replacement Components With Torque Specifications (4 Of 4)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
