Removal [10/2014 - ]: Procedure

  1. REMOVE REAR WHEEL
  2. SEPARATE NO. 3 PARKING BRAKE CABLE ASSEMBLY

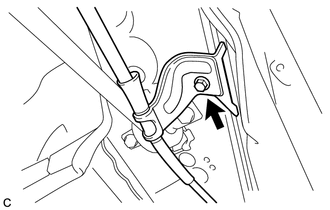

    1. Remove the bolt and separate the No. 3 parking brake cable assembly from the vehicle.
      GTY316370Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
  3. REMOVE REAR STRUT ROD ASSEMBLY

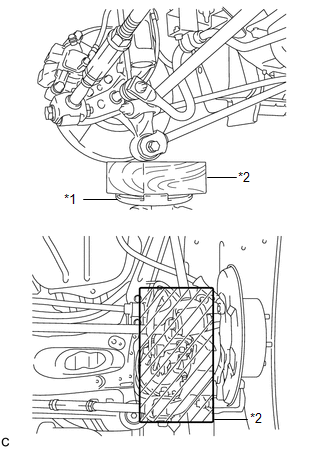

    1. Support the rear axle carrier sub-assembly with a jack using a wooden block.
      GTY564742Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
      TEXT IN ILLUSTRATION

      *1 Jack
      *2 Wooden Block

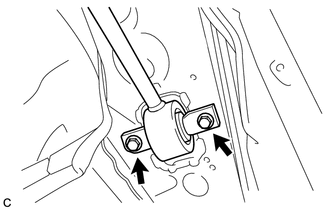

    2. Remove the 2 bolts and separate the rear strut rod assembly (front).
      GTY322236Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
    3. Remove the bolt, nut and rear strut rod assembly from the rear axle carrier sub-assembly.
      GTY600688Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
      NOTE:

      Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.
