Removal [10/2014 - ]: Procedure

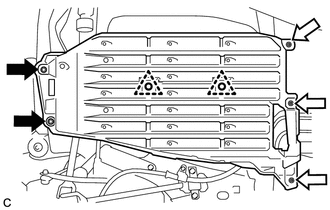

1. Remove the 2 bolts and 2 clips.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

   TEXT IN ILLUSTRATION



   	Bolt
   	Nut (attached to under cover)

2. Disengage the 3 nuts and remove the No. 2 floor under cover.

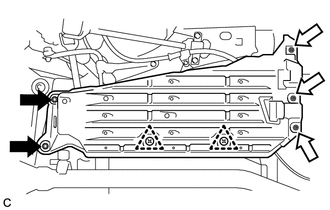

1. Remove the 2 bolts.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

   TEXT IN ILLUSTRATION



   	Bolt
   	Nut (attached to under cover)

2. Disengage the 3 nuts and 2 clips, and remove the No. 1 floor under cover.

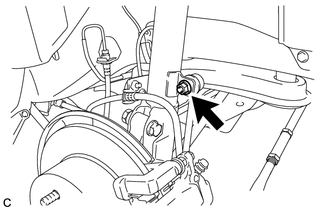

1. Remove the nut and separate the rear stabilizer link assembly LH from the rear shock absorber with coil spring.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

   If the ball joint turns together with the nut, use a 5 mm hexagon wrench to hold the stud.

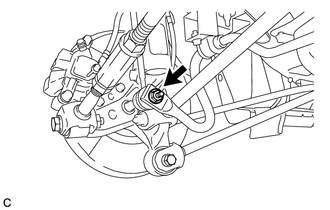

2. Remove the nut and rear stabilizer link assembly LH from the rear stabilizer bar.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

   If the ball joint turns together with the nut, use a 5 mm hexagon wrench to hold the stud.

HINT:

Perform the same procedure as the LH side.

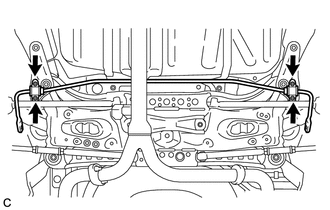

1. Remove the 4 nuts, rear stabilizer bar, 2 rear No. 1 stabilizer bar brackets, 2 rear No. 2 stabilizer bar brackets and 2 rear stabilizer bushings from the rear suspension member sub-assembly.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

1. Remove the 2 rear No. 2 stabilizer bar brackets from the rear stabilizer bar.

1. Remove the 2 rear No. 1 stabilizer bar brackets from the rear stabilizer bar.

1. Remove the 2 rear stabilizer bushings from the rear stabilizer bar.
