Installation [10/2014 - ]: Procedure

  1. INSTALL REAR STABILIZER BUSHING (for LH Side)
    1. Install the rear stabilizer bushing to the outside of the stopper ring on the rear stabilizer bar as shown in the illustration.
      GTY604949Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
      TEXT IN ILLUSTRATION

      *a Stopper Ring
      *b Cutout
      Front of the Vehicle
      Outside of the Vehicle
      NOTE:

      Install the rear stabilizer bushing so that the cutout is facing rearward.

  2. INSTALL REAR STABILIZER BUSHING (for RH Side)

    HINT:

    Perform the same procedure as the LH side.

  3. INSTALL REAR NO. 1 STABILIZER BAR BRACKET (for LH Side)
    1. Install the rear No. 1 stabilizer bar bracket to the rear stabilizer bar.
      GTY315674Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
      TEXT IN ILLUSTRATION

      Front of the Vehicle
      NOTE:

      Be sure to install the rear No. 1 stabilizer bar bracket in the correct direction.

  4. INSTALL REAR NO. 1 STABILIZER BAR BRACKET (for RH Side)

    HINT:

    Perform the same procedure as the LH side.

  5. INSTALL REAR NO. 2 STABILIZER BAR BRACKET (for LH Side)
    1. Install the rear No. 2 stabilizer bar bracket to the rear stabilizer bar.
      GTY316587Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
  6. INSTALL REAR NO. 2 STABILIZER BAR BRACKET (for RH Side)

    HINT:

    Perform the same procedure as the LH side.

  7. INSTALL REAR STABILIZER BAR
    1. Install the rear stabilizer bar with the 4 nuts.

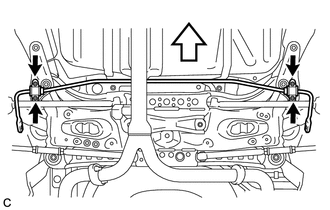

      GTY322075Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
      TEXT IN ILLUSTRATION

      Nut
      Front of the Vehicle

      Torque: 31 N*m (316 kgf*cm, 23 ft.*lbf)

  8. INSTALL REAR STABILIZER LINK ASSEMBLY LH
    1. Install the rear stabilizer link assembly LH to the rear shock absorber with coil spring with the nut.

      Torque: 39 N*m (400 kgf*cm, 29 ft.*lbf)

      If the ball joint turns together with the nut, use a 5 mm hexagon wrench to hold the stud.

    2. Install the rear stabilizer link assembly LH to the rear stabilizer bar with the nut.

      Torque: 39 N*m (400 kgf*cm, 29 ft.*lbf)

      If the ball joint turns together with the nut, use a 5 mm hexagon wrench to hold the stud.

  9. INSTALL REAR STABILIZER LINK ASSEMBLY RH

    HINT:

    Perform the same procedure as the LH side.

  10. INSTALL NO. 2 FLOOR UNDER COVER
    1. Install the No. 2 floor under cover with the 2 bolts, 3 nuts and 2 clips.

      Bolt

      Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

      Nut

      Torque: 4.0 N*m (41 kgf*cm, 35 in.*lbf)

  11. INSTALL NO. 1 FLOOR UNDER COVER
    1. Install the No. 1 floor under cover with the 2 bolts, 3 nuts and 2 clips.

      Bolt

      Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

      Nut

      Torque: 4.0 N*m (41 kgf*cm, 35 in.*lbf)

  12. INSTALL REAR WHEELS

    Torque: 103 N*m (1049 kgf*cm, 76 ft.*lbf)
