Removal [10/2014 - ]: Procedure

(Refer to REMOVAL [10/2014 - ] )

1. Remove the nut and separate the rear stabilizer link assembly from the rear shock absorber with coil spring.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

   If the ball joint turns together with the nut, use a 5 mm hexagon wrench to hold the stud.

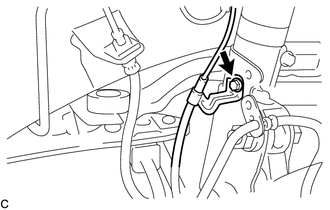

1. Remove the bolt and separate the rear flexible hose from the rear shock absorber with coil spring.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

1. Remove the bolt and separate the skid control sensor wire from the rear shock absorber with coil spring.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

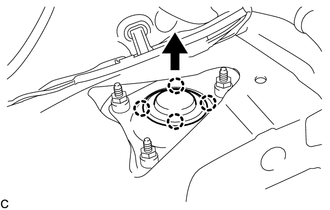

1. Using a screwdriver, disengage the 4 claws and remove the rear No. 1 suspension support cover.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

1. Support the rear axle carrier sub-assembly with a jack using a wooden block.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

   TEXT IN ILLUSTRATION



   *1	Jack
   *2	Wooden Block

   HINT:

   Support the rear axle carrier sub-assembly until reinstallation of the rear shock absorber with coil spring is complete.

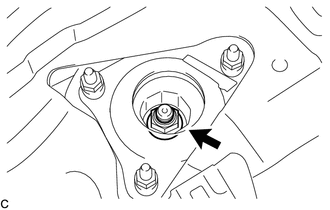

2. Loosen the rear support to rear shock absorber nut of the rear shock absorber assembly.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

   NOTE:

   • Do not remove the rear support to rear shock absorber nut.
   • Loosen the nut only when the rear shock absorber with coil spring needs to be disassembled.

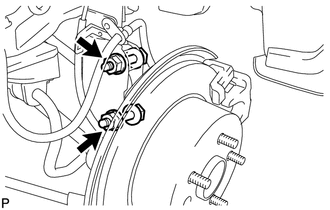

3. Remove the 2 bolts and 2 nuts, and separate the rear shock absorber with coil spring from the rear axle carrier sub-assembly.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

   NOTE:

   When removing the nuts, keep the bolts from rotating.

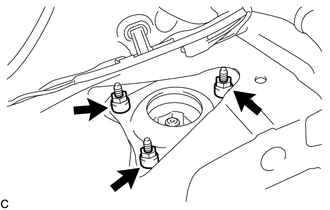

4. Remove the 3 nuts and rear shock absorber with coil spring.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

   NOTE:

   Make sure that the skid control sensor wire and rear flexible hose are disconnected from the rear shock absorber with coil spring.

1. Secure SST in a vise.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

   • SST: 09727-30021
     1. 09727-00010
     2. 09727-00021
     3. 09727-00031
2. Attach the arms of SST to the diameter of the rear coil spring.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

   TEXT IN ILLUSTRATION



   *a	Correct
   *b	Incorrect

   WARNING:

   • Make sure that the rear coil spring is installed so that the distance between the upper and lower arms of SST is at the maximum.
   • Make sure that the claws of the arms are securely attached.
3. Using SST, compress the rear coil spring.
   WARNING:

   • If the rear coil spring bends during compression, immediately stop compression and reinstall SST.
   • Do not excessively compress the spring so that the coils contact each other.
   • Do not use an impact wrench. It will damage SST.
4. Confirm that the rear coil spring is free and remove the rear support to rear shock absorber nut.
   WARNING:

   Do not remove the rear support to rear shock absorber nut when the rear coil spring is not free.
