Components [10/2014 - ]: Illustration

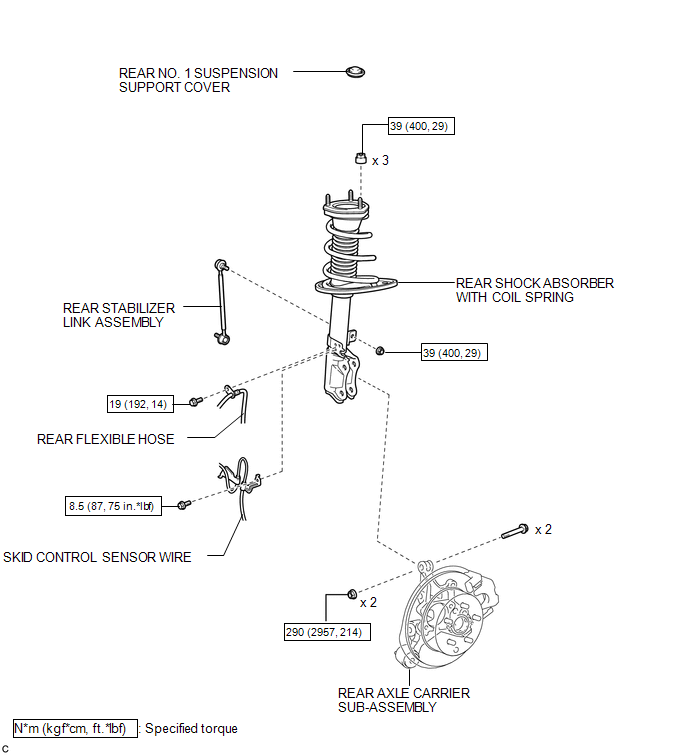

Fig 1: Rear Shock Absorber Replacement Components With Torque Specifications (1 Of 2)
GTY560738Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

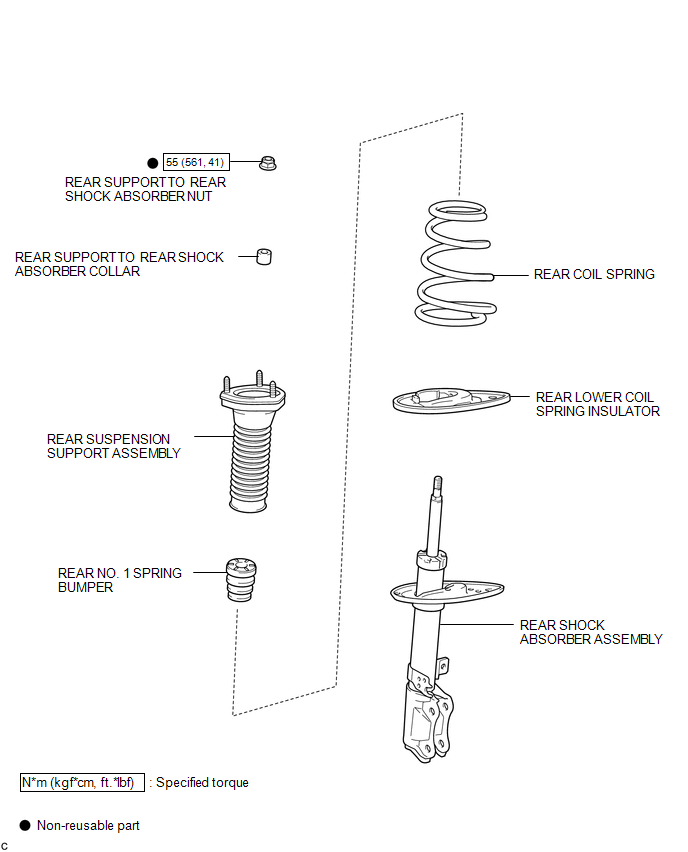

Fig 1: Rear Shock Absorber Replacement Components With Torque Specifications (2 Of 2)
GTY604450Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
