Components [10/2014 - ]: Illustration

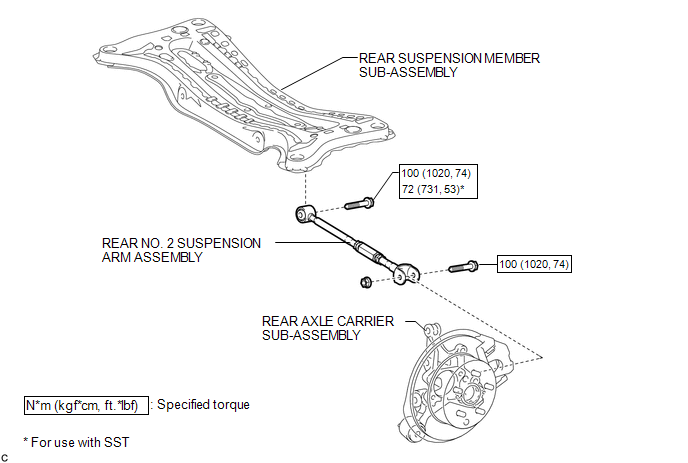

Fig 1: Rear Lower Arm Replacement Components With Torque Specifications (For No. 2 Arm)

GTY382190

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
