Components [10/2014 - ]: Illustration

Fig 1: Rear Lower Arm Replacement Components With Torque Specifications (For No. 1 Arm) (1 Of 2)
GTY380413Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

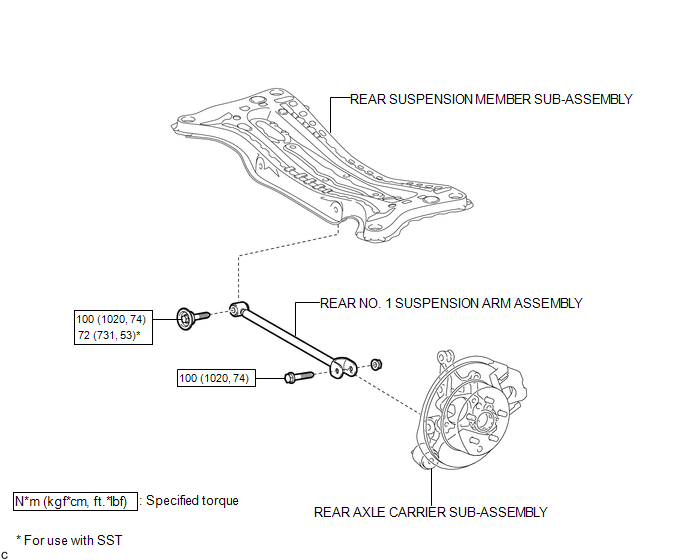

Fig 1: Rear Lower Arm Replacement Components With Torque Specifications (For No. 1 Arm) (2 Of 2)
GTY376834Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
