Removal [10/2014 - 10/2015]: Procedure

  1. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
  2. REMOVE HORN BUTTON ASSEMBLY

    (Refer to REMOVAL [10/2014 - ] )

  3. REMOVE STEERING WHEEL ASSEMBLY
    1. Remove the steering wheel assembly set nut.
      GTY545643Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
      TEXT IN ILLUSTRATION

      *a Matchmark
    2. Put matchmarks on the steering wheel assembly and steering main shaft.
    3. Disconnect each connector from the spiral cable and steering wheel assembly.
    4. Using SST, remove the steering wheel assembly.

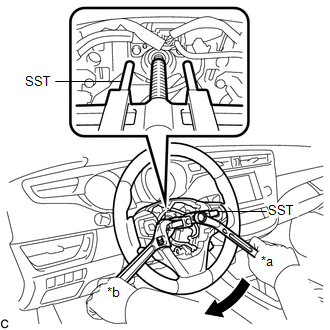

      GTY551241Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
      TEXT IN ILLUSTRATION

      *a Turn
      *b Hold
      • SST: 09950-50013
        1. 09951-05010
        2. 09952-05010
        3. 09953-05020
        4. 09954-05070
      NOTE:

      Apply a small amount of grease to the threads and tip of SST (09953-05020) before use.

  4. REMOVE STEERING PAD SWITCH ASSEMBLY (w/o Shift Paddle Switch)

    See step  2

  5. REMOVE STEERING PAD SWITCH ASSEMBLY (w/ Shift Paddle Switch)

    See step  3

  6. REMOVE SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY) (w/ Shift Paddle Switch)

    Refer to PROCEDURE - Step 5

  7. REMOVE NO. 1 SWITCH WIRE (w/ Shift Paddle Switch)

    Refer to PROCEDURE - Step 6

  8. REMOVE CRUISE CONTROL MAIN SWITCH

    Refer to PROCEDURE - Step 2

  9. REMOVE CRUISE CONTROL SWITCH WIRE
    1. Remove the cruise control switch wire.
  10. REMOVE STEERING SHAKE DAMPER
    1. Remove the 2 screws and steering shake damper from the steering wheel sub-assembly.
      GTY316214Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
