Removal [10/2015 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [10/2014 - ]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

  3. REMOVE FRONT DOOR SCUFF PLATE

    Refer to PROCEDURE - Step 4

  4. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP
    1. Disconnect the front door opening trim weatherstrip.
  5. REMOVE REAR DOOR SCUFF PLATE

    Refer to PROCEDURE - Step 8

  6. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP
    1. Disconnect the rear door opening trim weatherstrip.
  7. REMOVE LAP BELT OUTER ANCHOR COVER
    1. Disengage the 3 claws to remove the lap belt outer anchor cover.
      GTY375389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY
    GTY375388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the bolt to disconnect the floor anchor of the front seat outer belt assembly.
  9. REMOVE CENTER PILLAR LOWER GARNISH

    Refer to PROCEDURE - Step 12

  10. REMOVE CENTER PILLAR UPPER GARNISH

    Refer to PROCEDURE - Step 13

  11. REMOVE FRONT SEAT OUTER BELT ASSEMBLY
    GTY375387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the nut and disconnect the shoulder anchor of the front seat outer belt assembly.
    2. Using a screwdriver, pull out the locking button to release the lock, and disconnect the pretensioner connector as shown in the illustration.

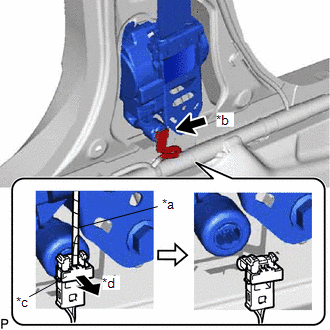

      GTY565225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      *b Pretensioner Connector
      *c Locking Button
      *d Release

      HINT:

      Tape the screwdriver tip before use.

    3. Remove the 2 bolts and front seat outer belt assembly.

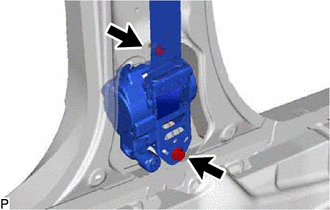

      GTY563913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE FRONT SHOULDER BELT ANCHOR ADJUSTER ASSEMBLY
    1. Remove the 2 bolts.
      GTY375411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide to remove the front shoulder belt anchor adjuster assembly.
