Components [10/2014 - 10/2015]: Illustration

WARNING: This page is about a different car, the 2015 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

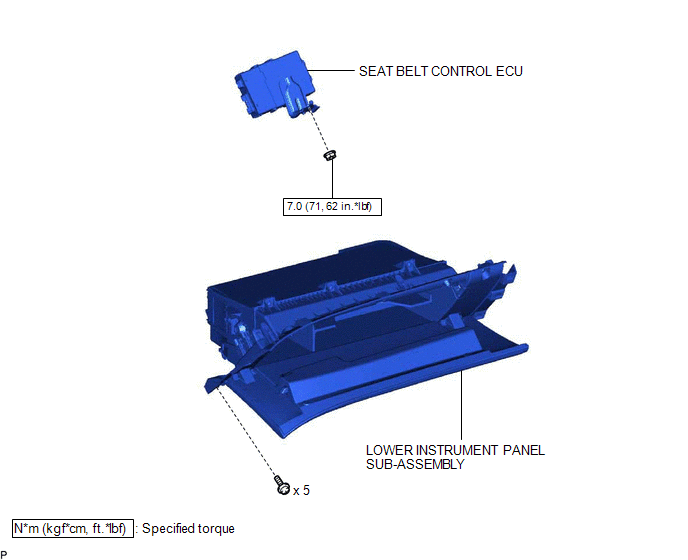

Fig 1: Seat Belt Control ECU Replacement Components With Torque Specifications

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
