Installation [10/2014 - ]: Procedure

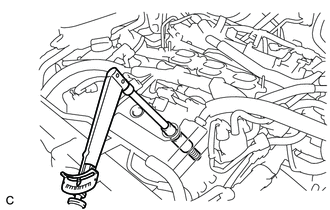

1. Install the 6 spark plugs.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

   Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)

   NOTE:

   If a spark plug has been struck or dropped, replace it.

   HINT:

   • Perform "Inspection After Repair" after replacing a spark plug (Refer to INITIALIZATION [10/2014 - ] ).
   • Install the same parts to their original positions.

1. Install the 6 ignition coil assemblies with the 6 bolts.

   Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

   NOTE:

   If an ignition coil assembly has been struck or dropped, replace it.

   HINT:

   • Perform "Inspection After Repair" after replacing an ignition coil assembly (Refer to INITIALIZATION [10/2014 - ] ).
   • Install the same parts to their original positions.
2. Connect the 6 ignition coil assembly connectors.
3. Connect the 2 wire harness clamps.
4. Install the nut.

   Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

Refer to PROCEDURE - Step 18

(Refer to INSTALLATION [10/2014 - ] )
