Removal [10/2014 - ]: Procedure

  1. REMOVE FRONT EXHAUST PIPE ASSEMBLY

    (Refer to REMOVAL [10/2014 - ] )

  2. REMOVE HEATED OXYGEN SENSOR (for Bank 1 Sensor 2)
    1. Using SST, remove the heated oxygen sensor from the front exhaust pipe assembly.

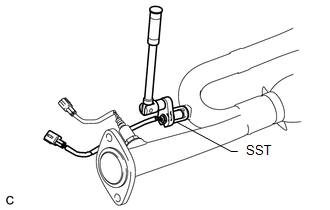

      GTY603484Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
      • SST: 09224-00010
  3. REMOVE HEATED OXYGEN SENSOR (for Bank 2 Sensor 2)
    1. Using SST, remove the heated oxygen sensor from the front exhaust pipe assembly.

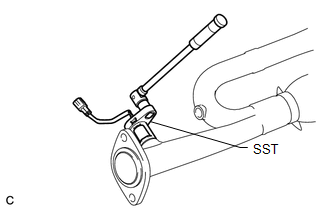

      GTY579300Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
      • SST: 09224-00010
