Removal [10/2014 - ]: Procedure

  1. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 1 and PROCEDURE - Step 1

  2. REMOVE FRONT UPPER CONSOLE PANEL GARNISH

    Refer to PROCEDURE - Step 2 and PROCEDURE - Step 2

  3. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3 and PROCEDURE - Step 3

  4. REMOVE REAR UPPER CONSOLE PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4 and PROCEDURE - Step 4

  5. REMOVE WIRELESS CHARGER MAIN SWITCH
    1. Disconnect the connector.
    2. Disengage the 2 claws to remove the wireless charger main switch.

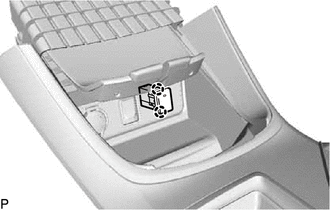

      GTY367392Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
