Removal [10/2014 - ]: Procedure

REMOVE REAR CENTER SEAT ARMREST CUP HOLDER SUB-ASSEMBLY
Refer to PROCEDURE - Step 8 and PROCEDURE - Step 8

REMOVE REAR NO. 1 POWER OUTLET SOCKET ASSEMBLY

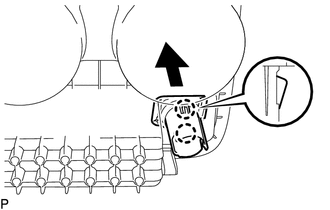

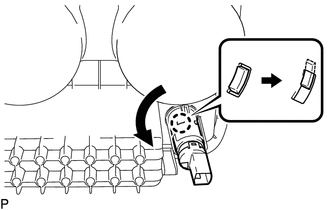

Turn the rear No. 1 power outlet socket assembly as shown in the illustration to disengage the claw.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

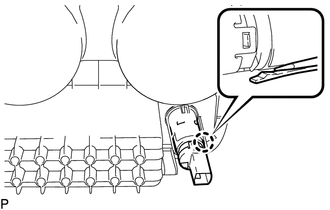

Using a screwdriver, disengage the claw, and then push in the rear No. 1 power outlet socket assembly until the protrusion of the rear No. 1 power outlet socket assembly comes into contact with the rear power outlet socket cover.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

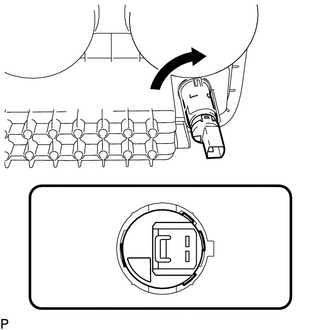

Align the protrusion of the rear No. 1 power outlet socket assembly with the notch of the rear power outlet socket cover as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

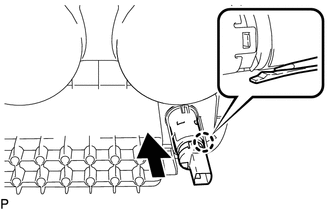

Using a screwdriver, disengage the claw and remove the rear No. 1 power outlet socket assembly from the rear power outlet socket cover.

REMOVE REAR POWER OUTLET SOCKET COVER

Disengage the 2 claws and remove the rear power outlet socket cover.
