Removal [10/2015 - ]: Procedure

  1. REMOVE CONSOLE REAR END PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

  2. REMOVE NO. 2 POWER OUTLET SOCKET ASSEMBLY

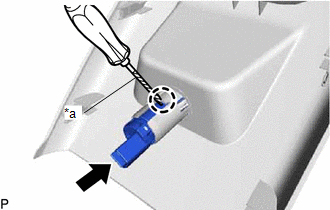

    1. Using a screwdriver with its tip wrapped with protective tape, disengage the claw and remove the No. 2 power outlet socket assembly as shown in the illustration.
      GTY597042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
  3. REMOVE NO. 2 POWER OUTLET SOCKET COVER

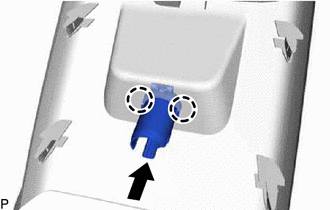

    1. Disengage the 2 claws and remove the No. 2 power outlet socket cover as shown in the illustration.
      GTY577876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
