Removal [10/2014 - 10/2015]: Procedure

  1. REMOVE REAR CONSOLE BOX ASSEMBLY

    (Refer to REMOVAL [10/2014 - 10/2015] )

  2. REMOVE NO. 2 POWER OUTLET SOCKET ASSEMBLY

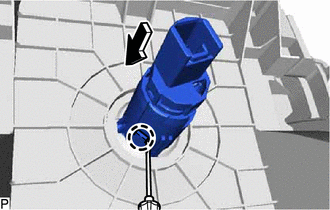

    1. Using a screwdriver, disengage the claw and remove the No. 2 power outlet socket assembly as shown in the illustration.
      GTY367405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE NO. 2 POWER OUTLET SOCKET COVER

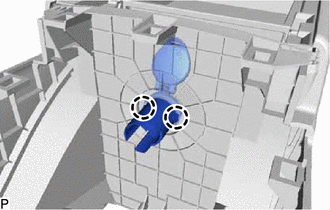

    1. Disengage the 2 claws and remove the No. 2 power outlet socket cover.
      GTY367404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
