REAR POWER OUTLET SOCKET (for Console Box)
>>
Components [10/2015 - ]
>>

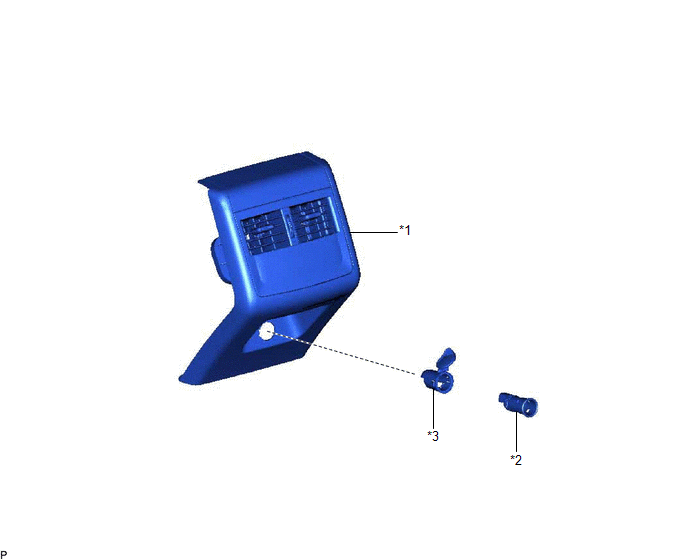

Illustration
Components [10/2015 - ]: Illustration
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
CONSOLE REAR END PANEL SUB-ASSEMBLY
*2
NO. 2 POWER OUTLET SOCKET ASSEMBLY
*3
NO. 2 POWER OUTLET SOCKET COVER
-
-
