Removal [10/2014 - ]: Procedure

  1. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 1 and PROCEDURE - Step 1

  2. REMOVE FRONT UPPER CONSOLE PANEL GARNISH

    Refer to PROCEDURE - Step 2 and PROCEDURE - Step 2

  3. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3 and PROCEDURE - Step 3

  4. REMOVE REAR UPPER CONSOLE PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4 and PROCEDURE - Step 4

  5. REMOVE NO. 1 POWER OUTLET SOCKET ASSEMBLY
    1. Using a screwdriver, disengage the claw and remove the No. 1 power outlet socket assembly as shown in the illustration.

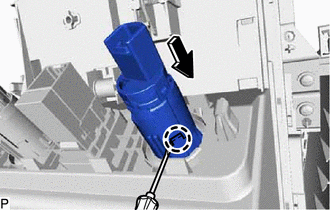

      GTY367394Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the other No. 1 power outlet socket assembly (w/o Wireless Charger Assembly).

  6. REMOVE NO. 1 POWER OUTLET SOCKET COVER
    1. Disengage the 2 claws and remove the No. 1 power outlet socket cover.

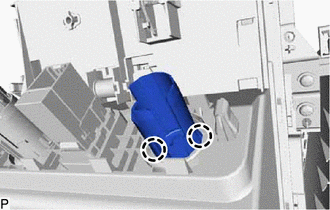

      GTY367391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the other No. 1 power outlet socket assembly (w/o Wireless Charger Assembly).
