Wire And Wire, Ground Points In Engine Compartment: Notes

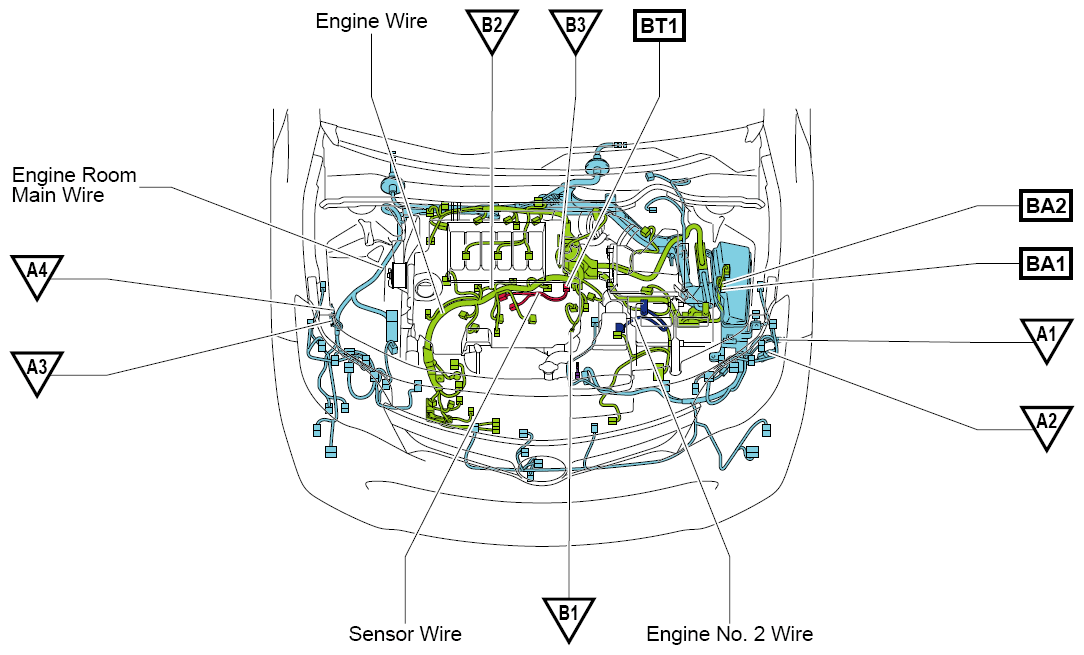

Fig 1: Wire And Wire, Ground Points In Engine Compartment

G12195269

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
