Position Of Parts In Instrument Panel: Notes

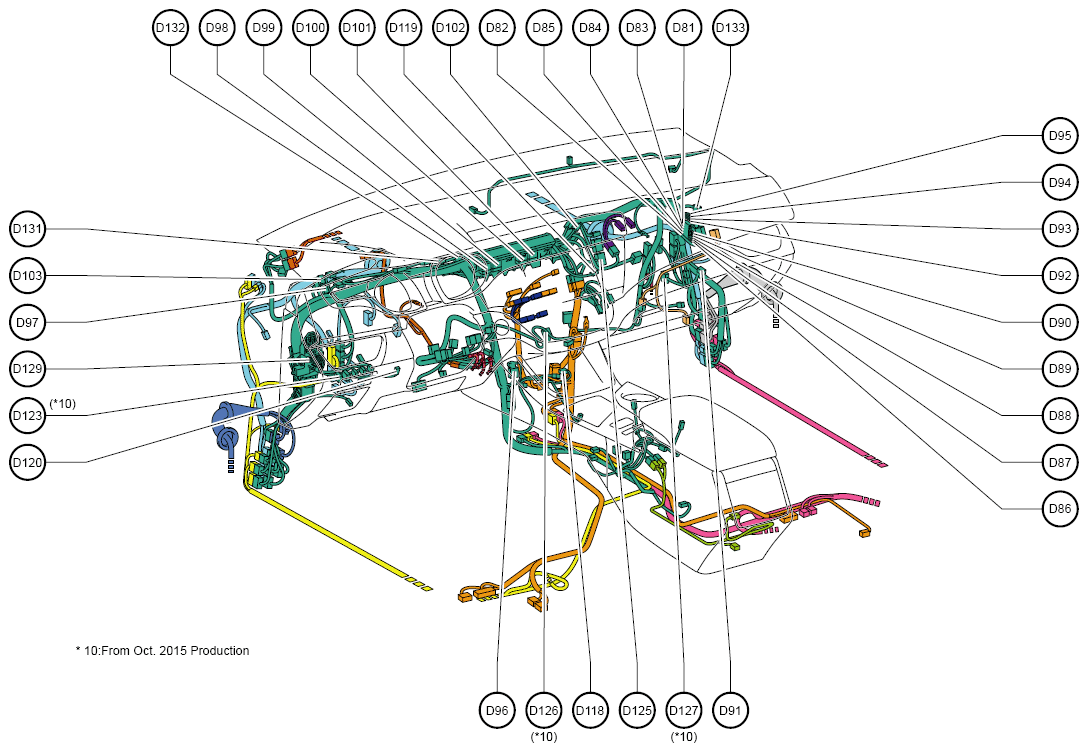

Fig 1: Position Of Parts In Instrument Panel (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

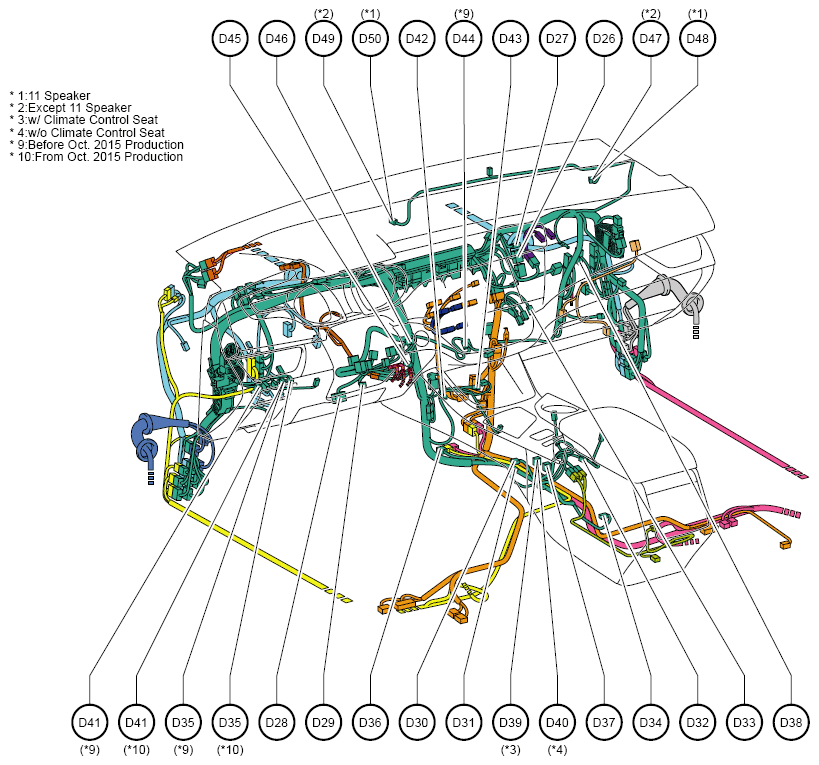

Fig 2: Position Of Parts In Instrument Panel (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

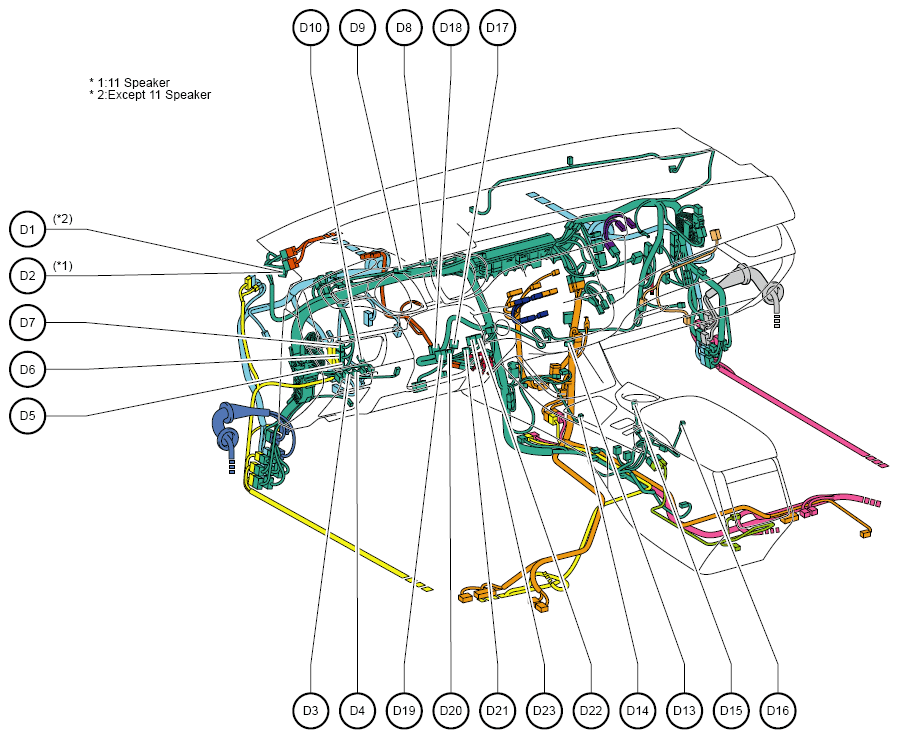

Fig 3: Position Of Parts In Instrument Panel (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

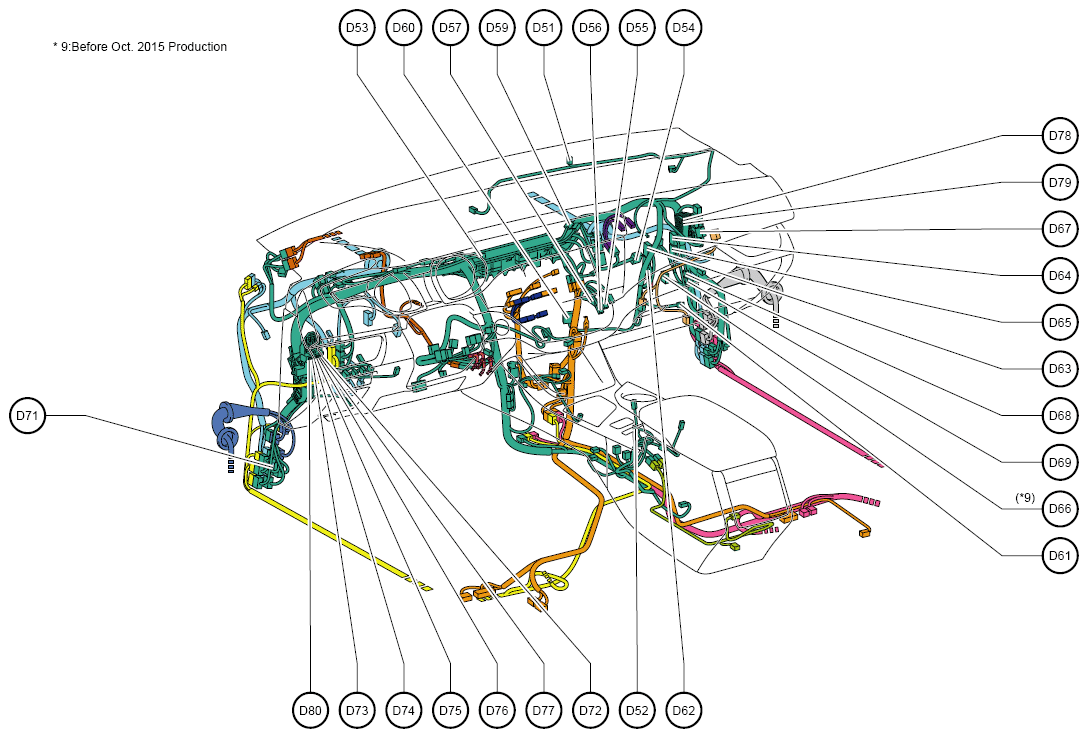

Fig 4: Position Of Parts In Instrument Panel (4 Of 6)

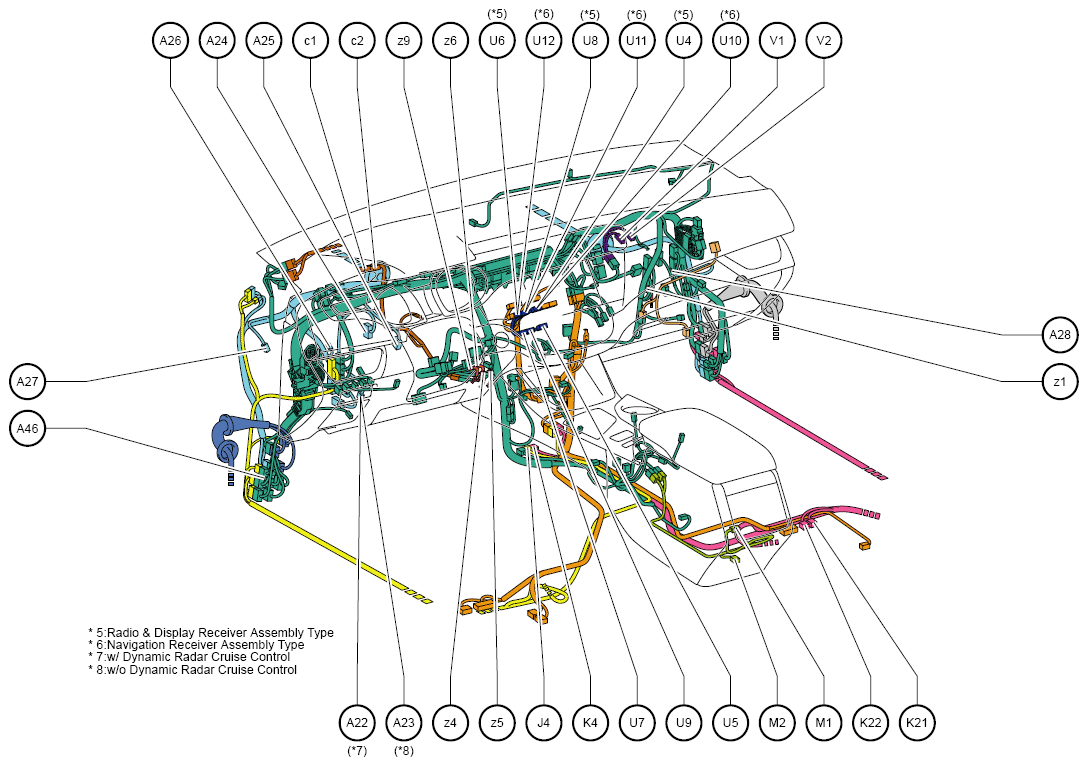

Fig 5: Position Of Parts In Instrument Panel (5 Of 6)

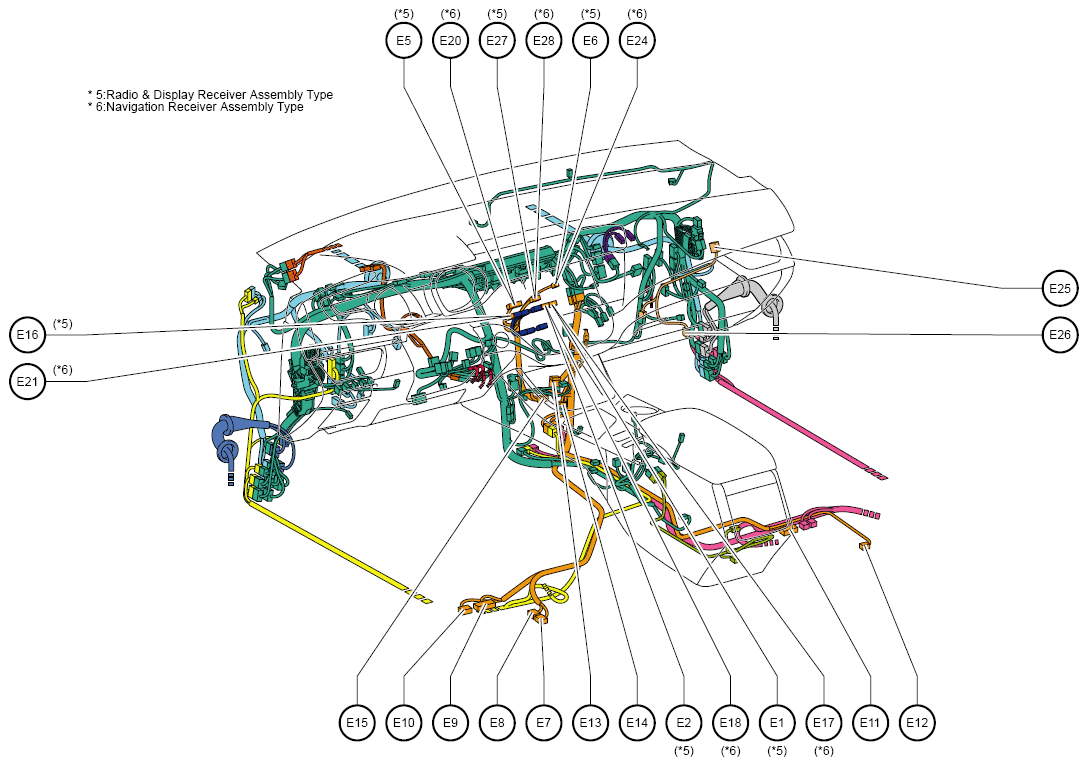

Fig 6: Position Of Parts In Instrument Panel (6 Of 6)
