Removal [10/2014 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work (Refer to PRECAUTION [10/2014 - ] ).

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [10/2014 - 10/2015] or INITIALIZATION [10/2015 - ] ).

  3. REMOVE RADIATOR ASSEMBLY

    (Refer to REMOVAL [10/2014 - ] ).

  4. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 17

  5. REMOVE V-RIBBED BELT

    (Refer to REMOVAL [10/2014 - ] ).

  6. REMOVE GENERATOR ASSEMBLY

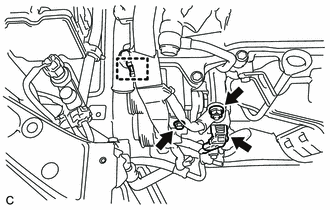

    1. Disconnect the connector.
      GTY318651Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Open the cap, remove the nut and disconnect the wire harness.
    3. Remove the bolt and disconnect the wire harness clamp.

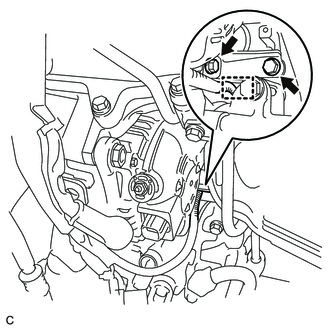

    4. Remove the 2 bolts.
      GTY318648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disconnect the wire harness clamp and remove the generator bracket.

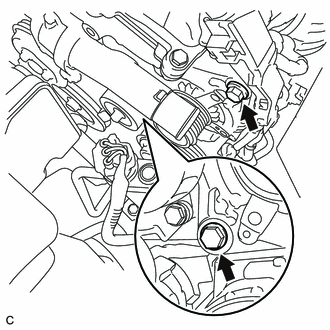

    6. Remove the 2 bolts and generator assembly.
      GTY318647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
