Reassembly [10/2014 - ]: Procedure

HINT:

Fully tighten the rear disc brake bleeder plug after bleeding the system.

1. Apply a light layer of lithium soap base glycol grease to the entire circumference of a new piston seal.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   Lithium Soap Base Glycol Grease

2. Install the piston seal to the rear disc brake cylinder.
   NOTE:

   Securely install the piston seal into the groove of the rear disc brake cylinder.

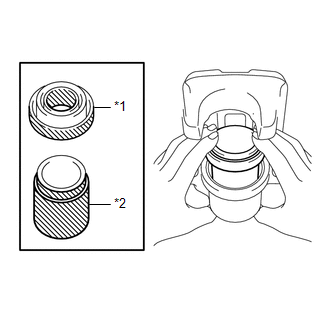

1. Apply a light layer of lithium soap base glycol grease to the entire circumference of a new cylinder boot.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *1	Cylinder Boot
   *2	Rear Disc Brake Piston
   	Lithium Soap Base Glycol Grease

2. Install the cylinder boot to the rear disc brake piston.
3. Apply a light layer of lithium soap base glycol grease to the contact surfaces of the rear disc brake piston, and install it to the rear disc brake cylinder.
   NOTE:

   Do not forcibly install the rear disc brake piston into the rear disc brake cylinder.

1. Install the cylinder boot to the rear disc brake cylinder.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *1	Rear Disc Brake Set Ring
   *2	Cylinder Boot

   NOTE:

   Securely install the cylinder boot to the groove of the rear disc brake cylinder and rear disc brake piston.

2. Using a screwdriver with its tip wrapped with protective tape, install a new rear disc brake piston set ring.
   NOTE:

   • Securely install the rear disc brake piston set ring into the outer groove of the cylinder boot.
   • Do not damage the cylinder boot.
